Name: Industrial Din-Rail Layer 2 Managed Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

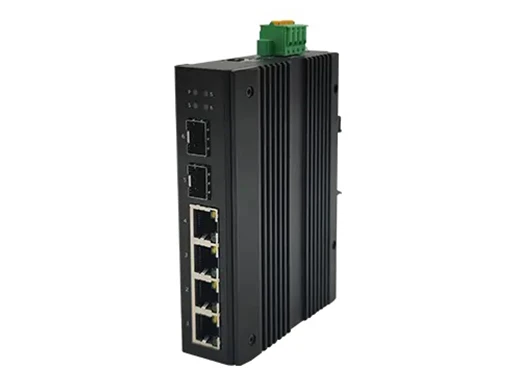

Industrial Din-Rail Layer 2 Managed Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP

IDSL2M-02S04G-L

IDSL2M-02S04G-L industrial managed Ethernet switch with 4×Gigabit RJ45 and 2×SFP fiber ports, ERPS <20ms recovery, VLAN, QoS, SNMP, IPv6 management, ensuring reliable, secure industrial network performance.

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSL2M-02S04G-L is a highly reliable managed industrial Ethernet switch equipped with 4-port 10/100/1000-T and 2-port 1000Base-X fiber optical interfaces. It supports ERPS redundant network functionality, with a self-recovery mechanism of less than 20ms under full load, ensuring a dependable Ethernet network. This allows you to implement a resilient ring topology for backup solutions. The switch supports Web/SNMP/Telnet management, with key managed features such as QoS, VLAN, IGMP, port mirroring, 802.1X, LLDP, fiber transceiver DDM, and IPv6 management, among others.

It is a cost-effective and easy-to-use solution, offering essential industrial Ethernet networking functions, providing a wide power input range of 12-58VDC, a redundant power design with polarity reverse protection, and a robust IP40-rated fan-less housing suitable for DIN rail installation. With an operating temperature range from -40℃~+75℃and high-level EMI/EMC protection, it is perfect for demanding environments. The DIN rail-managed Ethernet switch is the ideal choice for industries such as heavy manufacturing, transportation, oil & gas, chemical processing, IP surveillance, and automation, where reliability and performance are crucial in harsh environmental conditions.

Features

4x10/100/1000Base-T RJ45 ports, 2x1000Base-X SFP ports
DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
Support Layer 2 management function: VLAN/Port Mirroring/IGMP/QoS/LLDP/802.1X/Fiber transceiver DDM IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time≤20ms
Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40℃~+75℃

Model No.	IDSL2M-02S04G-L
Interface	Fiber ports		Copper RJ45 ports
	2		4
Ethernet Standard	4x10/100/1000Base-T RJ45 2x100/1000Base-X SFP
Management Port	1xRJ45 Console
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x flow control and back pressure IEEE 802.1D spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1Q VLAN tagging ITU-T G.8032 ERPS IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3ad LACP
LED Indicators
P(Power Indicator)	Off: the device is power off or failed Off: the device is power off or failed
S(System Status Indicator)	Blinking: device initialization On: device on normal operation
1-4 (Copper Ports)	Green	Yellow
	Off: ports link down	Off: port speed on 10/100M
	On: ports link up	On: port speed on 1000M
	Blinking: data on TX/RX
5-6 (Fiber Ports) Green	Off: ports link down On: ports link up Blinking: data on TX/RX
Power Parameter
Input Voltage	12-58VDC, redundant power input
Input Current	0.5A Max
Total Consumption	Full loading≤6W

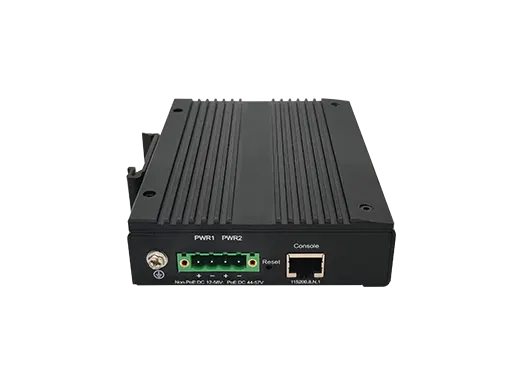

Connector	Removable 4-pin terminal block
Reverse Polarity Protection	Support
Over-voltage Protection	Support
Layer 2 Function
Port Aggregation	Support static aggregation Support dynamic aggregation
Port features	Support IEEE802.3x flow control Support Port traffic statistics Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
Port Mirroring	Support many to one port mirroring
Ring Network Protocol	Support STP RSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms
Multicast	IGMP V1, V2, V3 IGMP snooping
QoS	Ingress Port-based Rate-limit Egress Port-based Rate-limit
Security Features	Support 802.1x, port authentication, MAC authentication, RADIUS service Support port isolation
Management and Maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Slog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support TFTP, web upgrading
Switching Features
Switching Capacity	12Gbps
Packet forwarding Rate	17.8Mpps
MAC Address Table	8K
VLAN	4K
Buffer	1M bit
Forwarding Delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Mechanical Structure
Case Protection	IP40

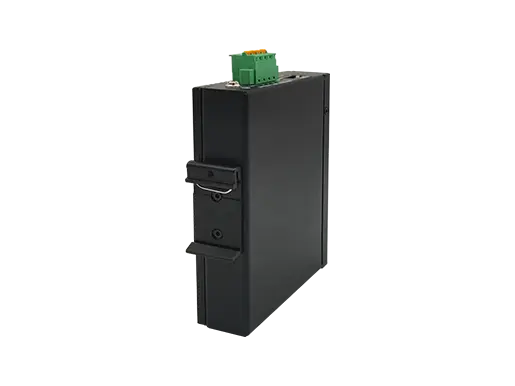

Installation Method	Din-rail

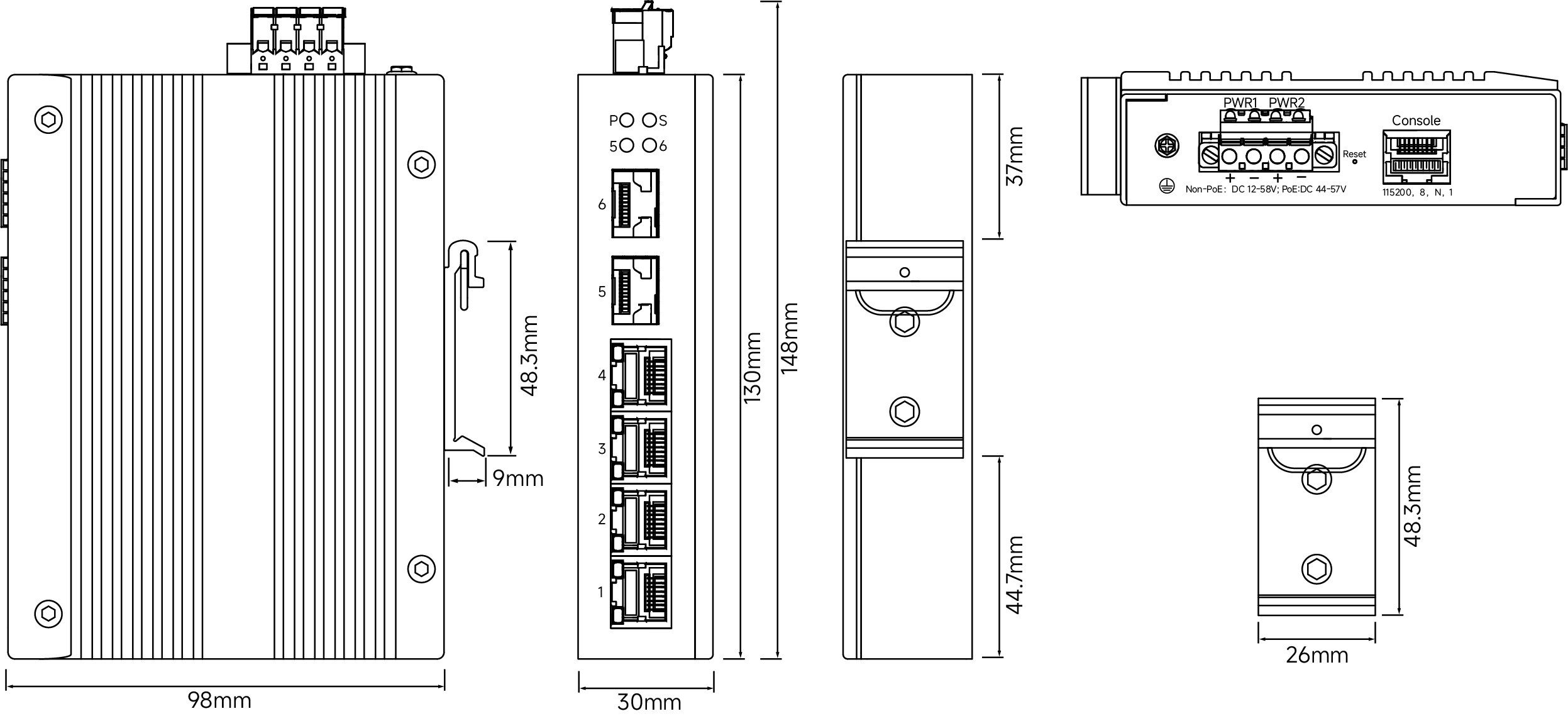

Dimension(WDH)mm	30x98x130mm
Weight	0.56 kg
Operating Environment
Operating Temperature	-40℃~+75℃
Storage/Transportation Temperature	-40℃~+85℃
Relative Humidity	Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH
Industrial Standard	Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2K) (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) DIP: IEC 61000-4-11 Level 3 (10V) ESD: IEC 61000-4-2 Level 4 (8K/15K) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE/UKCA/RoHS/REACH/FCC
Warranty	3 years
