Revolutionizing 5G Fronthaul: The Semi-Active WDM Solution for Cost-Effective, Scalable Networks

The demand for high-capacity, low-latency networks is at an all-time high, driven by the rollout of 5G technology. As 5G networks continue to expand, fronthaul solutions play a critical role in ensuring efficient, flexible, and cost-effective data transmission. The semi-active wavelength division multiplexing (WDM) fronthaul solution emerges as an innovative and optimized choice, offering a balance between cost efficiency and high-performance capacity. Combining the benefits of both passive and active devices, semi-active WDM solutions deliver the scalability, flexibility, and reliability that 5G networks demand.

What is Semi-Active WDM Fronthaul?

A semi-active WDM fronthaul solution is a hybrid transmission technology that integrates both passive and active components to optimize fiber optic resources in 5G radio access networks (RANs). Unlike traditional fronthaul solutions, which rely on a fully passive or fully active architecture, this hybrid model leverages the strengths of each approach, providing enhanced flexibility, scalability, and cost-effectiveness.

l Passive Devices: These include wavelength division multiplexers (WDMs) and optical couplers, which do not require external power.

l Active Devices: These involve optical switches, amplifiers, and monitoring systems that require power but enable dynamic control and real-time management of network traffic.

The semi-active WDM fronthaul solution optimizes the use of fiber infrastructure, providing a more efficient and scalable solution to meet the ever-growing bandwidth requirements of modern 5G networks.

Traditional Fronthaul Challenges

In the early stages of 5G deployment, traditional direct-drive fiber solutions were commonly used for fronthaul. However, with the introduction of advanced technologies like Massive MIMO (Multiple Input, Multiple Output) and the increasing demand for higher throughput, these legacy systems face several challenges:

1. Fiber Resource Scarcity: 5G networks often require a large number of optical fibers per access point, leading to increased construction costs and resource wastage.

2. Limited Scalability: Traditional solutions struggle to meet the capacity and performance demands of 5G networks, particularly in highly dense urban areas and C-RAN (Centralized Radio Access Network) environments.

3. Operational and Maintenance Complexity: Managing and maintaining fiber networks with traditional solutions can be resource-intensive and prone to network failures.

These limitations prompted the need for a more flexible, scalable, and cost-efficient solution—enter the semi-active WDM fronthaul system.

Key Benefits of Semi-Active WDM Fronthaul

The semi-active WDM fronthaul solution addresses the limitations of traditional approaches by offering five key advantages that redefine the standards for 5G fronthaul networks:

1. Massive Fiber Resource Savings:

The semi-active WDM system maximizes the use of existing fiber resources, reducing the need for multiple optical fibers. In fact, it can reduce fiber usage by up to 90%, dramatically cutting down on construction and operational costs.

2. Millisecond-Grade Link Protection:

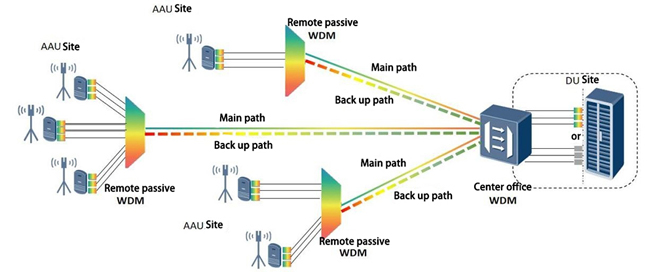

This solution offers real-time, millisecond-level protection and failover capabilities. By utilizing active optical switches and backup paths, it ensures high availability and network resilience, improving reliability by up to 1000 times compared to traditional systems.

3. Enhanced Operation and Maintenance Efficiency:

With intelligent monitoring and fault detection, the semi-active WDM fronthaul solution boosts operational efficiency by up to 300%. Active devices such as optical switches and monitoring systems allow for real-time fault diagnosis, reducing maintenance time and improving overall network uptime.

4. 12-Wavelength Ultra-High Capacity:

By employing WDM technology, the system can transmit up to 12 different optical signals simultaneously over a single fiber, effectively doubling the bandwidth capacity of traditional fronthaul solutions.

5. Full-Scenario Adaptation:

Whether in urban, rural, or remote locations, the semi-active WDM solution is adaptable to diverse geographical conditions and network topologies, providing seamless coverage and efficient bandwidth utilization across all environments.

How Semi-Active WDM Fronthaul Works

Understanding the operating principles of semi-active WDM solutions can help clarify how they provide enhanced performance and reliability for 5G networks.

1. Signal Transmission and Multiplexing:

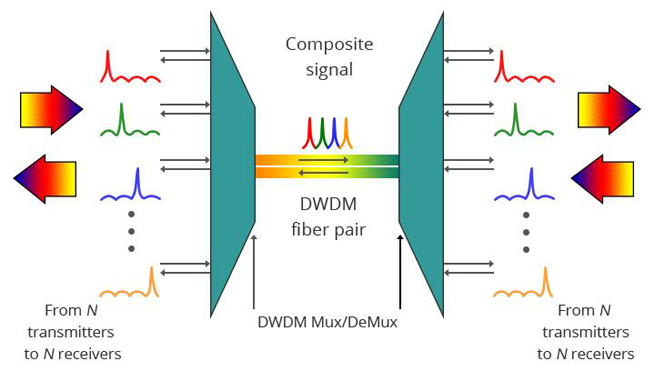

On the RRU/AAU (Remote Radio Unit/Active Antenna Unit) side, multiple optical signals of different wavelengths are combined using a passive WDM multiplexer. These signals represent data streams from various base stations or services. These multiplexed signals are then transmitted over a single optical fiber to the BBU/DU (Baseband Processing Unit/Distributed Unit).

2. Fiber Optic Transmission:

The optical fiber provides a high-speed, low-loss transmission channel, ensuring the reliable delivery of data over long distances with minimal signal degradation.

3. Optical Signal Reception and Demultiplexing:

At the BBU/DU side, the received optical signal is demultiplexed by an optical demultiplexer, separating the individual wavelengths for further processing. This allows each wavelength to be directed to the appropriate processing unit or service.

4. Optical Switching for Dynamic Routing:

The semi-active WDM system uses optical switches to forward demultiplexed signals along predefined routes. These switches allow for dynamic control, making the system more flexible and resilient to failures by rerouting traffic as needed.

5. Real-Time Monitoring and Fault Diagnosis:

Active monitoring devices on the BBU/DU side track key parameters such as optical power and signal quality. These devices provide real-time monitoring data to the network management system, enabling rapid fault detection and resolution. When faults or performance issues occur, the network management system can quickly identify the location of the problem and initiate appropriate maintenance actions.

A Game-Changer for 5G Fronthaul

The semi-active WDM fronthaul solution is poised to become a cornerstone technology for the next generation of 5G networks. By addressing the challenges of fiber resource scarcity, scalability, and operational complexity, this solution offers a cost-effective and reliable means of delivering high-performance connectivity in both urban and rural environments.

With its blend of passive and active components, the semi-active WDM solution enhances network flexibility, improves fault tolerance, and optimizes capacity, providing the ideal infrastructure for high-speed 5G deployments. As 5G continues to evolve, the semi-active WDM solution stands as a crucial enabler of efficient, scalable, and sustainable network architectures.
