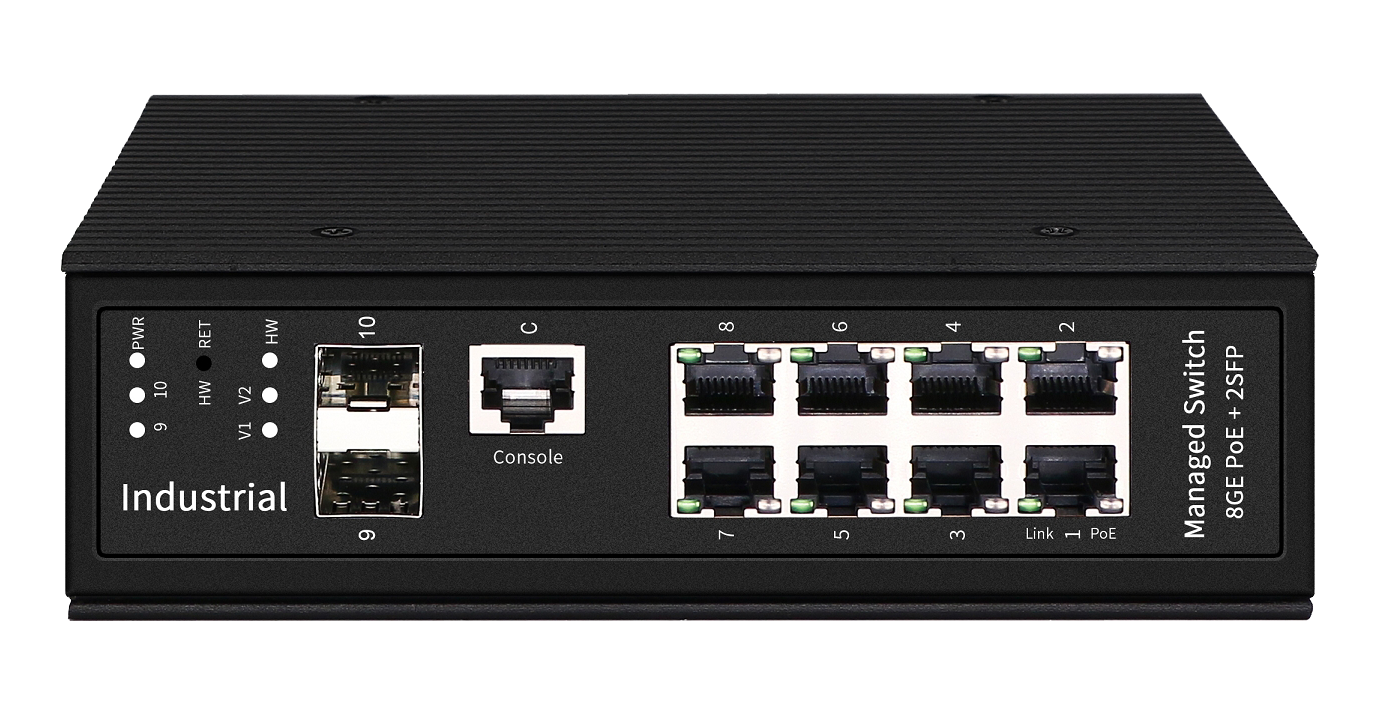

Industrial Din-Rail Managed PoE Switch 8x10/100/1000M RJ45, 2x1000M SFP Port 1 support BT PoE (single port power Max. 90w)

Downlink Port

Port 1 support BT PoE (single port power MAX 90W)

Port 2-8 support AT PoE

Uplink Port

2*1000M SFP

Console Port

1

Reset Key

1

Power Input

2 group of independent power input

SW: DC12-57V

PoE: DC37-57V

Network Protocol

IEEE 802.3x

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q ,IEEE 802.3q/p

IEEE 802.1w,IEEE 802.1d ,IEEE 802.1S

IEEE 802.3z 1000BASE-X

STP(Spanning Tree Protocol)

RSTP/MSTP( Rapid Spanning Tree Protocol)

EPPS ring network protocol

EAPS ring network protocol

Port Specification

1-8 port 10/100/1000BaseT（X）auto detection,AUTO-MDI/MDI-X

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

56Gbps

Packet Forwarding

14.44Mpps

MAC

8K

Buffer

4.1M

Transmission Distance

10BASE-T:Cat3,4,5 UTP(≤250 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or

10μm SMF(2m~5000m)

BIDI supported

FLASH

16M

RAM

128M

LED Indicator

9-10:(SFP LED)

PoE Port 1-8（Green=48V）;Link (Green=Link LED）

PWR:( Power/system LED)

V1:(Master power LED)

V2:(Slave power LED)

HW:(Ring network ON LED)

Power Consumption

Standby power consumption≤5W;

Network Full-load power consumption≤15W;

Full load power consumption≤360W

Operating Temperature/Humidity

-40～+80°C;10%～90% RH No coagulation

Storage Temperature/Humidity

-40～+85°C;5%～95% RH No coagulation

Lightning Protection Level

6KV 8/20us;8KV ESD

IP40

Product Size(L*W*H)

160*130*45mm

N.W(kg)

1kg

Installation

DIN guide rail type(additional wall hangers)

Certificate

CE mark, commercial;CE/LVD EN60950
FCC Part 15 Class B;RoHS

Warranty

Whole device for 1 year (Accessories not included)

Software Function

The followings are main functions not included in all the functions. Please contact with us for more other information! We support software development for customization requirement

Monitoring Platform

Quick formation of ring network

System temperature monitoring and alarm

External temperature and humidity monitoring and alarm

Input power monitoring and alarm

System each channel key voltage monitoring and alarm

System total current,total power monitoring and alarm

All-Port network monitoring and alarm

Support one group input and output signal monitoring and alarm

Network Protocol

IEEE 802.3x

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z

IEEE 802.3ad

IEEE 802.3q,IEEE 802.3q/p

IEEE 802.1w,IEEE 802.1d,IEEE 802.1S,IEEE 802.1X

MAC

Support 16K MAC address,auto aging and learning

VLAN Configuration

Support port-based VLAN

Up to 4096 VLANs

Support Voice VLAN,can configure Qos for voice data

802.1Q

Spanning Tree

STP(Spanning tree protocol)

RSTP/MSTP(Rapid spanning tree protocol)

EPPS/EAPS(Ring network protocol)

802.1x

Port Aggregation

Support 8 groups of aggregation,each group support up to 8 ports;

Port Mirroring

Support many-to-one port mirroring

Loop Guard

Support loop protection, real-time detection, quick alram, concise location, Intelligent blocking, automatic recovery

Port Isolation

Support downlink ports isolate from each other and communicate with uplink port as well

Flow Control

Half duplex based on Back pressure;

Full duplex based on PAUSE frame

Speed Limitation

Bandwidth management based on port input and output

Multicast Control

IGMPv1/2/3 and MLDv1/2 Snooping

GMRP protocol registration

Multicast address management, multicast VLAN, multicast routing port, static multicast address

DHCP

DHCP Snooping

Storm Suppression

Support unknown unicast,multicast,unknown multicas,broadcast type storm suppression

Storm suppression based on bandwidth adjustment and storm filtering

Security

Support User port+IP address+MAC address

ACL based on IP, MAC

Support security properties of number of MAC address based on port

QOS

802.1p port queue priority algorithm

Cos/Tos,QOS remark

WRR(Weighted Round Robin), weighted priority rotation algorithm

WRR,SP,WFQ priority scheduling modes

Cable Sequence

Auto-MDIX; auto detection on straight-through and cross-over cable

Negotiation Mode

Port support auto negotiation function(self-negotiation transmission rate and duplex mode)

System Maintenance

Upgrade package upload

System log viewing

WEB recovery factory configuration

PoE Function

(Only for PoE Models)

Port switch

Schedule arrangement, timing switch

Voltage, current, power display

System total power display and configuration

PoEdog:support auto reset, timing reset and ip binding reset when device failed

Port power configuration(AF.AT HiPoE.BT)

Indication of over power

Port PoE type configuration(48V/24V power supplying)

Network Management

WEB interface management

CLI management based on Telnet、TFTIP、Console

SNMP V1/V2/V3 management

RMONV1/V2 management

RMON management

IDSL3LR-02S08GHP-S

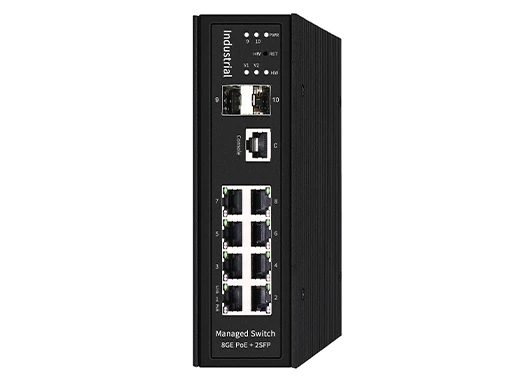

Industrial Din-Rail Managed PoE Switch

8x10/100/1000M RJ45, 2x1000M SFP

Port 1 support BT PoE (single port power Max. 90w)
