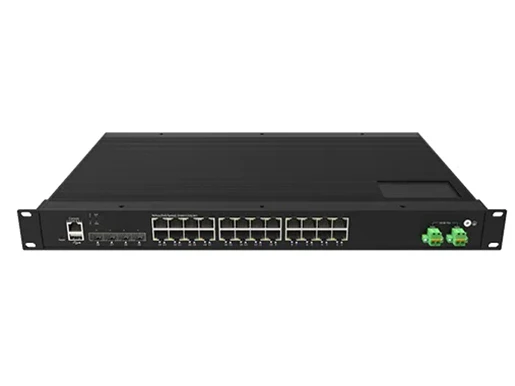

24*10/100/1000Base-T + 4*1G/2.5/10GBase-X SFP+ L3 Managed Industrial Rack-mount PoE Switch

Interface

Fiber ports

Copper RJ45 ports

4

24

Ethernet

24*10/100/1000Base-T RJ45 PoE

4*1G/2.5G/10GBase-X SFP+

Management Port

1*RJ45 Console port (115200,8,N,1)，1*USB 2.0 for configuration and firmware update

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

IEEE802.3x Flow Control and Back Pressure

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1Q VLAN

ITU-T G.8032 ERPS

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP

IEEE802.3af PoE

IEEE802.3at PoE+

LED Indicators

P (Power Indicator)Off: the device is power off or failed; On: the device power on is normal

S (System Status Indicator)

Blinking: device initialization; On: device on normal operation

USB (USB Status Indicator) Green

Off: USB flash drive not insert or not detected by device

On: USB flash drive is detected by device

Blinking: the device is reading and writing the data from USB flash drive

ALM (Fault Status Indicator) Red

Off: Device on normal working state; On: Fault alarm

1-24 (Copper Ports Indicators) Green

Off: ports link down; On: ports link up; Blinking: data on TX/RX

1-24 (PoE Status Indicators) Yellow

Off: PoE not working; On: PoE working

25-28 (Fiber Ports Indicators) Green

Off: ports link down; On: ports link up; Blinking: data on TX/RX

Power Parameter

Input Voltage44-57VDC(802.3af); 52-57VDC(802.3at); redundant power input

Input Current

9A DC input Max

Total Power Consumption

Full loading without PoE≤32W; PoE power budget ≤ 370W

Connector

Removable 2*2-pin terminal block

Reverse Polarity Protection

Support

Over-Voltage Protection

Support

Over-Current Protection

Support

Layer 2 Functions

Port AggregationSupport GE port aggregation

Support 2.5GE aggregation

Support static aggregation

Support LACP dynamic aggregation

Up to 64 aggregation groups and up to 8 ports per group

Port Features

Support IEEE802.3x flow control,

Support interface counters,

Support port isolation,

Port mirroring (One-to-One, Many-to-One)

Support loop detection (Port-based; VLAN-based)

Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast)

Mac-Address Table Management

Support static Mac-address management

Support dynamic Mac-address Management

Support filtering Mac-address

Support MAC limit based on port and VLAN

Support MAC flapping based on port and VLAN

VLAN

Support access mode; Support trunk mode; Support hybrid mode

VLAN Classification

Mac Based VLAN; IP Based VLAN; Protocol Based VLAN

GVRP

Normal mode; Fixed mode; Forbidden mode

QinQ

Port-based QinQ

VLAN-based QinQ (VLAN-stacking; VLAN-mapping)

Flow-based QinQ

LLDP

LLDP (Link Layer Discovery Protocol)

Ring Network Protocol

Support IEEE802.1D-STP

Support IEEE802.1W-RSTP

Support IEEE802.1S-MSTP

Support G.8032 ERPS protocol, single ring, sub-Ring and major ring

Recovery time ≤20ms

L2 Multicast

IGMP SnoopingSupport IGMP snooping

Group Address

Support group address

Security Functions

ACLIP Standard ACL

MAC extend ACL

IP extend ACL

IPv6 ACL

QoS

Support QoS Class, remarking

Support SP, WRR queue scheduling

Ingress port-based rate-limit

Egress port-based rate-limit

Support policy-based QoS

802.1x

Port access control

Mac-address access control

RADIUS server

Port-Security

Port-security

IP Source Guard

IP Port/MAC binding

ARP-check

Support ARP-check and ARP packet filtering for illegal users

Access Control

Support Telnet/SSH/HTTP/HTTPS user access control

Management & Maintenance Functions

User ManagementSupport password protection

Support user authorization management

SNMP

Supporting SNMP V1/V2C/V3 version

Web Management

Web Management

Support HTTP V1.1

Support HTTPS

CLI Management

Console/Telnet command line management

RMON

Support RMON (Remote Monitoring) alarm

Firmware Upgrade

Firmware upgrade

Fault Detection

Ping/Tracerout

Dying gasp

Support optical transceiver DDM function

Cable Detection

Support copper port cable detection

PoE Management

Support 802.3af/802.3at

Support PD watchdog

Support PoE priority management

Support Max PoE power configuration for each port

Support alarm waterline configuration

Support reserved power configuration

NTP

Network Time Protocol

Syslog/Debug

Syslog/Debug

Syslog sends to three servers

Configuration Import/Export

Support FTP/TFTP remote import/export

Support USB import/export

Dual Partition Management

Support dual partition switching

Application Protocol Functions

DHCP SnoopingDHCP snooping trust port

Support remote-id/circuit-id configuration

DHCP option-82

DHCP Client

Support DHCP client

Telnet Server

Support telnet server

Telnet Client

Support telnet client

SSH Server

Support SSH server

TACACS

Support TACACS (the terminal access controller accesses the control system)

sflow

Support network traffic analysis

TFTP

Support TFTP Client

Layer 3 Functions

ARPARP table aging

DHCP Server

IPv4 / IPv6Static routing

ECMP

Support ECMP (Equal-cost multi-path routing)

Support the configuration of ECMP Max next-hop

Support capacity balanced configuration

Route Policy

IPv4 prefix-list

VRRP

Virtual Router Redundancy Protocol

Routing Protocol Specification

RIPRIPv1/v2

OSPFv2

OSPFv2

BGP4

BGP4

BGP Support Routing Recursive ECMP

Support to view the number of neighbors and up/down state

IS-IS

IS-ISv4

Routing Entry

13K

Switching Features

Switching Capacity128Gbps

Packet Forwarding Rate

190.4Mpps

MAC Address Table

16K

VLAN

4K

Buffer

12Mbit

Forwarding Delay

<5us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Mechanical Structure

Case ProtectionIP40

Installation Method

Rack mountable

Dimension (W x D x H)

440*45*280 mm

Weight

5.3kg

Operating Environment

Operating Temperature-40°C~+ 75°C

Storage Temperature

-40°C~+ 85°C

Relative Humidity

Operation humidity: 10%-90%RH; Storage humidity: 5%-95%RH

Industrial Standard

EMSSurge protection of power: IEC 61000-4-5 DC: 6KV/6KV (8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  6KV/2KV（10/700us）

RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m

EFT: IEC 61000-4-4 4K/2K

CS: IEC 61000-4-6 10V

ESD: IEC 61000-4-2

Contact: 8K; Air: 15K

EMI

FCC Part 15B Class A

Shock

IEC 60068-2-27

Free Fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Certification

CCC/CE/UKCA/RoHS/REACH/FCC

MTBF

>200,000 hours

Warranty

5 years

IRSL3M-04X24GP-2DU-L

Rack-mount Industrial L3 Managed Ethernet switch

24x10/100/1000M RJ45 PoE ports

Uplink 4X1G/2.5G/10G SFP+ ports

Dual DC44-57V input;
