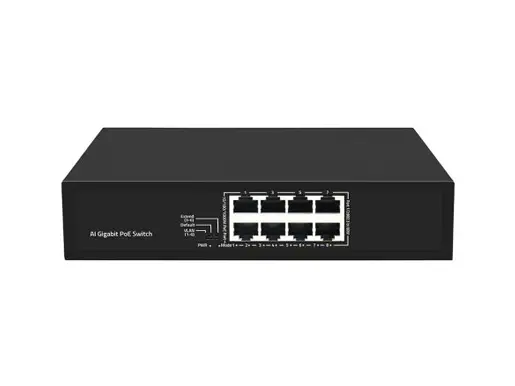

Name: 8 Port Gigabit AI PoE Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

This 8 Port Gigabit AI Ethernet PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, incorporates the latest AI functions, equipped with two types of port priorities, PoE priority and Network priority, along with one-key smart functionality. This advanced AI PoE switch is designed to streamline network management and enhance efficiency. The PoE port meets the 802.3af or 802.3at standard, and at the same time, port 1/2 supports HiPoE with power reaching up to 60W. The built-in power consumption indicators allow users to easily monitor the overall power usage of the device. This series of PoE switches ensures seamless connectivity for 10/100/1000M Ethernet, while the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards. For non-PoE devices, the switch intelligently detects and ensures only data is transferred, making it a reliable and intelligent solution for modern networking needs.

Product Name	8 port 10/100/1000M AI PoE Switch
Model	LA-SWAI-G0008PB-120W
Power	Input: AC 100-240V, 50/60Hz
Ethernet	8*10/100/1000M PoE Port
Switching Capacity	16Gbps
Throughput	11.9Mpps
Packet Buffer	1Mb
MAC Address	8K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Network Protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)



PoE Protocol	IEEE802.3af (15.4W) IEEE802.3at (30W)

Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6




Network Medium	10Base-T: Cat3, 4, 5 or above UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m)


Security Certificate	CE, FCC, RoHS
Working Environment	Working Temperature: -20~50°C Storage Temperature: -40~85°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing Working Height: Maximum10,000 feet Storage heigh: Maximum 10,000 feet





PWR (Power Supply)	Lighting: Powered Un-Light: No Power

Mode (DIP)	Lighting: VLAN Un-Light: Default Flashing: Extend


1-6 Green (Link&Data)	Lighting: Connecting Flashing: Data Transmit Un-Light: Disconnect


DIP Switch	VLAN: Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable Default: Normal mode, all port can communicate with each other, The port AI mode is closed Extend: Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable


Structure Size	Product Dimension (LWH): 20011844mm Package Dimension (LWH): 24519060mm N.W: 0.6kg G.W: 0.9kg



Packing Info	Carton MEAS: 505320402mm Packing Qty: 20units Packing Weight: 19KG


Power Voltage	Input Voltage: AC 100-240 V Power supply: 52V/2.3A

Package List	Switch 1pc Power cord 1pc User manual 1pc Certification 1pc

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.

Ordering Information
LA-SWAI-G0008PB-120W	8 port 10/100/1000M AI PoE Switch, 52V/2.3A

Date	Version	Description			Download
2025-03-13		LA-SWAI-G0008PB-120W
