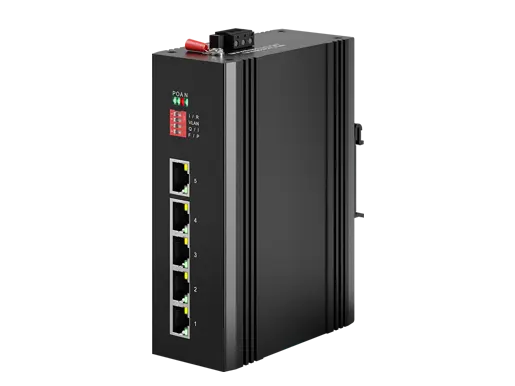

Industrial Din-rail Unmanaged Booster PoE Switch 5x10/100Base-T

Name: Industrial Din-rail Unmanaged Booster PoE Switch 5x10/100Base-T
Brand: Lanao Communication Technology Limited.
Availability: InStock

DSAIM-0005FP-Z6

DSAIM-0005FP-Z6 is a 5-port 10/100Base-TX unmanaged industrial Ethernet switch with POE support. Designed with fan-less heat dissipation, a wide operating temperature range, and a high protection rating, it offers exceptional industrial-grade features like high/low temperature resistance and lightning protection. These attributes enhance the reliability and security of industrial networks, making it ideal for deployment in challenging environments such as rail transit, safe cities, intelligent transportation, and outdoor monitoring.

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

Features

● Input Voltage: DC12-30V (PoE)

● Operating Temperature: -40℃ ~ +75℃

● Shell: IP40 protection, fan-less design

● Test Report: CE, RoHS, FCC

● Anti-static: 8KV-15KV

● MTBF: 100000 Hours

Provider Mode Ports
Fixed Port	5x10/100Base-Tx
Power Interface	Phoenix terminal, dual power supply redundant
Led Indicators	PWR, OPT, NMC, ALM
PoE DIP Instructions
1 I/R	PoE Watchdog
2 VLAN	VLAN Isolation
3 Q/I	Port Isolation
4 F/P	VIP Power Supply & QoS
Cable Type & Transmission Distance
Twisted-Pair	0-100m (CAT5e, CAT6)
Network Topology
Ring Topology	Not support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-30V(PoE)
Total Power Consumption	Full Load<60w(PoE)
PoE Support
PoE Port	1-4
PoE Protocol	802.3af, 802.3at
Pin Assignment	1, 2+/3, 6-
Layer 2 Switching
Switching Capacity	1.4G
Packet Forwarding Rate	0.744Mpps
MAC Address Table	1K
Buffer	512K
Forwarding Delay	<5us
MDX/MIDX	Support
Flow control	Support
Jumbo Frame	Support 2048 bytes
Watchdog	Support
Port Isolation	Support
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+75℃
Relative Humidity	5%~95% (non-condensing)
Thermal Methods	Fan-less, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size (W×H×D)	48x104x143mm
Installation Method	Din-rail
Weight	0.45KG
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level X (6KV/6KV) (8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us)
RS	IEC 61000-4-3 Level 3 (10V/m)
EFI	IEC 61000-4-4 Level 3 (1V/2V)
CS	IEC 61000-4-6 Level 3 (10V/m)
PFMF	IEC 61000-4-8 Level 4 (30A/m)
DIP	IEC 61000-4-11 Level 3 (10V)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Free Fall	0.5m
Certificate
Certificates	CE/FCC/RoHS

Dimension

Dimension of Industrial Din-rail Unmanaged Booster PoE Switch 5x10/100Base-T

Date	Version	Description			Download
2025-03-11		Industrial Din-rail Unmanaged Booster PoE Switch 5x10/100Base-T
