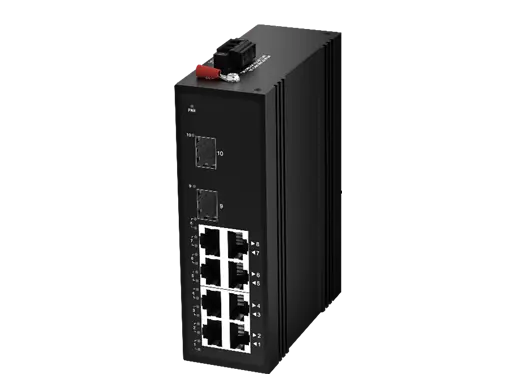

Name: Industrial Ethernet Switch 8x10/100/1000M RJ45 (PoE), Uplink 2x1000M SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Ethernet Switch 8x10/100/1000M RJ45 (PoE), Uplink 2x1000M SFP

IDSM-02S08G-Z4

IDSM-02S08G-Z4 is an industrial ethernet switch with 2x1000M optical ports & 8x10/100/1000M adaptive network ports, and provides excellent industrial-grade qualities such as high/low temperature...

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSM-02S08G-Z4 is an industrial ethernet switch with 2x1000M optical ports & 8x10/100/1000M adaptive network ports, and provides excellent industrial-grade qualities such as high/low temperature resistance and lightning protection through fan-less heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, enhancing the reliability and security of industrial networks. It can also meet the deployment requirements in rail transit, safe cities, intelligent transportation, outdoor monitoring and other harsh environments.

Features
● Input voltage: DC12-58V(non-PoE), DC48-58V(PoE)
● Operating temperature: -40℃~ +75℃
● Casing: IP40 protection level, fan-less design
● Anti-static: 8KV-15KV
● MTBF: 100,000hours

Provider Mode Ports
Fixed Port	8x10/100/1000M RJ45, Uplink 2x1000M SFP
Power Interface	Phoenix Terminal, Dual Power Supply Redundancy
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m(CAT5e, CAT6）
Single-mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Not Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-58V(non-PoE), DC48-58V(PoE)
Total Power Consumption	<5w(non-PoE), <245w (PoE)
PoE Support (Optional)
PoE Ports	1-8
PoE Standard	802.3af, 802.3at
Pin Assignment	1, 2, 3, 6
Layer 2 Switching
Switching Capacity	20G
Packet Forwarding Rate	14.88Mpps
MAC Address Table	16K
Buffer	2M
Forwarding Delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 10KBytes
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+85℃
Relative Humidity	10%~90% non-condensing
Thermal Methods	Fan-less Design, Natural Cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	46x106x143mm
Installation Method	Din-rail
Weight	0.55KG
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Surge Protection of ETH Port	IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
ESD	IEC 61000-4-2 Level 4 (8K/15K）
Certification
Certificates	CE, FCC, RoHS

Dimension

Dimension of Industrial Ethernet Switch 8x10/100/1000M RJ45 (PoE), Uplink 2x1000M SFP

Ordering Information
IDSM-02S08GP-Z4	Din-rail Industrial Unmanaged Switch 2x1000M SFP, 8x10/100/1000M PoE
IDSM-02S08G-Z4	Din-rail Industrial Unmanaged Switch 2x1000M SFP, 8x10/100/1000M RJ45

Date	Version	Description			Download
2025-03-12		Datasheet_Din-rail Industrial Unmanaged Switch 8x1G RJ45, 2x1G SFP, LA-IS4N-G0208(P)_V.1.0 KZ
