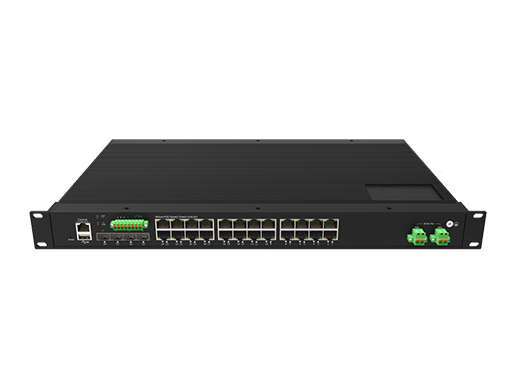

Name: Industrial Rack-mount L3 Managed PoE Switch 24x1G RJ45 PoE+, 4x10G SFP+
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

IRSL3M-04X24GP-2DSU-L is the highly reliable Layer 3 managed industrial PoE switches with 24-port 10/100/1000Base-T PoE and 4-port 1G/2.5G/10GBase-X SFP+. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. With full gigabit downlink and 10G uplink capability, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support DI/DO/RS485, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing & dynamic routing features, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.

It is also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including wide range voltage input 44-57VDC, redundant power design with DC/DC, robust IP40 fan-less housing with rack-mount installation, wide operation temperature from -40°C to 75 °C as well as high-level EMI/EMC capability. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

Features

24*10/100/1000Base-T RJ45 PoE, 4*1G/2.5/10G Base-X SFP+
DC/DC redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Support USB one key configuration and upgrading
DI/DO/RS485 are optional
Layer 3 features: Supports static and dynamic routing, RIP, OSPF, BGP4,ECMP, VRRP
Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
Management and maintenance: IPv4 and IPv6 management,PoE management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and rack-mount hardware design
Operation temperature: -40 °C ~+ 75°C

Model No.	IRSL3M-04X24GP-2DSU-L
Interface	Fiber ports	Copper RJ45 ports
	4	24
Ethernet	2410/100/1000Base-T RJ45 PoE+ (30W per port) 41G/2.5G/10GBase-X SFP+
Management Port	1RJ45 Console port (115200,8,N,1) 1USB 2.0 for configuration and firmware update
Data & Alarm Channel	1 channel RS485 1 channel DI (digital input) 1 channel DO (digital output)
Standard	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE+
LED Indicators
P (Power Indicator)	Off: the device is power off or failed	On: the device power on is normal
S (System Status Indicator)	Blinking: device initialization	On: device on normal operation
USB (USB Status Indicator)	Off: USB flash drive not insert or not detected by device
	On: USB flash drive is detected by device
	Blinking: the device is reading and writing the data from USB flash drive
ALM (Fault Status Indicator) Red	Off: Device on normal working state	On: Fault alarm
1-24 (Copper Ports Indicators) Green	Off: ports link down
	On: ports link up
	Blinking: data on TX/RX
1-24(PoE Status Indicators) Yellow	Off: PoE not working
	On: PoE working
25-28(Fiber Ports Indicators) Green	Off: ports link down
	On: ports link up
	Blinking: data on TX/RX
Power Parameter
Input Voltage	DC44-57V (802.3af) DC52-57V (802.3at) Redundant power input
Input Current	9A DC input Max
Total Power Consumption	Full loading without PoE≤32W PoE power budget ≤ 370W
Connector	Removable 2*2-pin terminal block
Reverse Polarity Protection	Support
Over-Voltage Protection	Support
Over-Current Protection	Support
Layer 2 Functions
Port Aggregation	Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group
Port Features	Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection (Port-based; VLAN-based) Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast)
Mac-Address Table Management	Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
GVRP	Normal mode Fixed mode Forbidden mode
QinQ	Port-based QinQ VLAN-based QinQ (VLAN-stacking; VLAN-mapping) Flow-based QinQ
LLDP	LLDP (Link Layer Discovery Protocol)
Ring Network Protocol	Support IEEE802.1D-STP Support IEEE802.1W-RSTP Support IEEE802.1S-MSTP
	Support G.8032 ERPS protocol，single ring, sub Ring and major ring Recovery time ≤20ms
L2 Multicast
IGMP Snooping	Support IGMP snooping
Group Address	Support group address
Security Functions
ACL	IP Standard ACL MAC extend ACL IP extend ACL IPv6 ACL
QoS	Support QoS Class, remarking Support SP, WRR queue scheduling Ingress port-based rate-limit Egress port-based rate-limit Support policy-based QoS
802.1x	Port access control Mac-address access control RADIUS server
Port-security	Port-security
IP source guard	IP Port/MAC binding
ARP-check	Support ARP-check and ARP packet filtering for illegal users
Access control	Support Telnet/SSH/HTTP/HTTPS user access control
Management & Maintenance Functions
User Management	Support password protection Support user authorization management
SNMP	Supporting SNMP V1/V2C/V3 version
Web Management	Web Management Support HTTP V1.1 Support HTTPS
CLI Management	Console/Telnet command line management
RMON	Support RMON (Remote Monitoring) alarm
Firmware Upgrade	Firmware upgrade
Fault Detection	Ping/Tracerout Dying gasp Support optical transceiver DDM function
Cable Detection	Support copper port cable detection
PoE Management	Support 802.3af/802.3at
PoE Management	Support PD watchdog
PoE Management	Support PoE priority management
PoE Management	Support Max PoE power configuration for each port
PoE Management	Support alarm waterline configuration
PoE Management	Support reserved power configuration
NTP	Network Time Protocol
Syslog/Debug	Syslog/Debug Syslog send to three servers
Configuration Import/Export	Support FTP/TFTP remote import/export Support USB import/export
Dual Partition Management	Support dual partition switching
Application Protocol Functions
DHCP Snooping	DHCP snooping trust port Support remote-id/circuit-id configuration DHCP option-82
DHCP Client	Support DHCP client
Telnet Server	Support telnet server
Telnet Client	Support telnet client
SSH Server	Support SSH server
TACACS	Support TACACS(the terminal access controller accesses the control system)
sflow	Support network traffic analysis
TFTP	Support TFTP Client
Layer 3 Functions
ARP	ARP table aging
DHCP Server
IPv4 / IPv6	Static routing
ECMP	Support ECMP (Equal-cost multi-path routing)
ECMP	Support the configuration of ECMP Max next-hop
ECMP	Support capacity balanced configuration
Route Policy	IPv4 prefix-list
VRRP	Virtual Router Redundancy Protocol
Routing Protocol Specification
RIP	RIPv1/v2
OSPFv2	OSPFv2
BGP4	BGP4
BGP4	BGP Support Routing Recursive ECMP
BGP4	Support to view the number of neighbors and up/down state
IS-IS	IS-ISv4
Routing Entry	13K
Switching Features
Switching Capacity	128Gbps
Packet Forwarding Rate	190.4Mpps
MAC Address Table	16K
VLAN	4K
Buffer	12M bit
Forwarding Delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Mechanical Structure
Case Protection	IP40
Installation Method	Rack mountable
Dimension(WDH)	44045280mm
Weight	5.4kg;
Operating Environment
Operating Temperature	-40°C~+ 75°C
Storage/Transportation Temperature	-40°C~+ 85°C
Relative Humidity	Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH
Industrial Standard
EMS	Surge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV(10/700us) RS:IEC 61000-4-3 80 MHz-1 GHz:10 V/m EFT:IEC 61000-4-4 power 4K, signal 2K CS:IEC 61000-4-6 10V ESD:IEC 61000-4-2 Contact: 8K; Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE/RoHS/FCC
MTBF	＞200,000 hours
Warranty	3 years

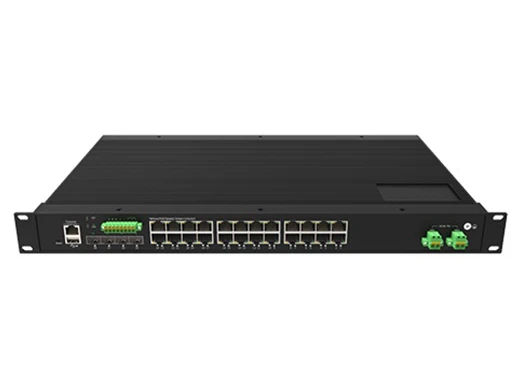

Structure Diagram

P/N

Description

IRSL3M-04X24GP-2DSU-L

Industrial Rack-mount L3 Managed PoE Switch

24x1G RJ45 PoE+, 4x10G SFP+
