Name: IP55 Outdoor Box, with Managed Industrial Switch 4x10G Base-X, 8x10/100/1000 Base-T PoE
Brand: Lanao Communication Technology Limited.
Availability: InStock

IP55 Outdoor Box, with Managed Industrial Switch 4x10G Base-X, 8x10/100/1000 Base-T PoE

OSBL3R-04X08GP-Z

Overview

Specifications

Connectivity Solutions

Models

Resources

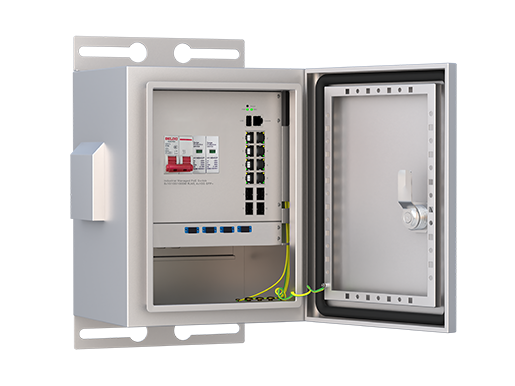

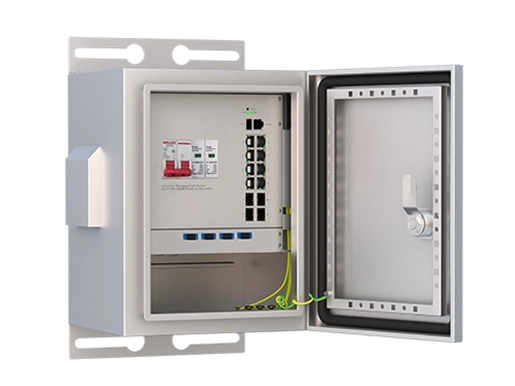

OSBL3R-04X08GP-Z Outdoor PoE Switch Box embedded with managed industrial switch, 4x10G Base-X, 8x10/100/1000 Base-T, it is miniature size with IP55 high protection level. The box provides excellent industrial quality with high/low temperature resistance and lightning protection, which enhances the reliability and safety of networks.

lt can meet the deployment requirements of rail transit, safe city, intelligent transportation, video surveillance and other applications.

Features

Integrated Managed Industrial PoE Switch, 4x10G Base-X, 8x10/100/1000Base-T

Shell: IP55 Waterproof Case

Cooling: Auto Fans Cooling

Working Temp: -40°C~+75°C

Box Internal Power: 300w (for PoE Switch)

Optical Fiber Tray

Surge Protector

Air Breaker

Cabinet
Material	High-quality galvanized sheet, thickness 1.2mm Box mounting ears thickness 1.5mm
Weight	Net weight: 9.9KG, Gross weight: 10.8KG
Lock	Triangle lock
Door	The door has built-in waterproof rubber strips and built-in reinforcing ribs
Bottom Part	The diameter of the cable entry hole at the bottom of the box is 50mm, and there is air inlet hole at bottom of the box (Insert-proof net welded inside)
Fan	AC 220V with temperature control, 3000±10% RFM, air volume 90CFM, 929225mm, line length 300mm
Optical Fiber	4-port SC fiber flange, with 8-core fiber box
Air Breaker	It has short-circuit protection, overload protection and isolation functions and has thermal-magnetic tripping characteristics C-shaped curve(5ln-10ln)
Installation	Pole / Wall installation
Switch
Fixed Port	4x10G Base-X, 8x10/100/1000 Base-T
Management Port	1xRJ45 console port
LED Indicators	PWR, SYS, Link/ACT LED
Power Interface	AC Input
Cable Type & Transmission Distance
Twisted-Pair	0-100m(CAT5e,CAT6）
Single-Mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	AC100-240V, 50/60Hz
Total Power Consumption	< 250w (with PoE)
Voltage Alarm	Support
PoE Support
PoE Ports	1-8 Ports
Pin Assignment	1, 2, 3, 6
PoE Management	Support
Layer 2 Switching
Switching Capacity	128G
Packet Forwarding Rate	95.23Mpps
MAC Address Table	16K
Buffer	12M
Forwarding Delay	<10us
MDI/MDIX	Support
VLAN	4K
GVRP	Support
Protocol VLAN	Support
Voice VLAN	Support
Surveillance VLAN	Support
MAC VLAN	Support
EtherChannel/802.3ad	Support
LACP	Support
Interface Speed	Support
Duplex Mode	Support
Flow Control	Support
Jumbo Frame	Support
DHCP Client	Support
SNTP Client	Support
Port Statistics	Support
Protected Ports	Support
EEE	Support
ERPS (Ethernet Ring Protection Switching)	Support
LLDP	Support
LLDP 802.1 TLV	Support
MSTP/RSTP/STP	Support
STP BPDU Filter	Support
STP BPDU Guard	Support
STP Port Fast	Support
IGMP Snooping	Support
MLD Snooping	Support
MVR	Support
DHCP	Support
Device Scanning	Support
Layer 3 Function
IPV4	Support
IPV6	Support
Dynamic Routes IPv4	OSPF、RIP
Static Routes IPv6	Support
ARP	Support
Loopback Interface	Support
Convergence
ACL	Support MAC standard/extended ACL Support IPv4 standard/extended ACL Support IPv6 standard/extended ACL
QoS	Support QoS remarking Support port trust Support port rate limiting Support egress queue rate limiting Support SP and WRR scheduling algorithms Support COS mapping, DSCP mapping, and IP priority mapping
Management
User Management	Support
System Log	Support
Upgrade Firmware	Support
Configuration File Download/Upload	Support SNMP V1/V2/V3
SNMP	Support
WEB	Support
CLI	Support
Telnet/SSH	Support
RMON	Support
Security
Management Channel Configuration	Support
AAA Authentication	Support
802.1X Authentication	Support
MAC-Based Authentication	Support
Web-Based Authentication	Support
DoS (Denial of Service) Attack Prevention	Support
Dynamic ARP Inspection	Support
DHCP Snooping	Support
IP Source Guard	Support
Port Security	Support
Protected Ports	Support
Storm Control	Support
Equipment Diagnosis
RAM	Support
Flash	Support
Port Mirroring	Support 1:1 or M:1
Ping	Support
Trace Route	Support
Port Testing	Support
Optical Module DDM Information	Support
UDLD Protocol	Support
Mechanical Dimensions
Product Size (D x W x H)	245x240x340mm
Installation Method	Wall / Pole Mounting
EMC & Ingress Protection
IP Level	IP55
Surge Protection of Power	IEC 61000-4-5 Level X (8KV/6KV）
Surge Protection of ETH Port	IEC 61000-4-5 Level X (8KV/6KV）
RS	IEC 61000-4-3 Level 3 (10V/m）
EFI	IEC 61000-4-4 Level 3 (1V/2V）
CS	IEC 61000-4-6 Level 3 (10V/m）
PFMF	IEC 61000-4-8 Level 4 (30A/m）
DIP	IEC 61000-4-11 Level 3 (10V）
ESD	IEC 61000-4-2 Level 4 (8K/15K）
Power Supply
Power Supply	DC52V, 5.77A/300W
Certification
Certificates	CE, FCC, RoHS
