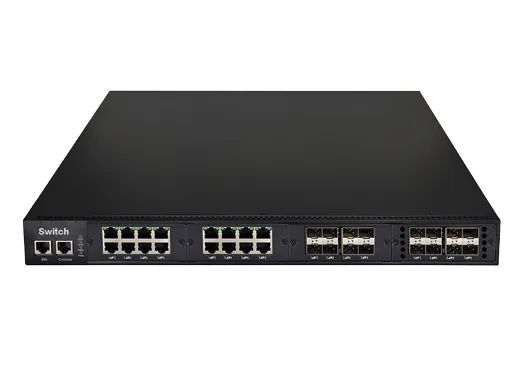

Name: Layer 3 Lite Managed Ethernet Switch 16x10/100/1000M/2.5G/5G/10G RJ45, 16x10G SFP+
Brand: Lanao Communication Technology Limited.
Availability: InStock

CSL3LB-16G16XG-S is a high-performance switch designed for next-generation enterprise and data center networks. It provides 16 × 10G RJ45 ports, 12 × 10G SFP+ ports, and 4 × 10/25G ports, delivering flexible deployment options and scalable bandwidth. With advanced security policies, CPU protection, link load balancing, and automatic DoS defense, the switch ensures stable and secure network operations. Supporting SNMP, IEEE 802.1 protocols, STP/RSTP, and link aggregation, the CSL3LR-16G16XG-S offers robust performance and reliability for demanding applications.

Features

High Performance

760 Gbps switching capacity with up to 565.44 Mpps forwarding
Supports jumbo frames up to 9216 bytes for efficient large-packet transmission
Flexible port configuration with 10G/25G adaptability

Secure and Reliable

Built-in protection against DoS/DDoS, spoofing, and virus attacks
IEEE 802.1x port-based authentication for secure access control
Link aggregation and redundancy mechanisms for enhanced fault tolerance

Easy Management

Intuitive Web, CLI, and SNMP management options
Supports firmware and BootRom upgrades via TFTP, ZMODEM, or XModem
Comprehensive policy control lists and traffic shaping tools

Advanced Traffic Control

Automatic detection and suppression of broadcast storms
IGMP snooping for efficient multicast management
Precise bandwidth control with 1 Mbps rate limiting per port

Model	CSL3LB-16X16XG-S
Fixed Port	1610G RJ45 Ethernet Ports 1610G SFP+ Fiber Ports 1Console Port 1OOB Management Port
Backplane Bandwidth	760Gbps
Forwarding Rate	565.44Mpps
Processor	Broadcom BCM56170 chip Integrated with high-speed ARM Cortex-A9 & embedded Cortex-R5 processor
Flash Memory	32MB
RAM Capacity	256M
MAC	32768
Layer 2 Management
Port Configuration	Port Auto-Negotiation Flow Control Port Mirroring Traffic Statistics
Link Aggregation	Static Link Aggregation Load Balancing Link Backup Source/Destination MAC-Based Algorithm Source/Destination IP-Based Algorithm Dynamic Link Aggregation
MAC	Aging Time Configuration Dynamic MAC Address Management MAC Address Binding and Filtering Static MAC Address
VLAN	802.1Q Tagged VLAN MAC Address-Based VLAN Protocol-Based VLAN
Spanning Tree	802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP)
ERPS	Ethernet Ring Protection Switching
LLDP	Link Layer Discovery Protocol
Multicast Management	IGMP v1/v2 IGMP Snooping Fast Leave IGMP statistics
Layer 3 Management
Static Routing	IPV4/6
RIP	RIPv1/2
RIPng	RIP for IPv6
OSPF	OSPF v1/2 for IPv4
OSPF6	OSPFv3 for IPv6
ISIS	ISIS
BGP	BGP+
PIM	SM/SSM
VRRP	V1/2 for IPv4 V3 for IPv6
QoS	4/8 Priority Queues Port-Based COS 802.1p-Based COS DSCP-Based COS Priority Rules: SP, WRR, SP+WRR Storm Control (Broadcast, Multicast, Unknown Unicast) Port and Traffic-Based Ingress/Egress Rate Limiting
Security	Port Security Port Isolation Loopback Detection Access Control List (ACL) Management Session Timeout IP-Based Web-GUI Access Restriction
Equipment Management	SNMP v1/v2c/v3 Public MIBs SSH server Web-GUI (http/https) Telnet Firmware Web Page Upgrade Configuration Save and Upload DHCP Server ONVIF Discovery NTP Client
IPv6	Dual IPv4/IPv6 Stack Multicast Listener Discovery Protocol (MLD) IPv6 Neighbor Discovery (ND) Path Maximum Transmission Unit (MTU) Discovery Internet Control Message Protocol (ICMP) Version 6 TCPv6/UDPv6: TCPv6/UDPv6 Ping6 Tracert6 Telnet (v6) HTTP/HTTPS Static Routing IPv6 TFTP (Trivial File Transfer Protocol)
Maintenance	Diagnostic Tools System Logs Firmware Upgrade Configuration Backup and Restore Performance Monitoring Error Reporting Health Check Loopback Testing Traffic Testing Auto Recovery
Physical Characteristics
Product Size	440x400x44mm
Power Supply	AC110 ~240V Adaptive, 47-63Hz, Supports Dual AC Power Supply (Optional)
Power Consumption	<130W
Indicator Light	Power Indicator, System Indicator
Operation Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Humidity	0-90% non-condensing
Certificates	CE/FCC/RoHS
Warranty	1 year
