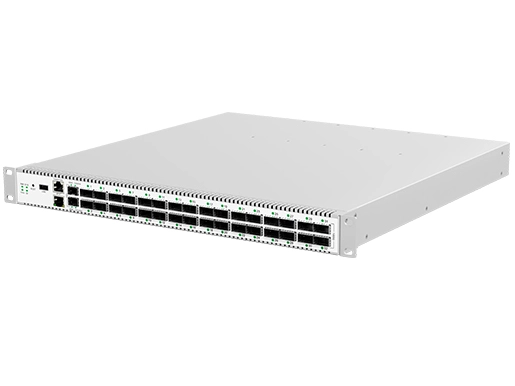

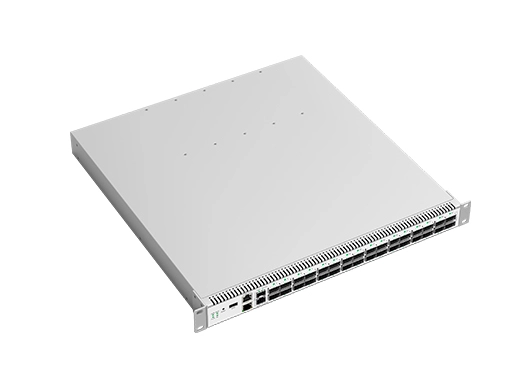

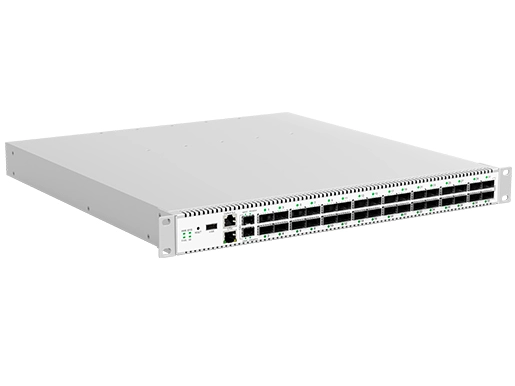

Data Center White Box Switch 32x100G QSFP28, 2x10G SFP+

Overview

DCSL3M-32C02X is a high port density switch with 32xQSFP28 ports in a single 1RU and single packet forwarding engine for Data centers that need unprecedented speed. With 32x100G QSFP28 ports it is ideally suited for deployment at leaf/spine in data centers, where high performance is the most important, with 6.4Tbps (3.2Tbpsx2) total performance - as ultra-powerful appliance.

Primarily packaged to meet the requirements of deployments that require smaller form factor and access to all network ports and management ports from the front side of the product. Be used to provide 32x100G+2x10G ports solution. In the interest of achieving the smallest possible form factor, minimum cost and the lowest system power consumption. In order to be able to fit all access, uplink and data ports on the front side of a 1U system, all data plane connectivity to it is provided through QSFP28 sockets. Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables.

We support open-source Open Network Install Environment (ONIE) for zero touch installation of SONiC networking operating system or commercial OcNOS system.

Features

• Compact 1RU standard, 19-inch rack mountable design

• Cut-through with ultra-low-latency

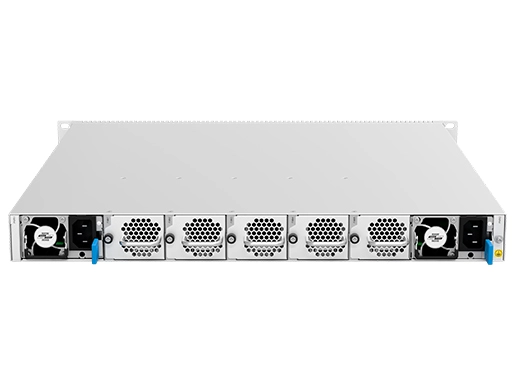

• 2 (1+1 redundant) Redundant Hot-swappable PSU

• 5 (4+1 redundant) Hot-swappable Fan

• 32x100G QSFP28 in 1U form factor

• Each 100G QSFP28 port can be configured 40G, 4x25GbE or 4x10GbE via breakout cables

• Up to 6.4Tbps (3.2Tbpsx2) of switching performance

• 2x10Gpbe SFP+ and 1xGBaseT RJ45 Management Port

• Open automated configuration and zero-touch provisioning capabilities

• Simplify management of network environments

• Interface flexibility & Power efficiency

Optional Software

* License fee will be quoted separately according to different project management requirements.

* Optional features supported by Hardware but limited to Software roadmap.

Layer 2 Feature list

• 802.1D Spanning Tree Protocol/802.1 w Rapid

• Spanning Tree / 802.1 s Multiple Spanning Tree / RPVST+

• VLAN’s with QinQ

• 802.1Q VLAN’s / Trunking support

• Private VLAN’s

• 802.1 AB Link Layer Discovery protocol

• 802.3x Flow control

• 802.1x Authentication*

• 802.3ad Link aggregation group support

• Multi-chassis Link aggregation group support

• CFM 802.1ag*

• Y.1731*

• VxLAN support with EVPN

• TRILL*

• QCN, ETS, PFC*

Layer 3 Feature list

• Static IPv4/Ipv6

• OSPFv2/v3, ISIS (v4/v6), MP-BGP, RIPv2

• Multi-path ECMP

• VRF Lite – IPv4

• BFD for IPv4, IPv6, Protocol support for OSPF, BGP

• in Global and VRF space

• IGMP v2/v3

• IGMP Snooping, querier, proxy report suppression

• MLD

• MSDP

• PIM-SM, PIM-SSM, PIM-DM (IPv4/IPv6

• VRRP

MPLS/MPLS-TP Feature list*

• MPLS Architecture Support*

• LDP, RSVP support*

• RSVP Traffic Engineering support*

• RSVP FRR with 1:1 and 1:n support*

• Pseudowire setup and maintenance using LDP*

• Pseudowire setup and maintenance using BGP*

• EVPN support over VPLS*

• MPLS L3VPN for IPv4/IPv6*

• Differentiated Services over MPLS*

• BFD for Pseudowire VCCV*

• OAM for MPLs based transport networks, proactive connectivity check, RDI*

• MPLS TP, Transport Profile Support*

• MVPN Support*

Management, Security and Qos Features

• Access control list

• RADIUS & TACACS+ support

• Role based access control

• Modular QOS for Policing, Marking and Shaping

• Hierarchical QOS*

• Flexible flow classification and action rule-set

• NETCONF support*

• Ansible Integration*

• Sflow support

• DCHP Relay/Client

• Syslog

• SNMP Support

• Industry standard CLI
