Name: Unmanaged AI PoE Switch 6x10/100/1000Base-T (4xPoE, Port1 BT60w)
Brand: Lanao Communication Technology Limited.
Availability: InStock

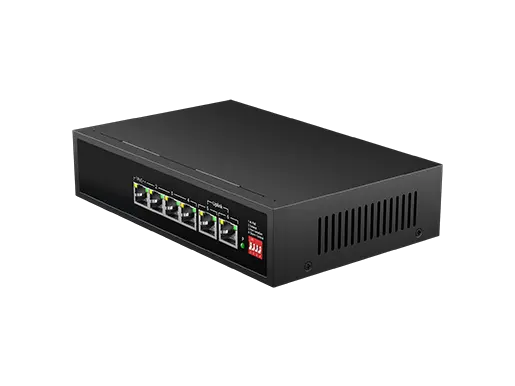

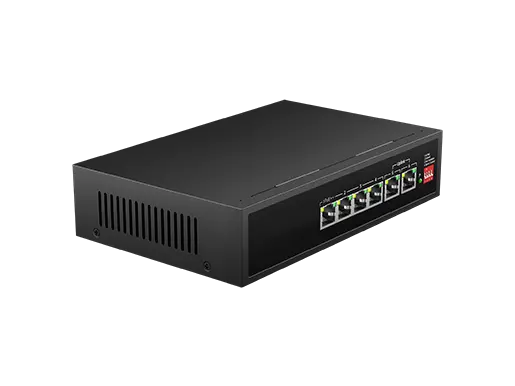

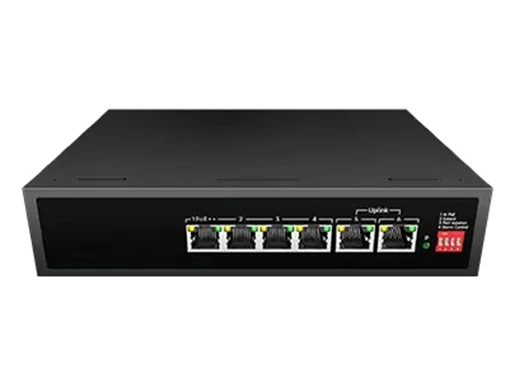

Unmanaged AI PoE Switch 6x10/100/1000Base-T (4xPoE, Port1 BT60w)

CSAIR-0006GHP-Z

CSAIR-0006GHP-Z 6-port Gigabit PoE switch with 4 PoE ports and 2 uplink ports, supporting IEEE 802.3af/at/bt, enabling seamless power and data transmission for IP cameras, wireless access points, and IP phones, delivering secure, high-performance AI PoE networking.

Overview

Specifications

Connectivity Solutions

Models

Resources

CSAIR-0006GHP-Z is a 4x 10/100/1000Base-T PoE + 2x 10/100/1000Base-T Ethernet Switch, providing seamless network connectivity. It supports automatic detection and power supply for devices that comply with IEEE802.3af, IEEE802.3at, and IEEE802.3bt standards. PoE (Power over Ethernet) enables the transmission of both data and DC power to IP-based devices (e.g., IP phones, wireless access points, network cameras). These powered devices receive DC power via PoE. The AI PoE switch offers easy installation and maintenance, along with rich business features, helping users build a secure and high-performance network.

Features

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at/bt standards

Ethernet port supports 10/100/1000M adaptive and PoE functions

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard

Support Port Auto-flip (Auto MDI/MDIX)

Automatically supplied to adaptive devices

Support PoE Watchdog Function

Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.

Provider Mode Ports
Fixed Port	6x10/100/1000Base-T
Power Interface	AC Interface
Led Indicators	P, active, speed
Cable Type & Transmission Distance
Twisted-Pair	0-100m/250m
Network Topology
Ring Topology	Not Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	AC100~240V 50/60Hz
Mainboard Power	≤3W
Total Power Consumption	≤65W
PoE Support
PoE Standard	802.3af, 802.3at
Pin Assignment	1, 2+/3, 6-
PoE Port	1-4
PoE++ Support
PoE Protocol	802.3af, 802.3at, 802.3bt;
Pin Assignment	1, 2, 4, 5+; 3, 6, 7, 8-
PoE Port	1(60w)

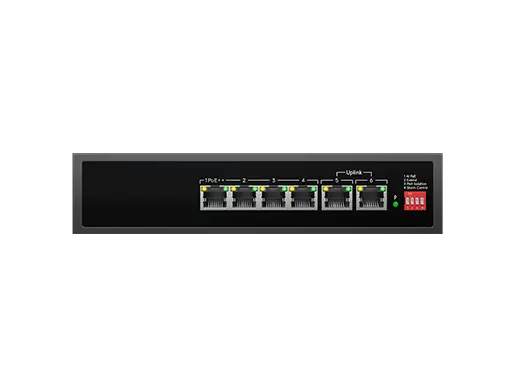

DIP Switch
1- PoE Watchdog	When the switch port communication fails, the corresponding port POE will automatically detect and restart, restore network communication by itself, and reduce manual intervention and maintenance.
2- Extension 250m	It adopts data extension mode and breaks through the limit of 100 meters. It can provide 10Mbps rate and 250 meters long-distance power transmission, and solve the project power supply such as monitoring engineering and wireless coverage. The problem of insufficient distance can replace the extender and part of the fiber, expand the scope of equipment and reduce engineering costs.
3- Port Isolation	The PoE ports of the switch cannot communicate with each other, and can only communicate with Uplink ports. It effectively suppresses network storms, prevents virus propagation and network attacks, and improves network performance.
4- Storm Control	Storm control enables the switch to monitor traffic levels and to drop broadcast, multicast, and unknown unicast packets when a specified traffic level – called the storm control level – is exceeded, thus preventing packets from proliferating and degrading the LAN
Layer 2 Switching
Switching Capacity	12G
Packet Forwarding Rate	8.9Mpps
MAC Address Table	4K
Buffer	2M bytes
Forwarding Delay	<10us
MDX/MIDX	Support
Jumbo Frame	Support 10K bytes
Storm Control	Support
Environment
Operating Temperature	-10℃~+50°C
Storage Temperature	-10℃~+50℃
Relative Humidity	10%~90% (non-condensing)
Thermal Methods	Fan-less, natural cooling
MTBF	100,000 hours
EMC & INGRESS PROTECTION
Surge Protection of Power	Common Mode 6KV, Differential Mode 2KV
Surge Protection of Ethernet Port	Common Mode 4KV, Differential Mode 2KV
ESD	Contact 8K, Air 15K
Free Fall	0.5m
Mechanical Dimension
Product Size (L x W x H)	202x140x44mm
Installation Method	Desktop
Weight	0.7KG
Packing Info	10pcs, 11.24kg, 35.5x34x42.5cm
Certification
Certificates	CE, FCC, RoHS
