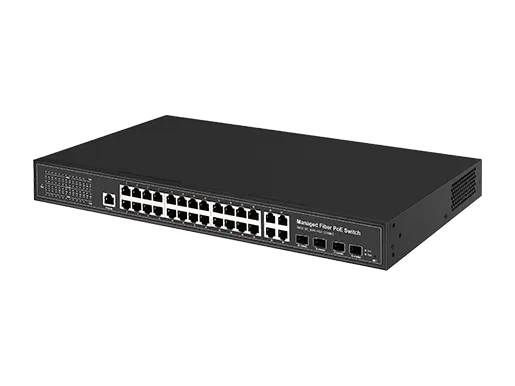

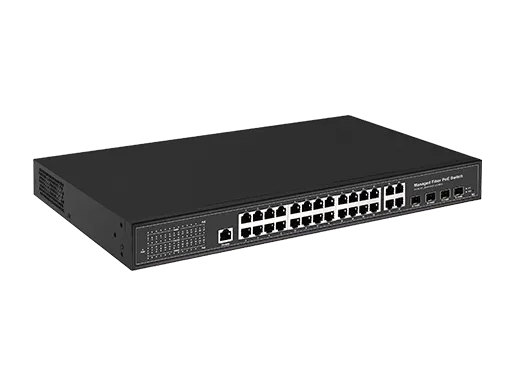

Full Gigabit 4Combo+28GE PoE Switch L2+Managed

Product Mame

Full Gigabit 4Combo+28GE PoE Switch L2+Managed

Fixed Port

24*10/100/1000M RJ45 PoE port  4*10/100/1000M RJ45 ports (COMBO)

4*100/1000M SFP(COMBO)

PoE Port

1-2 ports support IEEE802.3af/at/bt,max 90W/ports

3-24 ports support IEEE802.3af/at,max 30W/ports

Console Port

1 console

Reset Key

1

PoE Pin

Af/at/bt: 12+ 45+ ; 36- 78-

Af/at: 12+ 36-

PoE budget

Max 400W

CPU

500Mhz

DDR

1G DDR3

FLASH

128MBytes

RAM

128MBytes

Bandwidth

56G/128Gbps

Packet Forwarding

41.67Mpps

MAC

8K

Buffer

4.1Mbit SRAM Packet Buffer

Jumbo Frame

10000Kbyte

VLAN Mac

4K

Transmission Distance

10M:Cat3,4,5 UTP(≤250m)

100M:Cat5 or later UTP(150m)

1000M:Cat6 or later UTP(150m)

SFP: Supports 1000M single-mode and multi-mode optical modules, with a maximum distance of ≤120km (depending on the optical module).

LED Indicator

POWER:Power LED

SYS:System LED

1-24:10/100,1000M Network Connection Indicator Light

25-28:10/100,1000M Network Connection Indicator Light

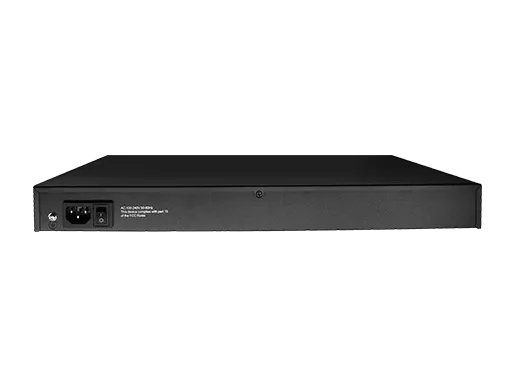

Power

Built-in power AC:100-240Vac 50-60Hz 5.1A Max 425W

Operating Temperature/Humidity

-10~+55°C;5%~90%RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95%RH Non coagulation

Product /Packing Size(L*W*H)

440mm*290mm*45mm

515mm*375mm*95mm

N.W/G.W(kg)

3.5kg/4.2kg

Lightning Protection Level

6KV 8/20us;

IP30

Installation

Rack-mount (optional machine hanger spare parts)

Certificate

3C;CE-EMC EN55032;CE-LVD EN62368;
FCC Part 15 Class B;RoHS;

Warranty

Whole device for 1 year(Accessories not included)

Features

L2+ Switch

Supported Switch Chips

RTL838X

Port

Number of 100M Ports

Maximum 48 ports

Number of Copper Gigabit Ports

Maximum 48 ports

Number of Fiber Gigabit Ports

Maximum 24 ports

Port Shutdown

Support

Port Speed

Support autonegtiate, full-1000, full-100, half-100, full-10, half-10

Flow Control

Support full-duplex IEEE 802.3x, half-duplex back pressure

Storm Control

Supports rate limit for broadcast, multicast, and DLF packets

Storm Constrain

Support the detection of broadcast packets, multicast packets, or unicast packets on the port, shutdown the port if the rate is over the threshold.

Port Mirror

Support

Port Rate Limit

Support port ingress and egress rate limit

Link Aggregation

Support manual link aggregation

Support LACP dynamic link aggregation

Supports up to 8 aggregation groups, each group up to 8 ports

Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy

Port Isolate

Support

Jumbo Frame

Support up to 16KB packet

Cable Distance Diag

Support

Redundant Port

Support

The DDM of Fiber Ports

Support

MAC

MAC Table Capacity

8K

MAC Table Management

Support

Forwarding Mode

Support IVL forwarding mode

Static MAC Address

Support

MAC Address Binding

Support

MAC Address Filtering

Support

MAC Learning Control

Control the MAC learning based on port

VLAN

Number of VLANs

4K

802.1q-Based VLAN

Support

MAC-Based VLAN

Support

IP-Based VLAN

Support

Protocol-Based VLAN

Support

PVLAN

Support

Voice VLAN

Support

VLAN Mapping

Support 1:1 mapping

QinQ

Support basic QinQ

Support flexible QinQ

Reliability

Spanning Tree Protocol

Support STP/RSTP/MSTP

Port Loop Detection

Support

EAPS

Support RFC3619

ERPS

Support G.8032/Y.1344

LLDP

Support LLDP & LLDP-MED

UDLD

Fully compatible with CISCO's UDLD protocol

IP

ARP

Support static and dynamic ARP

IP Route

Support 0.0.0.0/0 route and other static route, but can’t support L3 forwarding

VLAN Interface

Support 32 VLAN interfaces

Multicast

Static Multicast MAC Address

Support

IGMP SNOOPING

Support

MLD SNOOPING

Support

MVR

Support

GMRP

Support

ACL

Standard IP-Based ACL

Support

Extended IP Based ACL

Support

MAC IP-Based ACL

Support

MAC ARP-Based ACL

Support

IPv6-Based ACL

Support

ACL Port Filtering

Support

Time-Based ACL

Support

QoS

Port Queue Number

8

Port Queue Scheduling Mode

Support WRR,RR,WDRR,SP

Port-Based Classification

Support

802.1p-Based Classification

Support

DSCP-Based Classification

Support

ACL-Based Classification

Support

QoS Policy

Support packets mapping to queue

Support COS or DSCP Remarking

Support rate limits of data flow

Support data flow statistics

Support mirroring of data flow

DHCP

DHCPv4 Client

Support

DHCPv6 Client

Support

DHCP Snooping

Support

DHCP Relay

Support

DHCP Server

Support

DHCP Option 82

Support

Management

CLI  Management

Support Console, TELNET and SSH

Support multiple TELNET connections based on IPv4 and IPv6

Support multiple SSH connections based on IPv4 and IPv6

Support running configuration rollback

Support ZTP (Zero Touch Configuration)

WEB Management

Support

SNMP Management

Support SNMP v1, v2c,v3

Support SNMP TRAP

Support lots of standard and private MIBs

Support SNMP based on IPv4 and IPv6

User Management

Support multiple user management

TACACS+

Support switch authentication via TACACS+ server remote username and password

Support password encryption in PAP and CHAP mode

Support TACACS+ server to authorize the switch’s commands

Support TACACS+ based on IPv4 and IPv6

Log Management

Support local log management

Support SYSLOG based on IPv4 and IPv6

RMON

Support RMON 1, 2, 3 and 9 groups

Cluster Management

Support NDP

Support NTDP

Support manual and automatic joining of cluster groups

Support cluster unified management

OAM

Support 802.3ah

Support 802.1ag

Configuration File

Support TFTP transmission based IPv4 and IPv6

Support SFTP transmission based IPv4 and IPv6

Support SFTP Client and SFTP Server

Upgrade Software

Support TFTP transmission based IPv4 and IPv6

Support SFTP transmission based IPv4 and IPv6

Support SFTP Client and SFTP Server

Clock Management

Support local clock management

Support SNTP based IPv4 and IPv6

Security

Switch Management Security

Support enabling and disabling TELNET, WEB and SNMP services

Support TELNET, WEB and SNMP services to bind to standard IP ACLs

Support for limiting the number of TELNET connections

CPU Protection

The switch's own security protection prevents large data streams from attacking the switch itself.

AAA

Support 802.1x

Support RADIUS

Supports authentication, authorization, and accounting through RADIUS server

Support port-based and MAC-based 802.1x

Support 802.1x guest VLAN

IP MAC Binding

Support static configuration of IP, MAC and port binding

DHCP SNOOPING

Support dynamic ARP binding to prevent ARP spoofing

Support dynamic IP, MAC and port binding

Support fixed port to connect to DHCP server to prevent private connection to DHCP server

Prevent ARP Spoofing

Support manually configuring MAC ARP-based ACL rules to prevent ARP spoofing.

Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing.

PoE

Supported PoE Chips

MAX5980,LTC4259,LTC4271,TPS23851,TPS23861,TPS23880,TPS23881,IP808,PD69100/69108,PD69200/69208, etc.

Switch Control

Support PoE powering of ports on and off

Power Control

Support setting total power

Other Advanced Features

Support PoE scheduling policy and PD online query, etc.

IPv6

IPv4/IPv6 Dual Protocol Stack

Support

IPv6 Address

Support manual address configuration, stateless address auto-configuration and stateful address configuration obtained through DHCPv6 client

IPv6 Neighbor Discovery

Support

ICMPv6

Support

IPv6 Path MTU Discovery

Support

Debugging

PING

Support

PING6

Support

TRACEROUTE

Support

TELNET Client

Support TELNET client based IPv4 and IPv6

SSH Client

Support SSH client based IPv4 and IPv6

TWAMP

Support TWAMP server and session-reflector

CSL3LR-04C24GP-S

Full Gigabit 4Combo+28GE PoE Switch L2+Managed
