Name: Industrial Unmanaged Switch 8x10/100Base-T (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

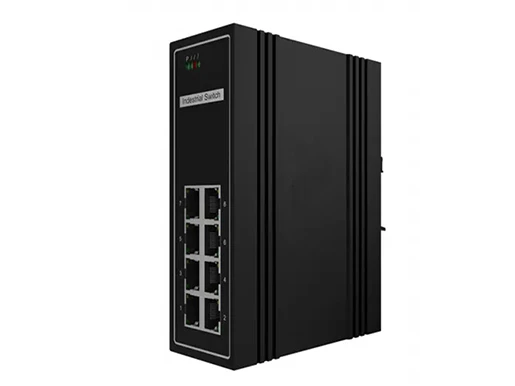

Industrial Unmanaged Switch 8x10/100Base-T (PoE Optional)

IDSAIR-0008F-Z4

It delivers robust industrial-grade performance with high/low temperature resistance and lightning protection, enhancing the reliability, stability, and safety of industrial Ethernet networks.

Overview

Specifications

Connectivity Solutions

Models

Resources

This device 8*10/100Base-T Industrial Ethernet Switch, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature -30°C~75°C, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NO	IDSAIR-0008F-Z4
Provider Mode Ports

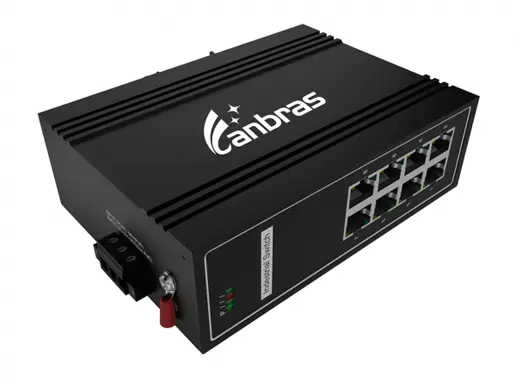

Fixed Port	8*10/100Base-T

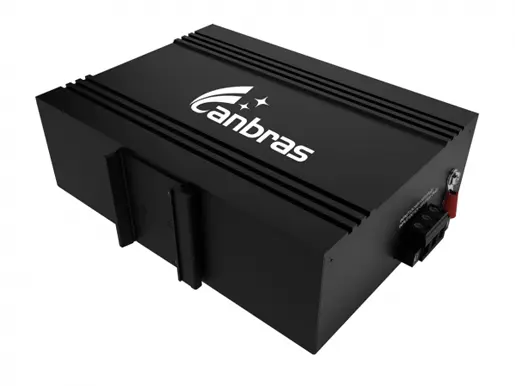

Power Interface	Phoenix terminal, dual power supply
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	/
Multimode Optical Fiber	/
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications

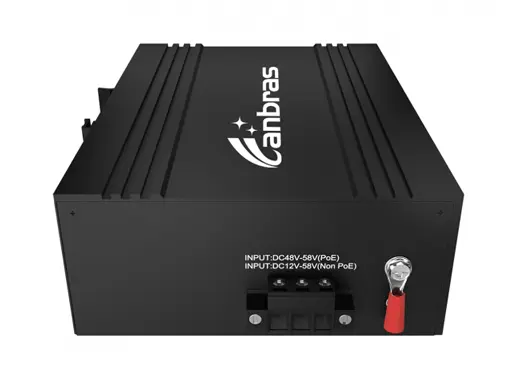

Input Voltage	DC12-58V(Non-PoE)/DC48~58V(PoE)
Total Power Consumption	Non PoE<5W, with PoE<125W
PoE Support
PoE port	1~8
PoE Protocol	802.3af
Pin Assignment	1, 2, 3, 6
PoE Management	Up supported
Layer 2 Switching
Switching Capacity	5.6G
Packet Forwarding Rate	4.16Mpps
MAC Address Table	8K
Buffer	1M
Forwarding Delay	<4us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	1632 bytes
Environment
Operating Temperature	-30℃~75℃
Storage Temperature	-30℃~75℃
Relative Humidity	5%~95% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	14310446mm (W×H×D)

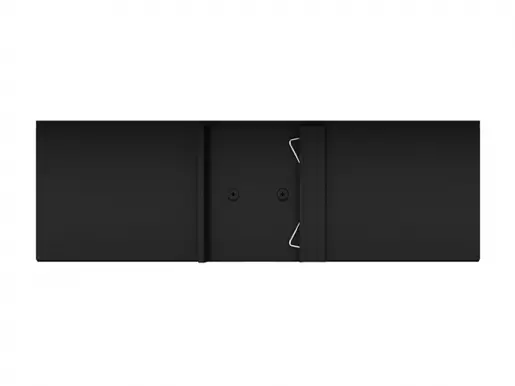

Installation Method	DIN-rail
Weight	0.54KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
EMI	CLASS A
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free Fall	0.5m
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSAIR-0008F-Z4	8*10/100M RJ45 Port, PoE support 802.3af

Date	Version	Description			Download
2025-03-12		LA-IS4N-F0008
