Name: Industrial Din-Rail Layer 2 Managed PoE Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

IDSL2M-02S04GP-L is a robust industrial managed PoE switch equipped with 4-port 10/100/1000-T PoE and 2-port 1000Base-X fiber optical interfaces. It supports IEEE802.3af and IEEE802.3at standard PoE protocols, providing up to 30W (PoE+) per port. Designed for high performance, it offers impressive switching capacity and supports ERPS redundant networks, with a self-recovery mechanism of less than 20ms under full load. This ensures a reliable Ethernet network and allows for a resilient ring topology as a backup solution. The switch also offers flexible management through Web, SNMP, and Telnet interfaces, with features including QoS, VLAN, IGMP, port mirroring, 802.1X, LLDP, Fiber Transceiver DDM, and PoE management.

It is a cost-effective and user-friendly device, providing essential industrial Ethernet networking capabilities, includes a wide input power range of 44-57VDC, a redundant power design with polarity reverse protection, and a durable IP40-rated fan-less housing for DIN rail installation. With an operating temperature range of -40℃~+ 75℃ and high-level EMI/EMC protection, it is ideal for demanding industrial environments. This switch is the perfect solution for industries such as manufacturing, transportation, oil & gas, chemical processing, IP surveillance, and automation, where reliability and robust performance are crucial.

Features

4x10/100/1000Base-T RJ45 PoE ports, 2x1000Base-X SFP ports
DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Support Layer 2 management function: VLAN/Port Mirroring/IGMP/QoS/LLDP/802.1X/Fiber transceiver DDM/PoE management/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time≤20ms
Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40℃~+75℃

Model No.	IDSL2M-02S04GP-L
Interface	Fiber ports		Copper RJ45 ports
	2		4
Ethernet Standard	4x10/100/1000Base-T RJ45 PoE 2x100/1000Base-X SFP
Management Port	1*RJ45 Console
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x flow control and back pressure IEEE 802.1D spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1Q VLAN tagging ITU-T G.8032 ERPS IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af Power Over Ethernet IEEE802.3at Power Over Ethernet plus PSE
LED Indicators
P(Power Indicator)	Off: the device is power off or failed Off: the device is power off or failed
S(System Status Indicator)	Blinking: device initialization On: device on normal operation
1-4 (Copper Ports)	Green	Yellow
	Off: ports link down	Off: PoE not working
	On: ports link up	On: PoE working
	Blinking: data on TX/RX
5-6 (Fiber Ports) Green	Off: ports link down On: ports link up Blinking: data on TX/RX
Power Parameter
Input Voltage	44-57VDC, redundant power input
Input Current	3A Max
Total Consumption	Full loading without PoE≤6W PoE power budget≤120W
Connector	Removable 4-pin terminal block
Reverse Polarity Protection	Support
Over-voltage Protection	Support
Layer 2 Function
Port Aggregation	Support static aggregation Support dynamic aggregation
Port features	Support IEEE802.3x flow control Support Port traffic statistics Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
Port Mirroring	Support many to one port mirroring
Ring Network Protocol	Support STP RSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time≤20ms
Multicast	IGMP snooping
QoS	Ingress Port-based Rate-limit Egress Port-based Rate-limit
Security Features	Support 802.1x, port authentication, MAC authentication, RADIUS service Support port isolation
Management and Maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Slog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading
Switching Features
Switching Capacity	12Gbps
Packet forwarding Rate	17.8Mpps
MAC Address Table	8K
VLAN	4K
Buffer	1M bit
Forwarding Delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Mechanical Structure
Case Protection	IP40
Installation Method	Din-rail

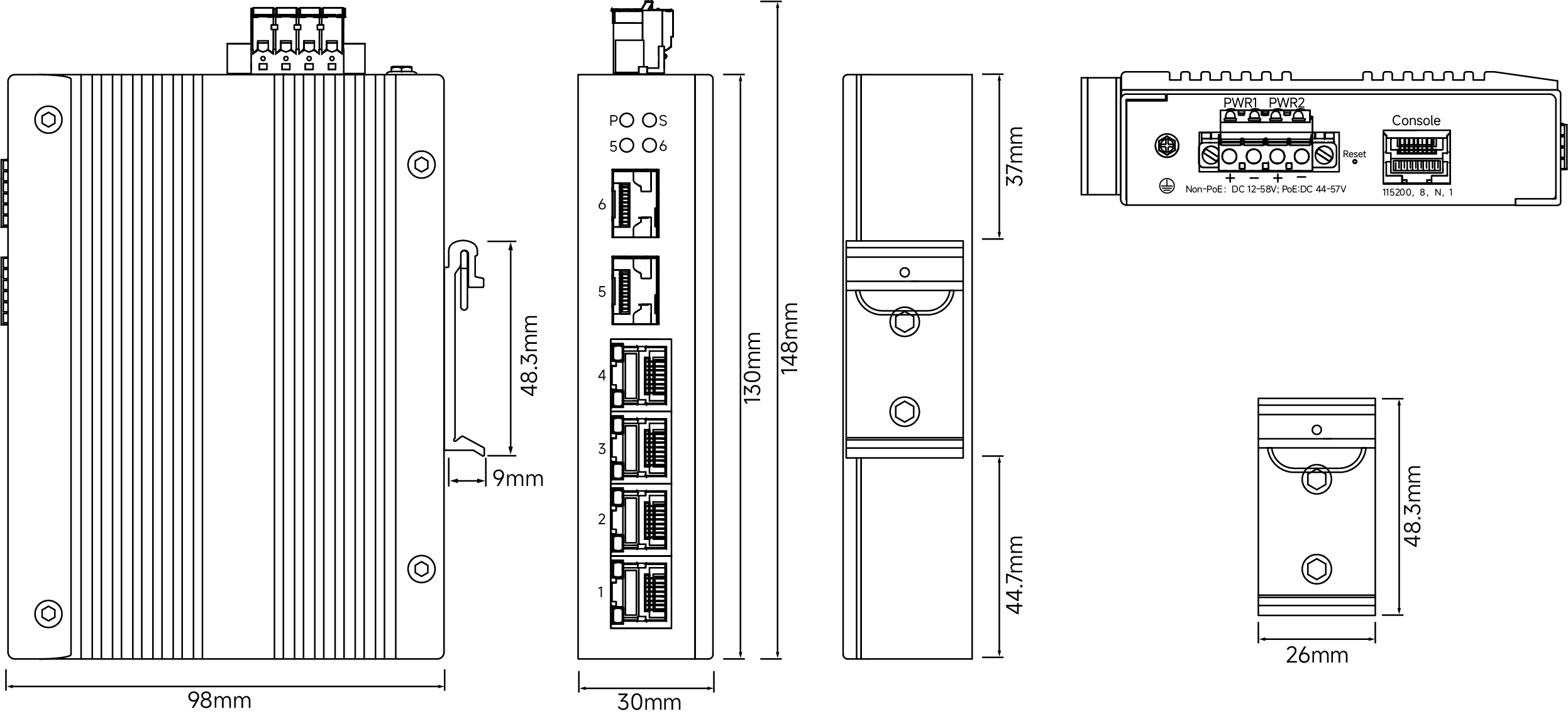

Dimension(WDH)mm	30x98x130mm
Weight	0.56 kg
Operating Environment
Operating Temperature	-40℃~+75℃
Storage/Transportation Temperature	-40℃~+85℃
Relative Humidity	Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH
Industrial Standard	Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2K) (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV)(10/700us) DIP: IEC 61000-4-11 Level 3 (10V) ESD: IEC 61000-4-2 Level 4 (8K/15K) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE/UKCA/RoHS/REACH/FCC
Warranty	3 years
