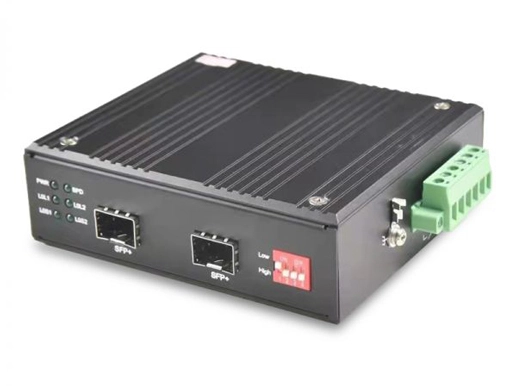

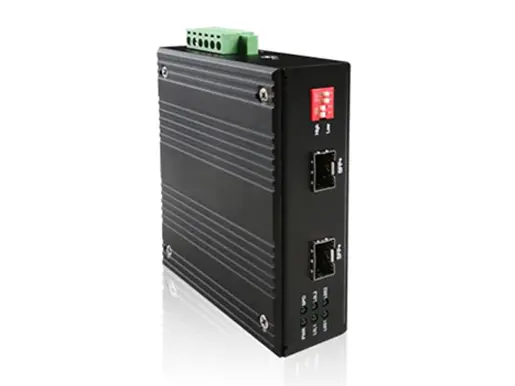

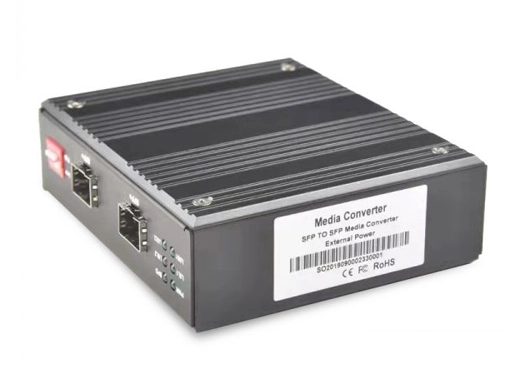

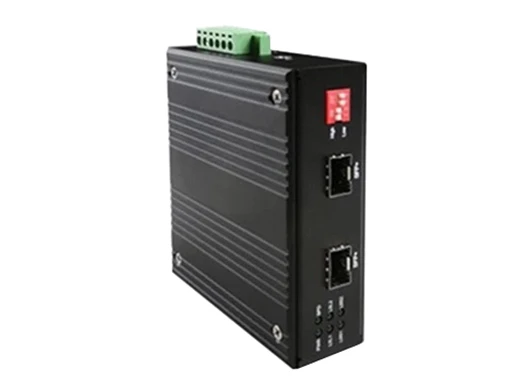

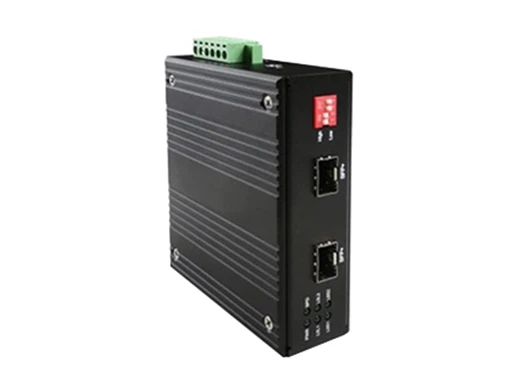

Industrial 10G OEO Converter

LA-10GOEO-I

Industrial 10G OEO converter enables fiber-to-fiber 10Gbps transmission as a media converter or repeater, supporting SDH/SONET STM-64/OC-192, 10G Ethernet, and 10G Fiber Channel for SAN, LAN, and MAN applications in harsh environments (-40°C to 75°C).

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 75℃.

It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.


Features

  • Transparent Transport and very low delay

  • 3R function (Regeneration, Reshaping, Re-timing)

  • Support hot plugging, full state led display, easy installation

  • Support ITUT prescribed DWDM/CWDM wavelength, and can also display it's DDM function

  • Support Loop-back and Jumbo Frame

DIP Switch

DIP-Bit NumberSwitch StatusFunction Deions
1ON1.25~8.5G
OFF10.3G or 14.025G
2ONReserved
OFFReserved
3ONReserved
OFFReserved
4ONReserved
OFFReserved

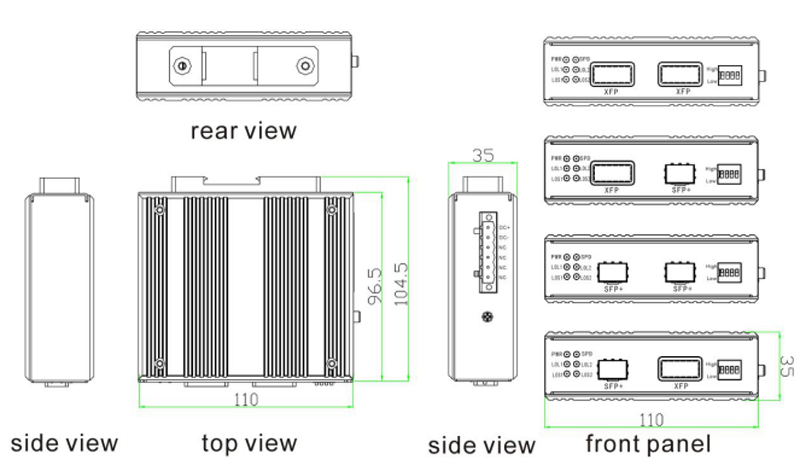

Product Size (mm)

Product Size (mm) of Industrial 10G OEO Converter


Protocols

  • 8.5G Fiber Channel

  • SONET OC-192, SDH STM-64 (9.95Gbps)

  • 10G WAN (10Gbps)

  • 10G LAN (10.31Gbps)

  • OTN OTU-2 (G.709) (10.70Gbps)

  • 10G LAN with 255/237 FEC coding (11.09Gbps)

  • 10G Fiber Channel (11.32Gbps)


Transmission Distance

  • XFP module: Up to 80Km

  • SFP+ module: up to 80km


Maximum Packet Forwarding Rate

  • 14,880,950/S


LED Instructions

  • PWR, SPD, LOS1, LOL2,LOS2, LOL2


Transmission Speed

  • 8.5Gb/s-11.7Gb/s


Interface Type

  • Type A : XFP to XFP

  • Type B : XFP to SFP+

  • Type C : SFP+ to XFP

  • Type D: SFP+ to SFP+


Power Requirement

  • Standalone: DC12V~48V

  • Power consumption: ≤4W


Work Environment

  • Operating Temp: -40~ 75℃

  • Storage Temp: -40~ 85℃

  • Humidity: 5%~90% (non-condensing)


Dimension

  • Standalone: 110(L)*96.5(W)*35(H)mm


Ordering Information
PART NODESCRIPTION
LA-10GOEO-IIndustrial 10G OEO Converter, 8.5Gb/s-11.7Gb/s Operating Temperature -40~ 75℃


Date Version Description Download
2025-03-12 LA-10GOEO-I
