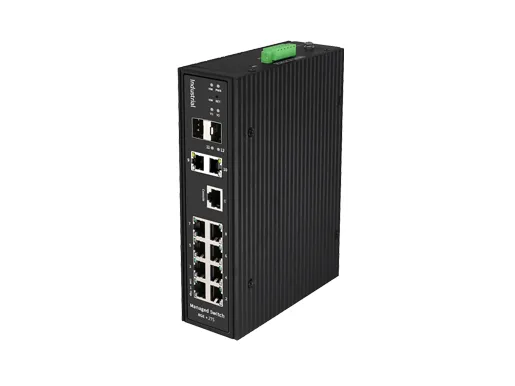

Model | IDSL3LR-02S10G-S |
Fixed Port | 10*10/100/1000M RJ45, 2*1000M SFP |
Console Port | 1 |
Reset Key | 1 |
Power Input | Dual DC12-57V |
Network Protocol | IEEE 802.3x IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S IEEE 802.3z 1000BASE-X STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
Port Specification | 1-8 port 10/100/1000BaseT auto detection, full/half duplex MDI/MDI-X adaptive |
Transmission Mode | Store and Forward (full wire speed) |
Bandwidth | 56Gbps (no blocking) |
Packet Forwarding | 41.664Mpps |
Mac | 8K |
Buffer | 4.1M |
Transmission Distance | 10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat6 or later UTP (≤1000 meter) SFP: Support 1G single-mode multi-mode optical module, max. distance ≤120km |
FLASH | 16M |
RAM | 128M |
Power Consumption | Standby≤15W; Full-load≤25W |
LED Indicator | PWR: Power indicator/SYS System indicator P1: Mains power indicator P2: Secondary power indicator HW: no 1-10 Port RJ45 left: 1000M link LED (orange); RJ45 right: link LED (green) 11-12: optical port link LED |
Operating Temperature | -40~+75°C |
Storage Temperature | -40~+85°C; |
Operating Humidity | 10%~90% RH No condensation |
Storage Humidity | 5%~95% RH No condensation |
Lightning Protection Level | 6KV 8/20us; 8KV ESD; IP40 |
Product Size (L*W*H) | 188*130*50mm |
N.W. | 1.26kg |
Installation | DIN-rail type |
Certificate | CE/FCC/RoHS |
Warranty | 2 years |
Software Functions |
Port |
Port Shutdown | Support |
Port Speed | Support auto negotiates, full-1000, full-100, half-100, full-10, half-10 |
Flow Control | Support full-duplex IEEE 802.3x, half-duplex back pressure |
Storm Control | Support rate limit for broadcast, multicast, and DLF packets |
Storm Constrain | Support the detection of broadcast packets, multicast packets, or multicast packets on the port, shutdown the port if the rate is over the threshold. |
Port Mirror | Support |
Port Rate Limit | Support port ingress and egress rate limit |
Link Aggregation | Support manual link aggregation Support LACP dynamic link aggregation Supports up to 8 aggregation groups, each group up to 8 ports Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy |
Port Isolation | Support |
Jumbo Frame | Support up to 16KB |
Cable Distance Diagnosis | Support |
Redundant Port | Support |
DDM of Fiber Ports | Support |
MAC |
MAC Table Capacity | 8K |
MAC Table Management | Support |
Forwarding Mode | Support IVL forwarding mode |
Static MAC Address | Support |
MAC Address Binding | Support |
MAC Learning Control | Control the MAC learning based on port |
VLAN |
Number of Vans | 4K |
802.1Q-based VLAN | Support |
MAC-based VLAN | Support |
IP-based VLAN | Support |
Protocol-based VLAN | Support |
PVLAN | Support |
Voice VLAN | Support |
VLAN Mapping | Support 1:1 mapping |
QinQ | Support basic QinQ Support flexible QinQ |
Reliability |
Spanning Tree Protocol | Support STP/RSTP/MSTP |
Port Loop Detection | Support |
EAPS | Support RFC3619 |
ERPS | Support G.8032/Y.1344 |
LLDP | Support LLDP & LLDP-MED |
UDLD | Fully compatible with Cisco's UDLD protocol |
IP |
ARP | Support static and dynamic ARP |
IP Route | Support 0.0.0.0/0 route and other static route |
VLAN Interface | Support 32 VLAN interfaces |
Multicast |
Static Multicast MAC Address | Support |
IGMP SNOOPING | Support |
MLD SNOOPING | Support |
MVR | Support |
GMRP | Support |
ACL |
Standard IP-based ACL | Support |
Extended IP based ACL | Support |
MAC IP-based ACL | Support |
MAC CARP-based ACL | Support |
IPv6-based ACL | Support |
ACL Port Filtering | Support |
Time-based ACL | Support |
QoS |
Port Queue Number | 8 |
Port Queue Scheduling Mode | Support WRR, SP, WFQ |
Port-based Classification | Support |
802.1p-based Classification | Support |
DISC-based Classification | Support |
AC-based Classification | Support |
QoS Policy | Support packets mapping to queue Support COS or DSCP Remarking Support rate limits of data flow Support data flow statistics Support mirroring of data flow |
DHCP |
DHCPv4 Client | Support |
DHCPv6 Client | Support |
DHCP Snooping | Support |
DHCP Relay | Support |
DHCP Server | Support |
DHCP Option 82 | Support |
Management |
CLI Management | Support Console, TELNET and SSH Support multiple TELNET connections based on IPv4 and IPv6 Support multiple SSH connections based on IPv4 and IPv6 Support running configuration rollback Support ZTP (Zero Touch Configuration) |
WEB Management | Support |
SNMP Management | Support SNMP v1, v2c, v3 Support SNMP TRAP Support lots of standard and private MIBs Support SNMP based on IPv4 and IPv6 |
User Management | Support multiple user management |
TACACS+ | support switch authentication via TACACS+ server remote username and password Support password encryption in PAP and CHAP mode Support TACACS+ server to authorize the switch’s commands Support TACACS+ based on IPv4 and IPv6 |
Log Management | Support local log management Support SYSLOG based on IPv4 and IPv6 |
Log Management | Support local log management Support SYSLOG based on IPv4 and IPv6 |
RMON | Support RMON 1, 2, 3 and 9 groups |
Cluster Management | Support NDP Support NTDP Support manual and automatic joining of cluster groups Support cluster unified management |
OAM | Support 802.3ah Support 802.1ag |
Configuration File | Support TFTP transmission based IPv4 and IPv6 Support SFTP transmission based IPv4 and IPv6 Support SFTP Client and SFTP Server |
Upgrade Software | Support TFTP transmission based IPv4 and IPv6 Support SFTP transmission based IPv4 and IPv6 Support SFTP Client and SFTP Server |
Clock Management | Support local clock management Support SNTP based IPv4 and IPv6 |
Security |
Switch Management Security | Support enabling and disabling TELNET, SSH, WEB and SNMP services Support TELNET, SSH, WEB and SNMP services to bind to standard IP ACLU Support for limiting the number of TELNET connections |
CPU Protection | The switch's own security protection prevents large data streams from attacking the switch itself. |
AAA | Support 802.1x Support RADIUS Supports authentication, authorization, and accounting through RADIUS server Support port-based and MAC-based 802.1x Support 802.1x guest VLAN |
IP MAC Binding | Support static configuration of IP, MAC and port binding |
DHCP SNOOPING | Support dynamic ARP binding to prevent ARP spoofing Support dynamic IP, MAC and port binding Support fixed port to connect to DHCP server to prevent private connection to DHCP server |
Prevent ARP Spoofing | Support manually configuring MAC CARP-based ACL rules to prevent ARP spoofing. Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing. |
IPv6 |
IPv4/IPv6 Dual Protocol Stack | Support |
IPv6 Address | Support manual address configuration, stateless address auto-configuration and fateful address configuration obtained through DHCPv6 client |
IPv6 Neighbor Discovery | Support |
ICMPv6 | Support |
IPv6 Path MTU Discovery | Support |
Debugging |
PING | Support |
PING6 | Support |
TRACEROUTE | Support |
TELNET Client | Support TELNET client based IPv4 and IPv6 |
SSH Client | Support SSH client based IPv4 and IPv6 |
TWAMP | Support TWAMP server and session-reflector |
