Name: Industrial Unmanaged Ethernet Switch 16x10/100Base-TX
Brand: Lanao Communication Technology Limited.
Availability: InStock

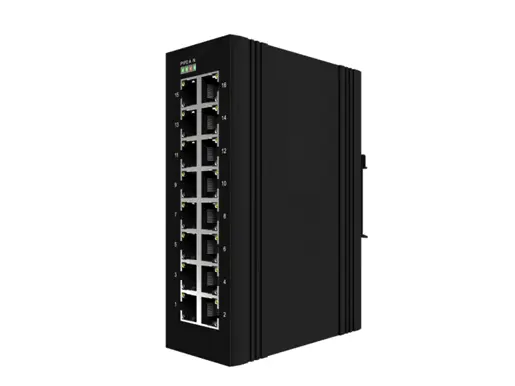

Industrial Unmanaged Ethernet Switch 16x10/100Base-TX

IDSM-0016F-Z6

IDSM-0016F-Z6 16-port unmanaged industrial Fast Ethernet switch with 10/100Base-TX, fanless, wide temperature range, lightning protection, delivering reliable, cost-effective industrial networking for harsh environments.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-IS6N-F0016-Z is 16x10/100Base-TX unmanaged industrial fast ethernet switches. Through fan-less cooling circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent performance such as high/low temperature resistance and lightning protection. Industrial-grade quality; greatly improves networking flexibility and enhances the reliability and security of industrial networks. It can better meet the deployment requirements in rail transit, safe cities, intelligent transportation, outdoor monitoring and other harsh environments.

Provider Mode Ports
Fixed Port	16*10/100Base-TX
Power Interface	Phoenix terminal, dual power supply redundancy
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e, CAT6)
Network Topology
Ring Topology	Not Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-58V(non-PoE)
Total Power Consumption	＜10W
Layer 2 Switching
Switching Capacity	32G
Packet Forwarding Rate	2.38Mbps
MAC Address Table	8K
Buffer	2M
Forwarding Delay	< 10us
MDX/MIDX	Support
Jumbo Frame	Support 10Kbytes

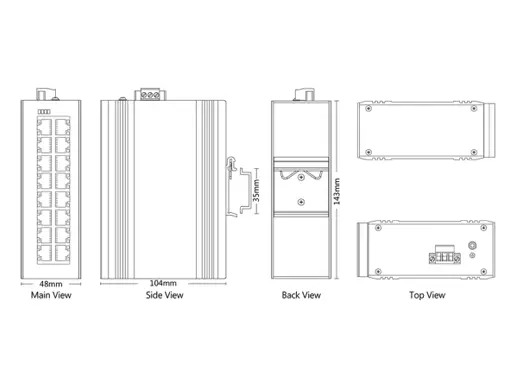

Mechanical Dimensions
Product S ize	14310448mm
Installation Method	DIN-rail
Weight	0.5 KG
Environment
Operating T emperature	-40℃~+75℃
Storage T emperature	-40℃~+85℃
Relative H umidity	5%~95% (non-condensing)
Thermal M ethods	Fan-less design, Natural Heat Dissipation
MTBF	100,000 hours
EMC & Ingress protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level X(6KV/6KV)(8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 4(4KV/4KV)(10/700us)
RS	IEC 61000-4-3 Level 3(10V/m)
EFI	IEC 61000-4-4 Level 3(1V/2V)
CS	IEC 61000-4-6 Level 3(10V/m)
PFMF	IEC 61000-4-8 Level 4(30A/m)
DIP	IEC 61000-4-11 Level 3(10V)
ESD	IEC 61000-4-2 Level 4(8K/15K)
Free Fall	0.5m
Authentication
Certification	CE, FCC, RoHS

● Input Voltage: DC12-58V

● Operating Temperature: -40℃~ +75℃

● Shell: IP40 protection, Fan-less design

● Test Report: CE, RoHS, FCC

Ordering Information
IDSM-0016F-Z6	Industrial Ethernet Switch 16x10/100Base-TX
