Industrial L2+ Managed Switch 8x10/100/1000 Base-T, 2x1000 Base-X Single Power Input AC100~240V or DC100~240V Optional

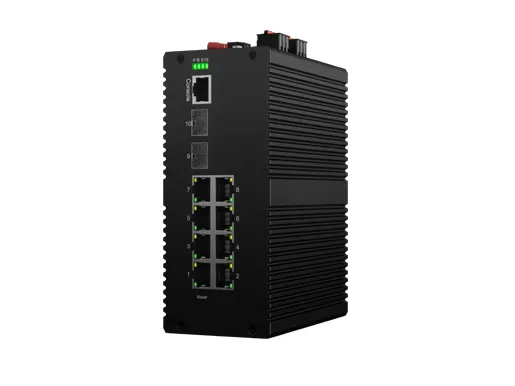

The IDSL3LM-02S08G-AC-Z7 is a high-performance managed industrial Ethernet switch, featuring 2xGigabit SFP optical ports and 8x10/100/1000Base-T Gigabit electrical ports. It is engineered with industrial-grade reliability, including a fanless heat dissipation design, wide operating temperature range, and IP40 protection rating, enabling it to withstand extreme conditions such as high/low temperatures, electrostatic interference, and surges. The switch integrates rich switching and security protocols, and supports Ethernet Ring Protection Switching (ERPS) for public Ethernet, significantly enhancing network flexibility, reliability, and security. It is ideally suited for deployment in harsh environments such as rail transit, safe city projects, intelligent transportation systems, and outdoor monitoring.

Features

• Equipped with 2x1000Base-X (Gigabit SFP optical ports) and 8x10/100/1000Base-T (Gigabit electrical ports) as fixed service ports; supports a Console port for device management.

• Supports a wide input voltage range: AC 100~240V or DC 100~240V; total power consumption is less than 10W.

• Boasts IP40 ingress protection rating and a fanless design, relying on natural heat dissipation for stable operation.

• Achieves a Mean Time Between Failures (MTBF) of 100,000 hours.

• Provides electrostatic discharge (ESD) protection of 8KV~15KV.

• Delivers a switching capacity of 36G and a packet forwarding rate of 26.78Mpps.

• Features a 16K MAC address table, 12M packet buffer, and forwarding delay of less than 10us.

• Supports up to 4K VLANs, automatic MDI/MDIX polarity correction, flow control, and Jumbo Frames (up to 10Kbytes).

• Supports Spanning Tree Protocol variants: STP, RSTP, and MSTP, along with Ethernet Ring Protection Switching (ERPS) for ring network redundancy.

• Supports link aggregation (up to 64 groups) and IGMP Snooping for efficient multicast traffic management.

• Enables port mirroring (both SPAN and RSPAN), port loopback detection, storm control, and real-time interface traffic statistics.

• Offers QoS capabilities, including traffic re-marking, priority mapping, SP/WRR queue scheduling, inbound/outbound rate limiting, and flow-based QoS.

• Includes comprehensive security features: 802.1X authentication, MAC authentication, port security, IP Source Guard, DHCP snooping, DDoS attack protection, and up to 240 ACL rules (supporting IPv4 ACL, IPv6 ACL, MAC-extended ACL, and L4 ACL).

• Supports Layer 3 functions: IPv4/IPv6 static routes (up to 256 routes), ARP entry aging, and a built-in DHCP server.

• Supports QINQ, RMON, NTP client, DHCP client, Ping/tracert network detection, Dying gasp, Digital Diagnostic Monitoring (DDM), device scanning, and port isolation.

• Complies with EMC standards: IEC 61000-4-5 (power surge protection: Level X, 4KV/4KV, 1.2/50us; Ethernet port surge protection: Level 4, 4KV/4KV, 10/700us); IEC 61000-4-3 (radiated immunity: Level 3, 10V/m); IEC 61000-4-4 (electrical fast transient immunity: Level 3, 1V/2V); IEC 61000-4-6 (conducted immunity: Level 3, 10V/m); IEC 61000-4-8 (power frequency magnetic field immunity: Level 4, 30A/m); IEC 61000-4-11 (voltage dips: Level 3, 10V).

• Supports multiple network topologies: ring, star, bus, tree, and hybrid topology.

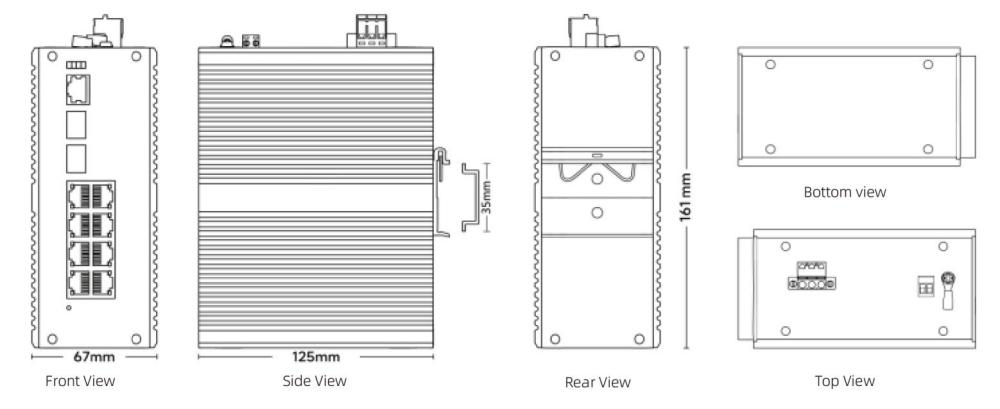

• Features compact mechanical dimensions: 67125161mm; supports DIN rail mounting; net weight is 1.01KG.

• Offers diverse management methods: CLI, Telnet/SSH, web-based management, and SNMPv1/v2c/v3.

• Supports user management and permission control, system log recording, configuration file upload/download, and firmware upgrade.
