Name: Miniature Converter Multi-mode to Single-mode 125M~11.7G
Brand: Lanao Communication Technology Limited.
Availability: InStock

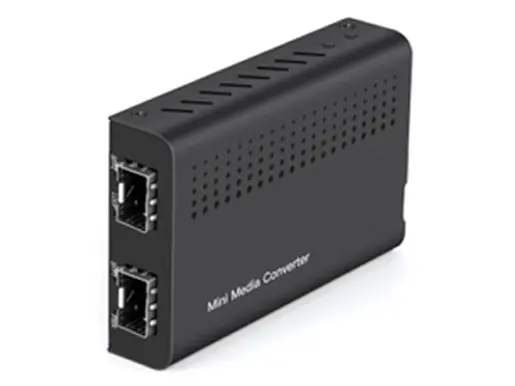

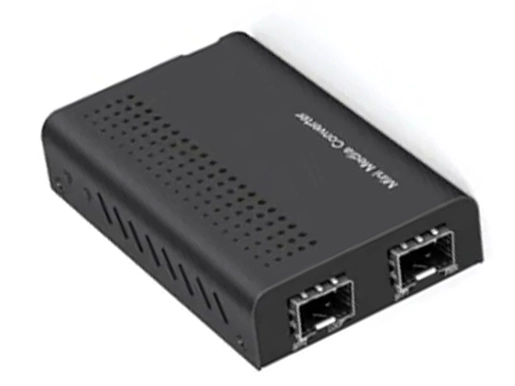

Miniature Converter Multi-mode to Single-mode 125M~11.7G

LA-MC2N-10G0200

This compact device enhances communication capacity, expands bandwidth, and delivers a cost-effective, high-performance solution for efficient network management, operation, and scalability in modern telecommunications and data networks.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-MC2N-10G0200 is high-performance 125M~11.7G optical signal Repeater, using Optical - Electrical - Optical wavelength conversion, realize the optical signal equilibrium amplyﬁer, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single ﬁber by single or multiple way over a long distance.

In the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

PART NO	LA-MC2N-10G0200
Transmission Mode	125Mb/s - 11.7Gb/s
Standards	IEEE 802.3an (10GBase-T), 802.3ae(10GBase-SR, LR, ER or ZR)
Transmission Distance	SFP+
Transmission Distance	Fiber: MM 500m/2km, SM: 20/40/60/80/120km
DIP Switches	ALS (optional)
	LFP (optional)
	Loop (optional)
Power Adapter	Adapter with AC 100-240V input, 0.5A
Power Adapter	AC frequency: 50-60Hz, Output DC 5V/1A
Power Requirements	DC 5-12V, 7W max. power consumption
Maximum Packet Forwarding Rate	14,880,950/S
Environmental Requirement	Operating Ambient Temperature: 0 to 50℃
	Operating Humidity: Maximum 85%, Non-condensing
	Storage Temperature: -30 to 70℃
	Storage Humidity: Maximum 95%, Non-condensing
	Indoor rated operating device
Casing Material	Iron
Net Weight	130g
Dimensions (DWH)	90mm × 60mm × 20mm (SFP not included)
MTBF	65,000 hours
Warranty	1 Year
Emissions	FCC Class A, CE Class A

Ordering Information
LA-MC2N-1U12	Miniature High Density Chassis 12-Slot Miniature Media Converter Rack

Date	Version	Description			Download
2025-03-14		LA-MC2N-10G0200
