Name: Layer 3 Lite Managed Ethernet Switch 2xGigabit SFP 8x10/100/1000Base-T
Brand: Lanao Communication Technology Limited.
Availability: InStock

Layer 3 Lite Managed Ethernet Switch 2xGigabit SFP 8x10/100/1000Base-T

CSL3LR-02S08G-Z

CSL3LR-02S08G-Z is a Layer 3 Lite managed switch with 8x Gigabit RJ45 ports and 2x 1G SFP optical interfaces, offering wire-speed forwarding, auto-rollover, QoS, and reliable data transmission for enterprise networks.

Overview

Specifications

Connectivity Solutions

Models

Resources

CSL3LR-02S08G-Z is Layer 3 Lite managed switch with 8x10/100/1000Mbps adaptive RJ45 ports and 2x1000Mbps SFP optical interfaces. Each RJ45 port supports auto-rollover and wire-speed forwarding capabilities. The store-and-forward method is used, combined with QoS technology, to ensure that bandwidth is effectively allocated to each port and provides stable and reliable data transmission.

Features

Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
Support port auto flip (Auto MDI/MDIX)
Panel indicator monitoring the status and help failure analysis
Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
Support WEB, TELNET, CLI, SSH, SNMP, RMON management
Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact

Provider Mode Ports
Fixed Port	21000Mbp Base-X, 810/100/1000 Base-T
Management Port	Support Console

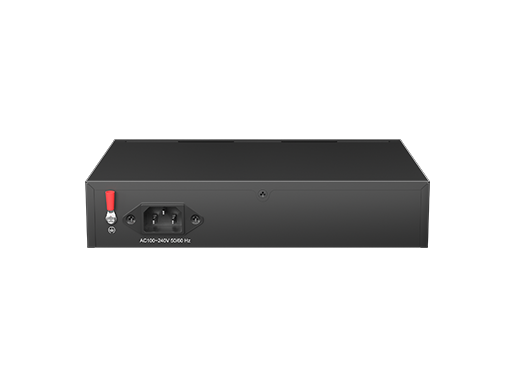

Power Interface	AC triangular seat
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e, CAT6)
Mono-mode Optical Fiber	20/40/60/80/100KM
Multi-mode Optical Fiber	550m
Network Topology
Ring Topology	Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	AC100~240V, 50/60Hz
Total Power Consumption	≤10W
Layer 2 Switching
Switching Capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
MAC Address Table	8K
Buffer	4.1M
Forwarding Delay	<10us
VLAN	256
GVRP	Support
Protocol VLAN	Support
Voice VLAN	Support
Surveillance VLAN	Support
MAC VLAN	Support
Ethernet Channel/ 802 .3ad	Support
LACP	Support
Interface Speed	Support
Duplex Mode	Support
Flow Control	Support
Jumbo Frame	Support
DHCP Client	Support
SNTP Client	Support
Port Statistics	Support
Protected Ports	Support
EEE	Support
Ethernet Ring Protection Switching	Support
LLDP	Support
LLDP 802.1 TLV	Support
MSTP / RSTP / STP	Support
STP BPDU Filter	Support
STP BPDU guard	Support
STP Port Fast	Support
IGMP Snooping	Support
MLD Snooping	Support
MVR	Support
DHCP Interface Priority IP Binding	Support
Device Scan	Support
Layer 3 Route
IPV4 Management Address	Support
IPV6 Management Address	Support
Static Routes IPv4	Support
Static Routes IPv6	Support
ARP	Support
Loopback Interface	Support
DHCP Server	Support
DNS Server	Support
DNS Client	Support
Convergence & Equipment Diagnosis
ACL	Support MAC standard/expand ACL Support IPv4 standard/expand ACL Support IPv6 standard/expand ACL
QoS	Support QoS re-marking, port trust Support port rate limiting Support egress rate-limited Support SP, WRR queue scheduling Support COS mapping, DSCP mapping, IP priority mapping
Equipment Diagnosis	Support Console/RAM/Flash Log Support Port mirroring 1:1 or 1:M Support Ping Support Trace-route Support Copper test Support Optical transceiver DDM Support UDLD protocol
Management & Security
CLI / Console	Support
RMON	Support
WEB Management	Support
SNMP	Support SNMPv1/v2c/v3
User Management	Support
System Log	Support
Configuration File Download/ Upload Telnet/SSH	Support
Upgrade Firmware	Support
Security	Support managing channel configuration Support AAA/802/1X/MAC-Based/WEB-Based authentication Support DoS attack prevention Support dynamic ARP check Support DHCP Snooping Support IP Source Guard Support port Security Support port Isolation Support storm control
Environment
Operating Temperature	-10℃~+50℃
Storage Temperature	-40℃~+85℃
Relative Humidity	10%~90% (non-condensing)
Thermal Methods	Fan-less design, natural heat dissipation
MTBF	100,000 hours

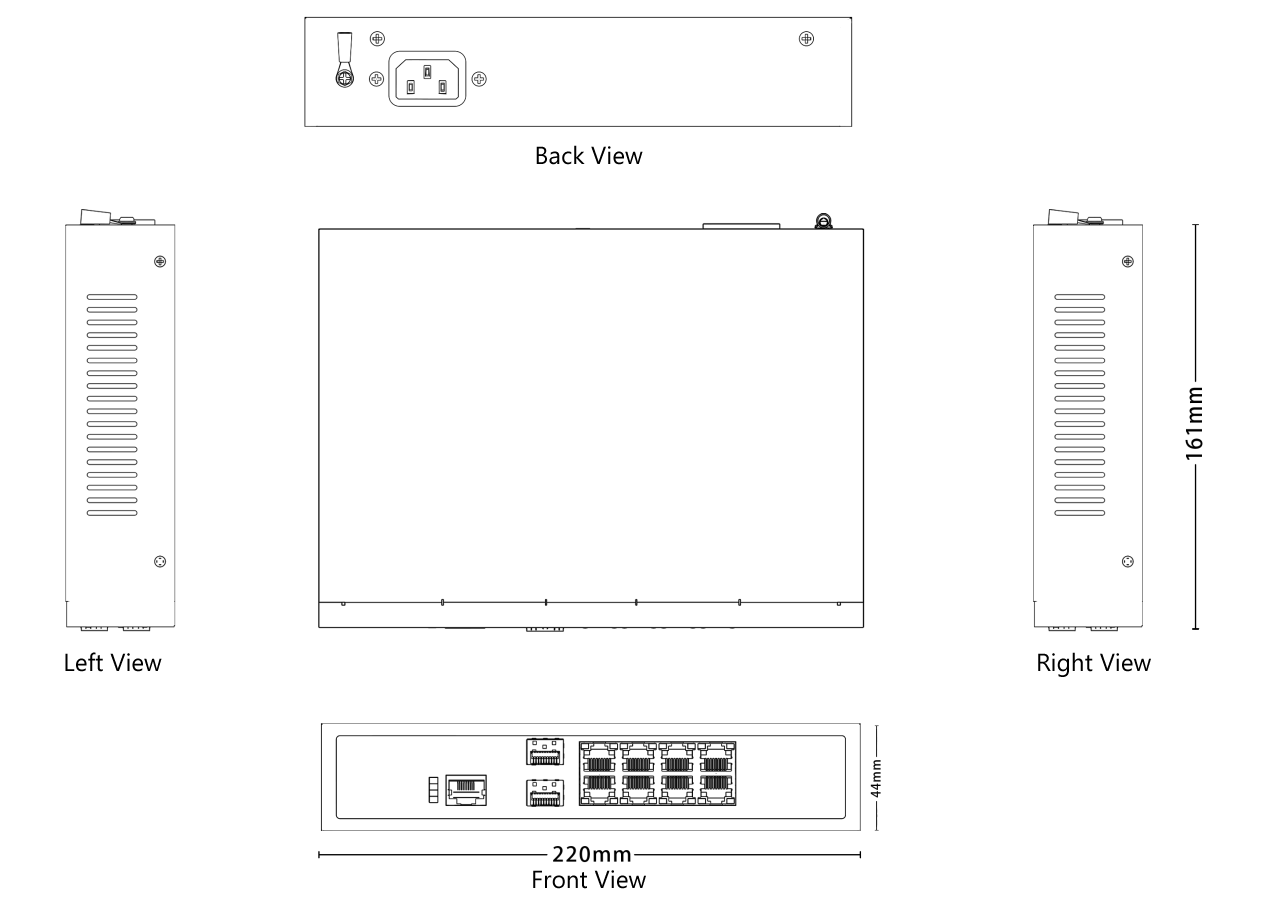

Mechanical Dimensions
Product Size	22016144mm
Installation Method	Desk-top
Weight	0.97KG
EMC & Ingress Protection
Surge Protection of Power	IEC 61000-4-5 Level 4 (6KV/2KV)
Surge Protection of Ethernet port	IEC 61000-4-5 Level 4 (4KV/2KV)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Free Fall	0.5m
Certificate
Security Certificate	CE, FCC, RoHS
