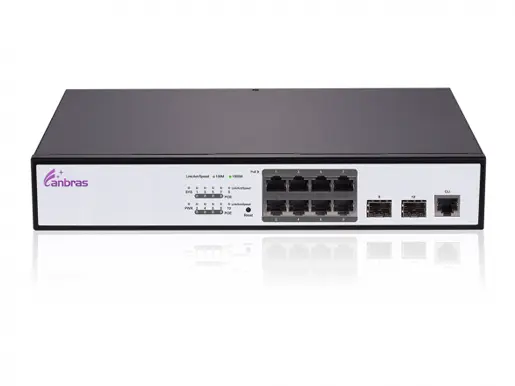

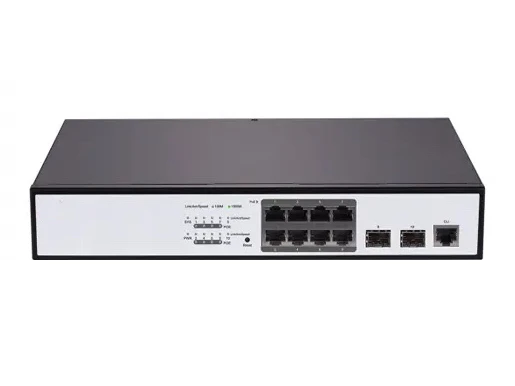

Managed Ethernet Switch with 8×GE PoE ports, 2×100/1000M SFP ports

Name: Managed Ethernet Switch with 8×GE PoE ports, 2×100/1000M SFP ports
Brand: Lanao Communication Technology Limited.
Availability: InStock

CSL2R-02S08GP-B

CSL2R-02S08GP-B is a next-generation intelligent Layer 2 PoE access switch for carrier IP MAN and enterprise networks, providing Gigabit Ethernet switching, reliable PoE power, advanced L2 management, and secure, stable network connectivity.

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

CSL2R-02S08GP-B is a new-generation intelligent PoE access switch designed for carrier's IP MAN and enterprise networks. Based on new-generation high-performance hardware and platform, supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet requirement of any complicated scenarios.

PART NO	CSL2R-02S08GP-B
Interface	8×GE PoE ports, 2×100/1000M SFP ports
Console	1 RJ45 port, 1 RST button
Backplane	20 Gbps
Forwarding rate	15 Mpps
PoE power budget	130W
Total output BTU (1000BTU/H=293W)	511.95
Fan number	/
Noise@25°C(dBA)	0
MTBF(H)	>50,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size (MB)	4.1
Jumbo frame	9K
Total SVI	10
Power supply	AC:100V-240V, 50/60Hz 150W
Power consumption
No-load	<7W
Full-load	142.5W
Chassis
Dimensions (W x D x H) (mm)	280x180x44
Weight (KG)(empty)	1.6
Package
Dimensions (W x D x H) (mm)	346x289x92
Weight (KG)	2.4

Ordering Information
CSL2R-02S08GP-B	Ethernet PoE switch with 10 GE ports (1 console port, 8 GE PoE ports, 2× 100/1000M SFP ports, 1 standard AC220V power supply, 150W fanless,1U, rack-mounted installation)

Date	Version	Description			Download
2025-03-10		Datasheet_CSL2R-02S08GP-B
