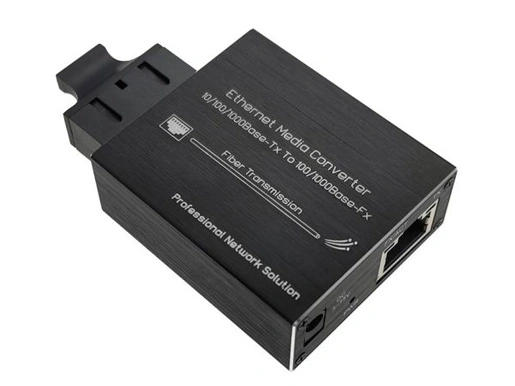

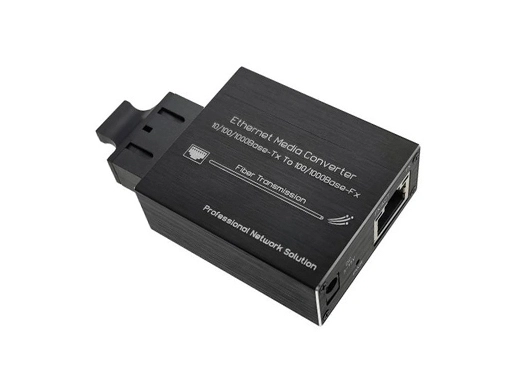

Name: Micro Gigabit Media Converter
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-MC1N-G0101XMicro 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20km (Up to 120km) via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

This media converter is super mini in size, it’s easy to install and integrated in other equipment. It supports both 100M and 1000M on fiber port, that makes it compatible with more devices.

P/N	LA-MC1N-G0101XMicro-20
Access mode	10/100/1000Mbps Gigabit Ethernet
	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast
Standard	Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto
Fiber Port	detection)
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)


Conversion means	Media conversion
LFP	Not Support
BER	<10-9
MTBF	100,000 hours
LED indicator	PWR (Power supply)
	TX (LINK100/1000, TP cable rate 100/1000M)
	FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V
Power consumption	3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

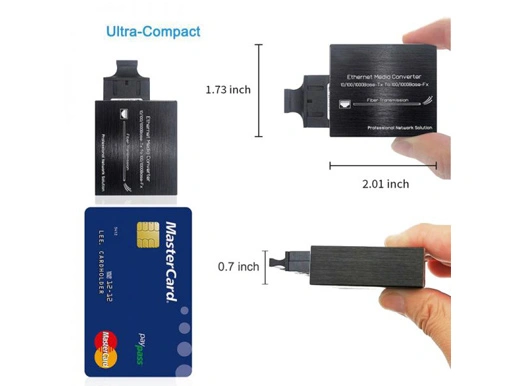

Dimensions (W x D x H)	62 x 44 x 18 mm

Features

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Micro type design
Supporting full-duplex and half-duplex and its auto-sensed
Support 9k jumbo frame
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

Ordering Information
LA-MC1N-G0101XMicro	Micro Gigabit Media Converter, SM, Duplex, 1310nm, 20km with AC to USB Adaptor and DC to USB Power Cord
