Name: Industrial Media Converter Layer 3 Lite Managed
Brand: Lanao Communication Technology Limited.
Availability: InStock

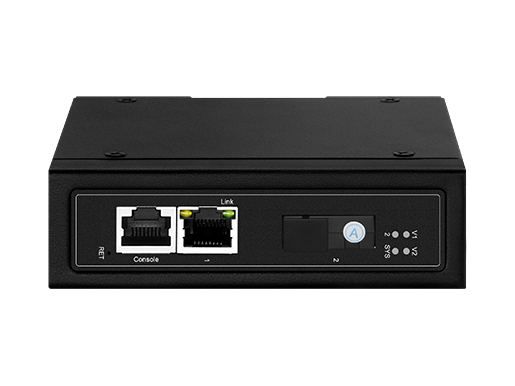

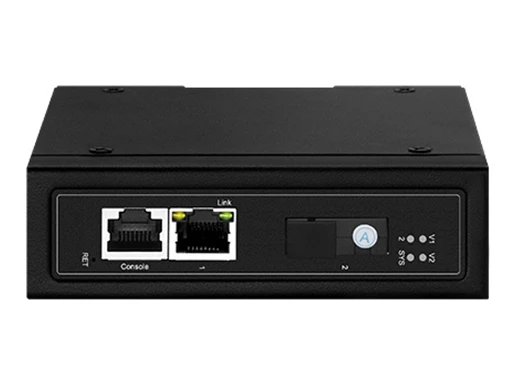

Industrial Media Converter Layer 3 Lite Managed

IMCL3LR-01S01G-SD20-S

This industrial-grade media converter features a Layer 3 Lite managed Realtek solution, supporting single-mode dual-fiber transmission up to 20km, with 1 fiber and 1 Ethernet port, delivering reliable, long-distance connectivity, SNMP monitoring, and stable performance for harsh industrial networking environments.

Overview

Specifications

Connectivity Solutions

Models

Resources

This industrial-grade media converter features a robust Layer 3 Lite managed Realtek solution, offering reliable long-distance transmission with a single-mode dual-fiber port (20km range). It includes 1 fiber port and 1 Ethernet ports, supporting SNMP for remote monitoring and management. Designed for harsh environments, this non-PoE converter ensures stable performance and seamless integration in industrial networking applications.

Features

High Performance and Bandwidth
Support 10Base-T, 100Base-TX, 1000Base-TX
Support SNMP v1, v2c, v3
Jumbo frame up to 12KB
Advanced Protection and Compliance

Model No.	IMCL3LR-01S01G-SD20-S
Product Name	L3 Lite Managed 1GE+ 1SFP Industrial grade Switch
Fixed Port	110/100/1000Base-TX port 11000M single model dual fiber 20km
CPU	MIPS-400MHz
DDR	1G DDR3
FLASH	128MBytes
RAM	128MBytes
Bandwidth	20Gbps --
Packet Forwarding	14.88Mpps
MAC	8K
Buffer	4.1Mbit SRAM Packet Buffer
Jumbo Frame	Jumbo frame up to 12KB
VLAN Address	4K
LED Indicator	Port:1 LINK LED Port:3 SFP LED V1: DC 1 IN; V2: DC 2 IN PW: POWER+SYS LED
Power	2 groups DC POWER in Support reverse polarity protection DC12-57V MAX 10W
Operating Temperature/Humidity	-40～+80°C;5%～90% RH Non coagulation
Storage Temperature/Humidity	-45～+85°C;5%～95% RH Non coagulation
Product /Packing Size（LWH）	1009035mm 20013040mm
N.W/G.W（kg）	0.3/0.41kg
Lightning Protection Level	6KV 8/20us; IP40
Installation	DIN
Certificate	CE-EMC EN55032;CE-LVD EN62368; FCC Part 15 Class B;RoHS;
Warranty	Whole device for 1 year(Accessories not included)

Dimension

P/N	Description
IMCL3LR-01S01G-SD20-S	Industrial Media Converter – Layer 3 Lite Managed

Date	Version	Description			Download
2025-03-14		Datasheet_Industrial Media Converter – Layer 3 Lite Managed(Realtek) 1x1G RJ45, 1x1G SD20, IMCL3LR-01S01G-SD20-S_1.1 SH
