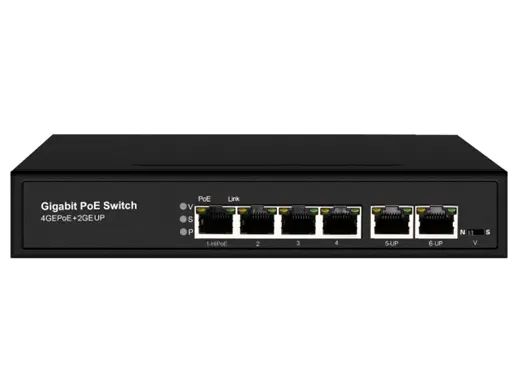

Name: Unmanaged 6 Ports Full Gigabit PoE Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

6-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip, The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

4 Gigabit PoE Ports + 2 Gigabit RJ45 Ports Uplink;

Comply with IEEE 802.3, IEEE 802.3u,

IEEE802.3ab, IEEE802.3z standards;

Port 1 supports BT 90W;

Ethernet port 10/100/1000M rate auto adaptive;

Support Port Auto-flip (Auto MDI/MDIX);

AI DIP Function

N: Standard normal;

V: Port isolation;

S: Super mode, Extension 250M

PoE Watchdog

Model No.	LA-SWAI-G0006PB-S65w
Product Name	Unmanaged 6 Ports Full Gigabit PoE Switch
	410/100/1000Base-TX PoE port（Data/Power） 210/100/1000Base-TX uplink RJ45 port (Data)
Fixed Port
	1 port supports IEEE802.3af/at/poe++/bt, max. 90W PoE out 2-4 port support IEEE802.3af/at, max. 30W/port, PoE out
PoE Ports
PoE Pin	af/at: 12+ 36-; af/at/poe++/bt: 12+ 45+ 36- 78-
PoE Budget	Max. 65W
PoE Dog	Support PoE auto execution, detection and reset fault device, when PoE is on
	N: Standard normal V: Port isolation
DIP	S: Super mode, Extension 250M
Bandwidth	10Gbps
Packet Forwarding	8.93Mpps
MAC	2K
Buffer	2.5M
	10BASE-T: Cat3,4,5 UTP (≤250 meters)
Transmission Distance	100BASE-TX: Cat5 or later UTP (150 meters) 1000BASE-TX: Cat6 or later UTP (150 meters)
	P: Power LED (over-power LED)
	Uplink: Link LED=10/100M Link, 1000M=Gigabit Link Port: Orange=PoE LED, Green=LAN Link LED
	V: Port isolation LED S: Super mode LED
LED Indicator
Power	Built-in power AC: 100-240VAC, 50-60Hz, 0.9A, Max. 68W
Operating Temperature/Humidity	-10～+55°C; 5%～90% RH Non-condensation
Storage Temperature/Humidity	-40～+75°C; 5%～95% RH Non-condensation
Product/Packing Size (LWH)	190mm130mm35mm /265mm220mm68mm
N.W/G. W (kg)	0.7kgs/1.0kgs
Package	550455365mm/21.05KGs/20PCs
Lightning Protection Level	6KV 8/20us; IP30
Installation	Desktop
Certificate	CE-EMC EN55032; CE-LVD EN62368; FCC Part 15 Class B; RoHS
Warranty	1 year

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
