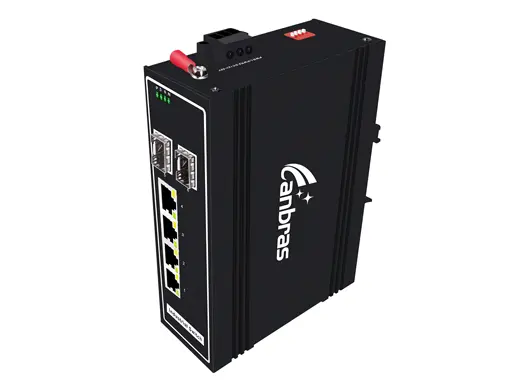

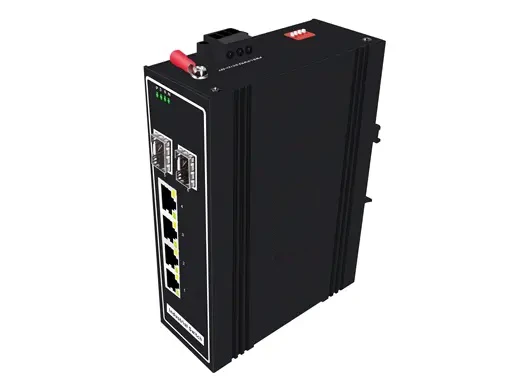

Name: Industrial Unmanaged Switch 2x1000Base-X, 4x10/100/1000Base-T (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Unmanaged Switch 2x1000Base-X, 4x10/100/1000Base-T (PoE Optional)

IDSAIM-02S04G-Z4

Through fanless heat dissipation design, a wide operating temperature range of -30°C to 75°C, and high protection level, it ensures reliable, stable, and efficient performance in harsh industrial environments.

Overview

Specifications

Connectivity Solutions

Models

Resources

This device 2*1000Base-X, 4*10/100/1000Base-T Industrial Ethernet Switch. Through the fanless heat dissipation circuit design, wide range of working environment temperature -30°C~75°C, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NO	IDSAIM-02S04G-Z4
Provider Mode Ports
Fixed Port	21000Base-X, 410/100/1000Base-T
Power Interface	Phoenix terminal, dual power supply
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-58V
Total Power Consumption	Non PoE<5W
Layer 2 Switching
Switching Capacity	20G
Packet Forwarding Rate	14.88Mpps
MAC Address Table	16K
Buffer	2M
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	10K bytes
Environment
Operating Temperature	-30℃~75℃
Storage Temperature	-30℃~75℃
Relative Humidity	5%~90% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	14310446mm (W×H×D)
Installation Method	DIN-rail
Weight	0.54KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
EMI	CLASS A
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free Fall	0.5m
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSAIM-02S04G-Z4	21000Base-X SFP fiber port, 410/100/1000M RJ45 Port

Date	Version	Description	Download
2025-03-12		LA-IS4N-G0204
2025-03-12		LA-IS6N-G0204
