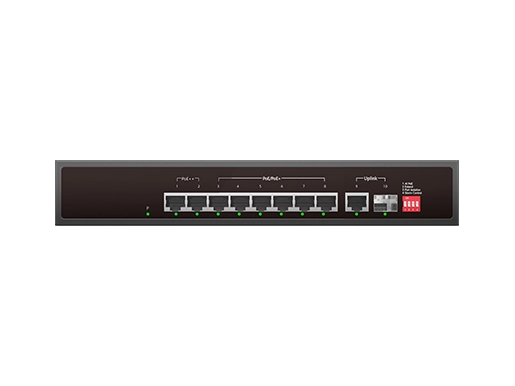

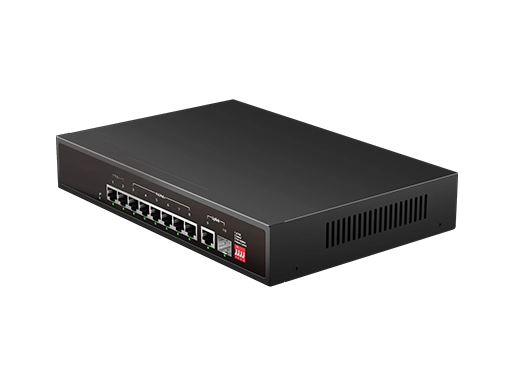

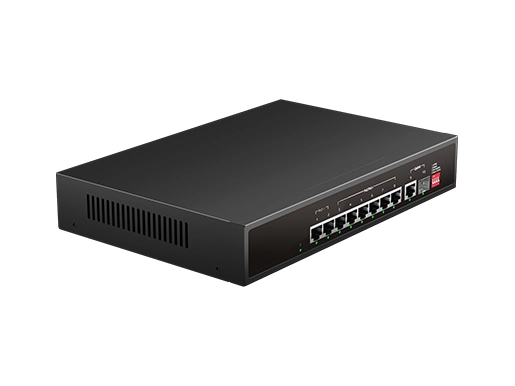

Name: Unmanaged AI PoE Switch 9x10/100/1000Base-T(8xPoE, Port1-2 BT90w), 1x1000Base-X
Brand: Lanao Communication Technology Limited.
Availability: InStock

Unmanaged AI PoE Switch 9x10/100/1000Base-T(8xPoE, Port1-2 BT90w), 1x1000Base-X

CSAIR-01S09GHP-Z

CSAIR-01S09GHP-Z is an 8x10/100/1000Base-T PoE + 1x10/100/1000Base-T+1x1000Base-X Ethernet Switch, providing seamless network connectivity. It supports automatic detection and power supply for devices that comply with IEEE802.3af, IEEE802.3at, and IEEE802.3bt standards. PoE (Power over Ethernet) enables the transmission of both data and DC power to IP-based devices (e.g., IP phones, wireless access points, network cameras). These powered devices receive DC power via PoE. The device offers easy installation and maintenance, along with rich business features, helping users build a secure and high-performance network. For those seeking advanced connectivity options, this Ethernet switch doubles as an AI PoE switch, providing intelligent management and power allocation to optimize network efficiency.

Overview

Specifications

Connectivity Solutions

Models

Resources

Features

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at/bt standards
Ethernet port supports 10/100/1000M adaptive and PoE functions
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard
Support Port Auto-flip (Auto MDI/MDIX)
Automatically supplied to adaptive devices
Support PoE Watchdog Function
Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.

Provider Mode Ports
Fixed Port	9x10/100/1000Base-T+1x1000Base-X
Power Interface	AC Interface
Led Indicators	P, link/active
Optical Fiber Interface	SFP
Cable Type & Transmission Distance
Twisted-Pair	0-100m/250m
Single Mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550M
Network Topology
Ring Topology	Not Support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	AC100~240V 50/60Hz
Mainboard Power	≤7W
Total Power Consumption	≤120W
PoE Support
PoE Standard	802.3af, 802.3at
Pin Assignment	1, 2+/3, 6-
PoE Port	1-8
PoE++ Support
PoE Protocol	802.3af, 802.3at, 802.3bt;
Pin Assignment	1, 2, 4, 5+; 3, 6, 7, 8-
PoE Port	1-2(90w)
DIP Switch
1- PoE Watchdog	When the switch port communication fails, the corresponding port POE will automatically detect and restart, restore network communication by itself, and reduce manual intervention and maintenance.
2- Extension 250m	It adopts data extension mode and breaks through the limit of 100 meters. It can provide 10Mbps rate and 250 meters long-distance power transmission, and solve the project power supply such as monitoring engineering and wireless coverage. The problem of insufficient distance can replace the extender and part of the fiber, expand the scope of equipment and reduce engineering costs.
3- Port Isolation	The PoE ports of the switch cannot communicate with each other, and can only communicate with Uplink ports. It effectively suppresses network storms, prevents virus propagation and network attacks, and improves network performance.
4- Storm Control	Storm control enables the switch to monitor traffic levels and to drop broadcast, multicast, and unknown unicast packets when a specified traffic level – called the storm control level – is exceeded, thus preventing packets from proliferating and degrading the LAN
Layer 2 Switching
Switching Capacity	20G
Packet Forwarding Rate	14.88Mpps
MAC Address Table	2K
Buffer	12K bytes
Forwarding Delay	<10us
MDX/MIDX	Support
Jumbo Frame	Support 9K bytes
Storm Control	Support
Environment
Operating Temperature	-10℃~+50°C
Storage Temperature	-40℃~+70℃
Relative Humidity	10%~90% (non-condensing)
Thermal Methods	Fan-less, natural cooling
MTBF	100,000 hours
EMC & INGRESS PROTECTION
Surge Protection of Power	Common Mode 6KV, Differential Mode 2KV
Surge Protection of Ethernet Port	Common Mode2KV, Differential Mode 2KV
ESD	Contact 8K, Air 15K
Free Fall	0.5m
Mechanical Dimensions
Product Size (L x W x H)	270x181x44mm
Installation Method	Desktop
Weight	1.1KG
Packing Info	10pcs, 16kg, 39x35.5x47.5cm
Certification
Certificates	CE, FCC, RoHS

Dimension

P/N

Description

CSAIR-01S09GHP-Z

Unmanaged AI PoE Switch

9x10/100/1000Base-T (8xPoE, Port1-2 BT90w), 1x1000Base-X

Total Power Consumption 120w
