Name: High Density Chassis 12-Slot Miniature Media Converter Rack
Brand: Lanao Communication Technology Limited.
Availability: InStock

High Density Chassis 12-Slot Miniature Media Converter Rack

LA-MC2N-1U12

This 1U 12-slot media converter rackmount chassis is cost-effective and reliable, supporting dual power input (DC48V/AC220V), ensuring stable operation, flexible deployment, and efficient centralized management for media converter systems.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-MC2N-1U12 is a High Density Chassis 12-Slot Miniature Media Converter Rack, which provides Miniatureature 10/100Base Fast Ethernet / 1000Base Gigabit Fiber Media Converter, Multi-mode to Single-mode Converter and SFP Fiber Media Converter, as well as 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based Miniature Media Converters. The Miniature Media converter is designed for Space Saving and powered by a single internal universal power supply, eliminating the need for the multiple power connections which associated with multiple converter installations.

The 1U 12 slots media converter rack mount chassis is cost effective and supports dual power DC48V/AC220V. Lanbras offers space saving Miniature Media Conversion in the wiring closet by providing a means for rack space while reducing the number of wall outlet power connections required. The Miniature Media Converters is hot-swappable, which can be removed from the rack, powered externally, and used as stand-alone units in new applications as your network needs change in the future.

PART NO	LA-MC2N-1U12

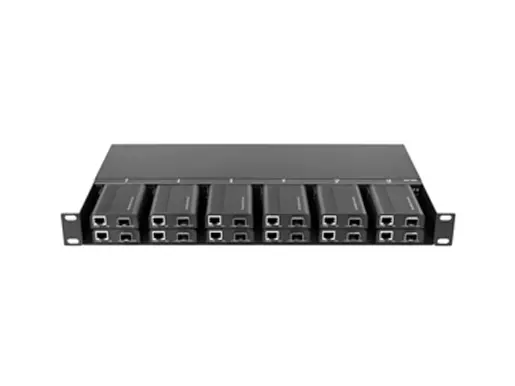

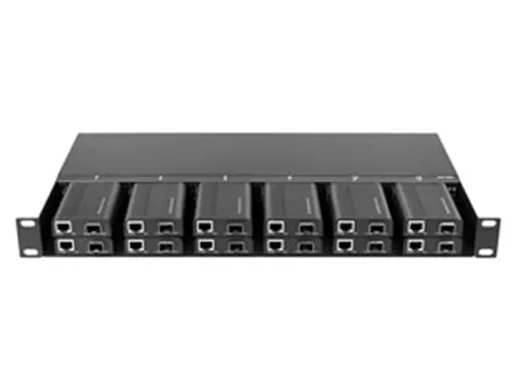

Front Side	12-solts in front for slide-in-modules

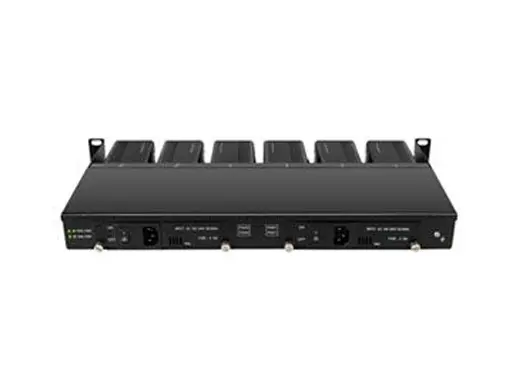

Back Side	Two fans and dual power supply AC 100-240V and DC36~72V redundant power
LED Indicators	Fan1, Fan2: Off – No fan operation; On (Red) – Fan active
LED Indicators	PWR1, PWR2: Off – No power available; On (Green) – Power is present
Connectors	Optional for Converters SFP, SFP+ slot, or RJ45 UTP ports
Connectors	AC power receptacle, DC power plug for installed power supplies
Standards	IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3ae, 802.3an
Dimensions (LWH)	480mm x 270mm x 44.5mm
Power Requirements	AC 100-240V or DC 36~72V, 40W max. power consumption
Environment	Operating Ambient Temperature: 0 to 50℃
	Operating Humidity: Maximum 85%, Non-condensing
	Storage Temperature: -20 to 70℃
	Storage Humidity: Maximum 90%, Non-condensing
	Indoor rated operating device
Chassis material	Black PVD painted steel
Shipping Weight	3.2Kgs (~7lbs) with dual PS installed
Mounting	19” rack direct installation
MTBF	80,000 hours
Warranty	1 Year
Compliance	FCC Class A, CE Class A

Ordering Information
LA-MC2N-10G0201	Miniature 10G Media Converter
LA-MC2N-10G0200	Miniature 125M~11.7G OEO Converter
LA-MC2N-G0202	Miniature SM to MM OEO Converter
LA-MC2N-G0201	Miniature 125M~1.25G OEO Converter
LA-MC2N-G0102	Miniature Full Gigabit 2x10/100/1000Base-TX to 100/1000Base-FX Media Converter
LA-MC2N-G0101	Miniature Full Gigabit 10/100/1000Base-TX to 100/1000Base-FX Media Converter
LA-MC2N-F0101	Miniature Fast Ethernet 10/100Base-TX to 100Base-FX Media Converter
LA-MC2N-1U12	Miniature High Density Chassis 12-Slot Miniature Media Converter Rack
