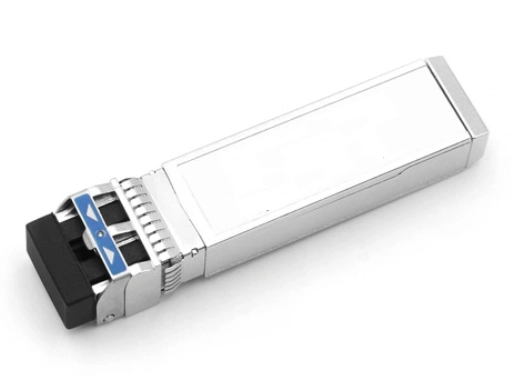

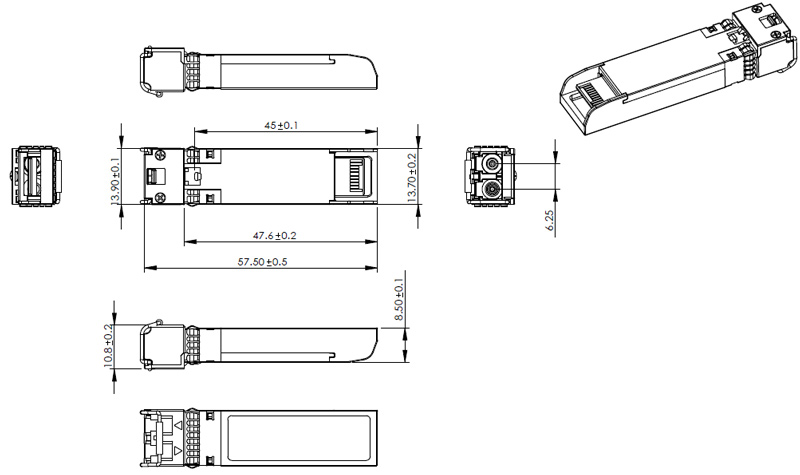

Name: 10Gb/s SFP+ CWDM 40km Transceiver
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

Features

● SFP+ package with LC connector
● DML CWDM DFB Laser and PIN-TIA photodetector
● Up to 40Km transmission on SMF
● Up to 11.3Gbps Data Links
● +3.3V single power supply
● Power dissipation<1.5W
● 2-wire interface with integrated Digital Diagnostic monitoring
● Low EMI and excellent ESD protection
● laser safety standard IEC-60825 compliant
● Compatible with RoHS
● Compliant with SFF-8472 SFP+ MSA
● Compliant to SFP+ SFF-8431 and SFF-8432

Absolute Maximum Ratings

Parameter	Symbol	Minimum	Maximum	Units
Storage Temperature	Tst	-40	+85	°C
Supply Voltage	Vcc	-0.3	+3.5	V
Operating Relative Humidity	RH	5	95	%

Operation Environment

Parameter	Symbol	Min	Typical	Max	Units
Supply Voltage	Vcc	3.15	3.3	3.45	V
Operating Case Temperature	Tc	0		+70	°C
Power Dissipation				1.5	W
Data Rate			10.3125		Gbps

Optical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Units
Transmitter Section
Center Wavelength	lo	1270		1370	nm
Spectral Width(-20dB)	Dl			1	nm
Average Output Power	Po	0		+5	dBm
Extinction Ratio	Er	3.5			dB
Side-Mode Suppression Ratio	SMSR	30			dB
Total jitter	Tj	IEEE 802.3ae
Receiver Section
Center Wavelength	lo	1270		1610	nm
Receiver Sensitivity	Rsen			-15	dBm
Receiver Overload	Rov	0			dBm
Return Loss		12			dB
LOS Assert	LOSA	-28			dBm
LOS Dessert	LOSD			-16	dBm
LOS Hysteresis		0.5		4

Electrical Characteristics

Parameter		Symbol	Min.	Typ.	Max.	Unit
Transmitter Section
Input Differential Impendence		Zin	90	100	110	Ohm
Data Input Swing Differential		Vin	180		700	mV
TX Disable	Disable		2.0		Vcc	V
TX Disable	Enable		-0.3		0.8	V
TX Fault	Assert		2.4		Vcc	V
TX Fault	Deassert		-0.3		0.8	V
Receiver Section
Output differential impendence		Zout	80	100	120	Ohm
Data Input Swing Differential		Vout	300		850	mV
Rx_LOS	Assert		2.0		Vcc	V
Rx_LOS	Deassert		-0.3		0.4	V

Diagnostics

Parameter	Range	Accuracy	Unit	Calibration
Temperature	0 ~ 70	±5	ºC	Internal
Voltage	3.15 ~ 3.45	±0.1	V	Internal
Bias Current	10 ~ 80	±2	mA	Internal
Tx Power	-2 ~ +5	±2	dBm	Internal
Rx Power	-16 ~ -3	±3	dBm	Internal

Pin Description

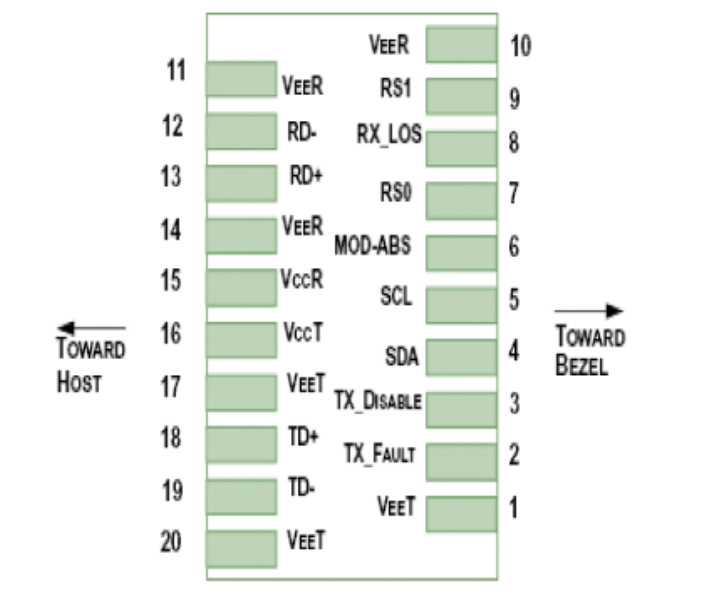

Pin Description of 10Gb/s SFP+ CWDM 40km Transceiver

Pins	Name	Description	NOTE
1	VeeT	Transmitter Ground
2	Tx Fault	Transmitter Fault Indication	1
3	Tx Disable	Transmitter Disable	2
4	MOD DEF2	Module Definition 2	3
5	MOD DEF1	Module Definition 1	3
6	MOD DEF0	Module Definition 0	3
7	RS0	Not Connected
8	LOS	Loss of Signal	4
9	RS1	Not Connected
10	VeeR	Receiver Ground
11	VeeR	Receiver Ground
12	RD-	Inv. Received Data Output	5
13	RD+	IReceived Data Output	5
14	VeeR	Receiver Ground
15	VccR	Receiver Power
16	VccT	Transmitter Power
17	VeeT	Transmitter Ground
18	TD+	Transmit Data Input	6
19	TD-	Inv. Transmit Data Input	6
20	VeeT	Transmitter Ground

Notes:

1. TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.

2. TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7k~10kΩ resistor. Its states are:

Low (0~0.8V): Transmitter on

(>0.8V, <2.0V): Undefined

High (2.0~3.3V): Transmitter Disabled

Open: Transmitter Disabled

3. MOD-DEF 0,1,2 is the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR.

MOD-DEF 0 is grounded by the module to indicate that the module is present

MOD-DEF 1 is the clock line of two wire serial interface for serial ID

MOD-DEF 2 is the data line of two wire serial interface for serial ID

4. LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates loss of signal. In the low state, the output will be pulled to less than 0.8V.

5. These are the differential receiver output. They are internally AC-coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES.

6. These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module.

Recommended Application Circuit

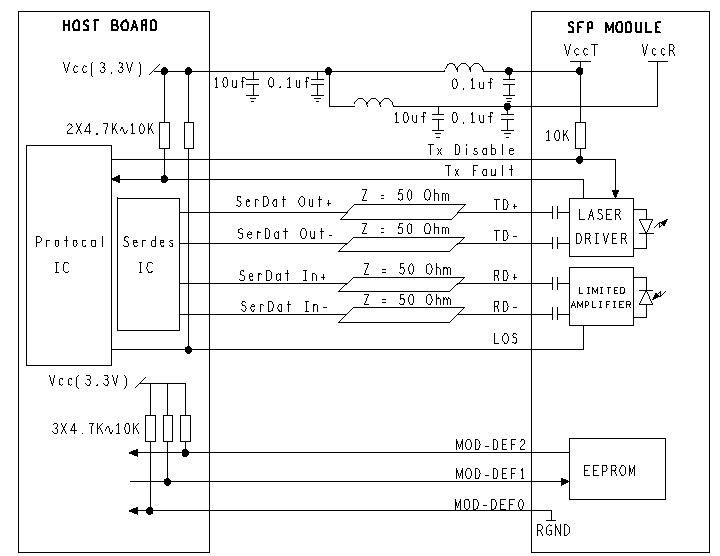

Recommended Application Circuit of 10Gb/s SFP+ CWDM 40km Transceiver
