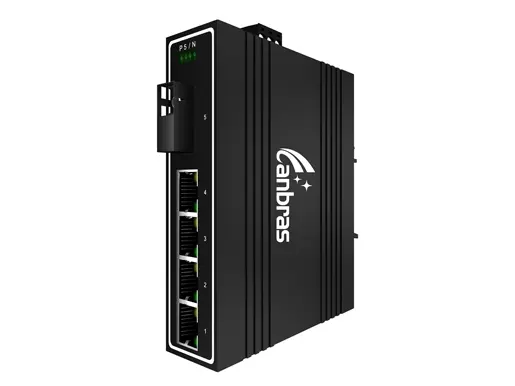

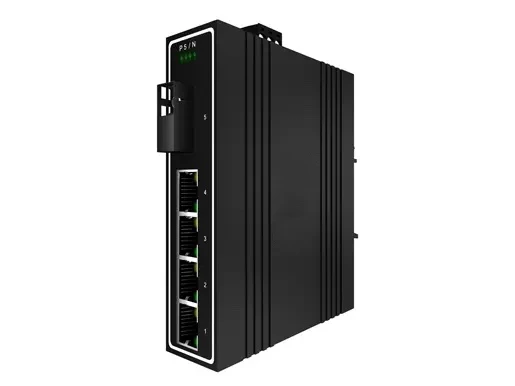

Name: Industrial Ethernet Switch 1x1000Base-X, 4x10/100/1000Base-T (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Ethernet Switch 1x1000Base-X, 4x10/100/1000Base-T (PoE Optional)

IDSAIM-01S04G-Z4

Through fanless heat dissipation design, a wide operating temperature range, and high protection level, it delivers reliable, durable, and efficient industrial network performance in harsh environments.

Overview

Specifications

Connectivity Solutions

Models

Resources

This device 1*1000Base-X, 4*10/100/1000Base-T Industrial Ethernet Switch, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NO	IDSAIM-01S04G-Z4
Provider Mode Ports
Fixed Port	11000Base-X, 410/100/1000Base-T
Power Interface	Phoenix terminal, dual power supply
LED Indicators	PWR, mainboard light, NMC, expansion board light
DIP Switch
1 LFP	Remote PD Reset
2 LGY	LEGACY (Standard & Non-standard PoE)
3 VLAN	Port Isolation
4 RST	Reset
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	DC12-58V
Total Power Consumption	Non PoE<5W ;PoE<125W
PoE Model	Support standard / non-standard POE
Layer 2 Switching
Switching Capacity	14G
Packet Forwarding Rate	10.416Mpps
MAC Address Table	8K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	10K bytes
Port Isolation	Support
RPR	Support
Reset	Supported
Environment
Operating Temperature	-30℃~75℃
Storage Temperature	-30℃~75℃
Relative Humidity	10%~90% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	1188131mm (W×H×D)
Installation Method	DIN-rail
Weight	0.4KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
ESD	IEC 61000-4-2 Level 4（8K/15K）
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSAIM-01S04G-Z4	11000Base-X SFP fiber port, 410/100/1000M RJ45 Port, PoE support 802.3af & at

Date	Version	Description			Download
2025-03-12		LA-IS4N-G0104
