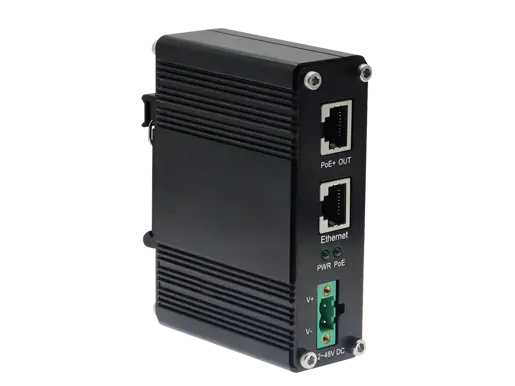

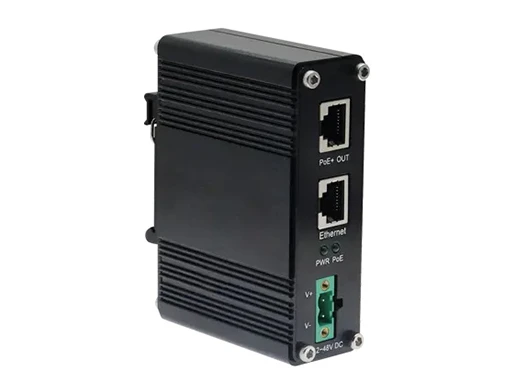

Name: Industrial PoE Injector Single Port 10/100/1000Mbps/2.5G 30w
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial PoE Injector Single Port 10/100/1000Mbps/2.5G 30w

LA-IPOE30-2.5GT-Y

LA-IPOE30-2.5GT-Y is a hardened 2.5G PoE injector supporting IEEE 802.3af/at, delivering reliable power and data to IP cameras and wireless access points, extending non-PoE LAN connectivity up to 100 meters for stable, high-performance networking.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-IPOE30-2.5GT-Y is a hardened 2.5G PoE injector designed to connect IEEE 802.3 af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch over distances up to 100 meters. Both the Ethernet port (to the switch) and the PoE Out port (to the PoE device) support 10/100/1000Mbps/2.5G Base-T and comply with IEEE 802.3ab standards. Additionally, the PoE Out port is compliant with IEEE 802.3 at.

Features

● DC12-48V Power Input

● 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
● Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
● Support 10/100/1000Mbps/2.5G Base-TX
● Extensive LED indicators for PoE diagnostics
● Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
● Small Size 95x70x30mm
● Aluminum Alloy Metal Case
● Support DIN-rail mounting and wall mounting installation

Ethernet
Standards	IEEE802.3af/at Power over Ethernet
Processing Type	Forward, Half-duplex, Full-duplex
Forward Filter Rate	3,720,000pps (2.5Gbps)
Cabling	10/100/1000Mbps/2.5GBase-T: Cat6A or above
Maximum Distance	Cat6A UTP up to 100m
Connector	2xRJ45
Environmental
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	>200,000hrs
Electrical and Mechanical
Input Power	DC12-48V (Terminal Block)
Power Consumption	Max. 36W
PoE (Power over Ethernet)
Standard	IEEE802.3af/at
Port	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port	Max. 30W (Alternative B Mode)
LED Indicators
Power	Power Status
PoE	PoE Status
Dimensions (W x D x H)	95x70x30mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certifications
Certificates	CE, FCC, ROHS
Surge Protection	RJ45: 1KV; Power: 500V; ESD: 4KV/8KV

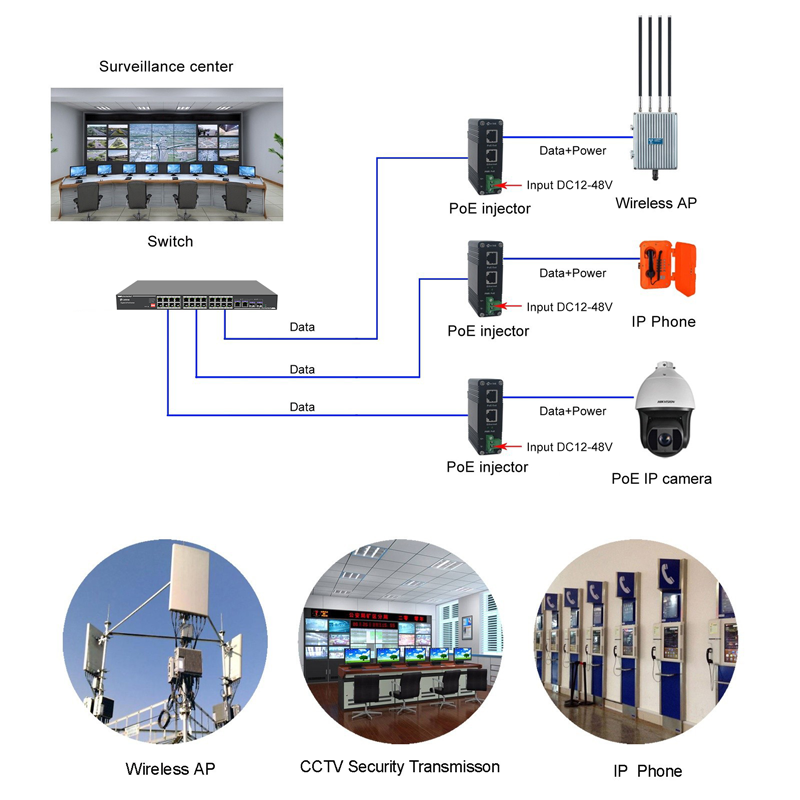

Connectivity Solutions of Industrial Single Port 10/100/1000Mbps/2.5G PoE Injector 30w

Ordering Information
LA-IPOE30-2.5GT-Y	Industrial Single Port 10/100/1000Mbps/2.5GBase-T PoE Injector DC12-48V Power Input Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Date	Version	Description			Download
2025-03-14		Datasheet_Industrial 2.5G PoE Injector 30w, LA-IPOE-2.5GT-Y V1.3 LY
