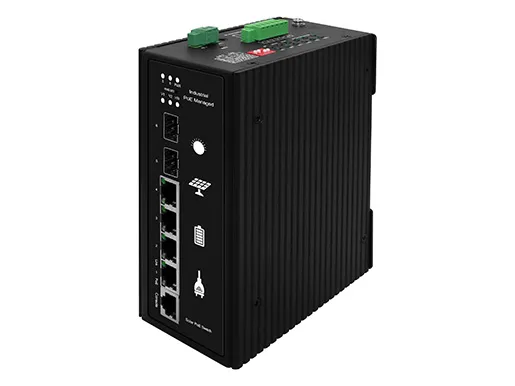

Industrial L2+ Managed Solar Powered PoE Switch 4x10/100/1000Base TX PoE+, 2x100/1000M SFP

Console Port

1*console port

Reset Key

1

PoE Ports

1 port supports IEEE802.3af/at/poe++/bt, max 90W PoE out

2-4 port supports IEEE802.3af/at, max 30W/port, PoE out

PoE Bridge

Max 120W

Network Protocol

IEEE 802.3; IEEE 802.3u 100BASE-TX; IEEE 802.3ab1000BASE-T; IEEE 802.3x; IEEE 802.3z 1000BASE-X; IEEE 802.3af/at; Hasidim AI PSE; IEEE 802.3ad;

IEEE 802.3q IEEE 802 .3q/p; IEEE 802.1w IEEE 802. 1d IEEE 802.1S

STP(Spanning Tree Protocol); RSTP/MSTP(Rapid Spanning Tree Protocol) EPPS ring network protocol; EAPS ring network protocol

Port Specification

10/ 100/ 1000BaseT(X)Auto

Transmission Mode

Store and Forward(full w ire speed)

Bandwidth

56Gbps

Packet Forwarding

40.32Mpps

MAC

8K

Buffer

4.1M

Transmission Distance

10BASE-T: Cat3, 4, 5 UTP(=250 meter)

100BASE-TX: Cat5 or later UTP(=100 meter)

1000BASE-TX: Cat6 or later UTP(=1000 meter)

1000BASE-SX: 62.5μm/50μm MMF(2m~550m)

1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) Support universal BIDI

Rate

Ethernet 10Mbps half duplex, 20Mbps full duplex

Fast Ethernet 100Mbps half duplex, 200Mbps full duplex Gigabit Ethernet 2000Mbps full duplex

CPU

500MHZ

FLASH

16M

RAM

128M

Watt

Charging+full load: 300W

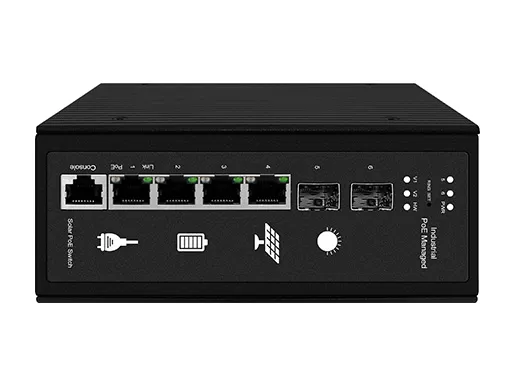

Switch Function Switch

PWR: Power indicator

SYS: System indicator

Network port: (network connection indicator light green)

PoE indicator light: (network connection indicator light orange)

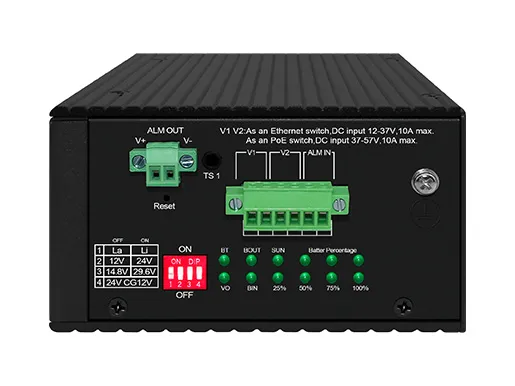

Charging LED Indicator

BT: Battery status indicator;            VO: POE boost successful indicator

BOUT: Battery discharge indicator;       BIN: Battery charging indicator

SUN: Solar energy status indicator;       25%-100%: Battery level indicator

Operating Temperature/Humidity

-20~65°C; 10%~90%  RH Non coagulation

Storage Temperature/Humidity

-40~70°C; 5%~90%   RH Non coagulation

Product/Packing size(L*W*H)

157*115mm*45mm

410mm*280mm*100mm

N.W/G.W(kg)

3.5/4.1kg (Other: This product does not include solar panels or batteries)

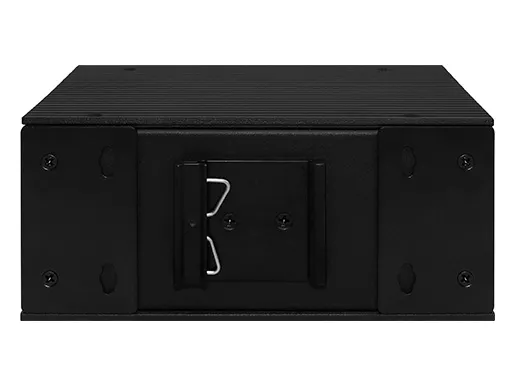

Installation

DIN rail type (with wall mounting lug)

Lightning Protection level

6KV 8/20us; 8K V E SD electrostatic protect ion IP40

Warranty

Whole device for 1 year (Accessories not included)

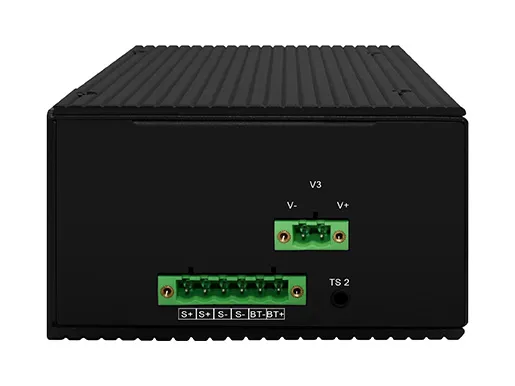

Battery Voltage

12V

24V

12.6V

25.2V

14.8V

29.6V

Charging Mode

MPPT(current and voltage limiting -constant current - voltage limiting - Pressure and current limiting floating charge)

MPPT (current and voltage limiting constant current constant voltage)

Consumable Supplement  Function

Support

Consumable Detection Voltage

<12.6V

<24.8V

<12.2V

<24.4V

<14.2V

<28.8V

Rated Charging Current

15A

Float Current

50mA-1000mA

Float Time

3 hours

Charging Stop

Arrival float timing

Rated voltage and simultaneous charging current < 30mA

Rated Discharge Current

6.5A

3.6A

8.5A

4A

6.5A

4A

PoE Output Voltage

42~57V

PoE Output Power

Maximum 120W

Photovoltaic Open Circuit Voltage

32V

45V

32V

45V

32V

45V

Photovoltaic Input

Max 57V, Max 1200W

Maximum Charging  Voltage

14.7V

29.6V

1.6V

25.2V

14.8V

29.6V

Floating Charge Voltage

13.7V

27.4V

Discharge Cut-off Voltage

10.1V

20.2V

9V

18V

10.2V

20.4V

Type

Default 6 battery type specifications (12V battery pack*3, 24V battery pack*3)  Customization battery parameters

Supports up to 500AH

Over Temperature

Protection

Supports automatic shutdown of motherboard over temperature and battery over temperature (optional)

Input Protection

Over current, over voltage, delayed start and anti connection protection

Output Function

Over current, over voltage and short circuit

Indicator Light

System normal operation indicator, battery lamp, input normal indicator, charge discharge indicator and multi-functional composite fault indicator

Working Temperature

-20°C~ +65°C

Power Indicator: PWR

on

power on

off

power off

Port Indicator: 1-4

green on

Corresponding port network link enabled

orange on

Corresponding port PoE power supply is turned on

Port light flashing

Corresponding port network data exchange

SFP Indicator: 5-6

on

SFP on

off

SFP off

DC Input Indicator: V1/V2

on

DC normal input

off

DC not connected or abnormal

IDSSL3LR-02S04GP-D15A-S

2+4 High-Power Managed Solar PoE Industrial Switch
