Name: Industrial Din-rail PoE Media Converter 1x1000Base-X, 1x10/100/1000Base-T
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Din-rail PoE Media Converter 1x1000Base-X, 1x10/100/1000Base-T

IDSAIM-01S01GP-Z6

IDSAIM-01S01GP-Z6 unmanaged industrial PoE media converter with 1x Gigabit SFP and 1x Gigabit RJ45, fanless design, wide temperature, lightning protection, delivering reliable, secure industrial networking for harsh environments and surveillance.

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSAIM-01S01GP-Z6 is a 1 Gigabit optical & 1 10/100/1000Base-T unmanaged industrial PoE media converter, and provides excellent industrial-grade qualities such as high/low temperature resistance and lightning protection through fan-less heat dissipation circuit design, wide range of operating environment temperature, high protection level and other technologies; it enhances the reliability and security of industrial networks. It can better meet the deployment requirements of rail transit, safe cities, intelligent transportation, outdoor monitoring and other harsh environments.

Features

● Input Voltage: DC48-58V(PoE); DC12-58V(non-PoE)

● Operating Temperature: -40℃~+85℃

● Shell: IP40 protection, fan-less design

● Test Report: CE, RoHS, FCC

● Anti-static: 8KV-15KV

● MTBF: 100000 Hours

Provider Mode Ports
Fixed Port	1x1000Base-X, 1x10/100/1000Base-T
Power Interface	Phoenix terminal, dual power supply redundant
Led Indicators	PWR, OPT, NMC, ALM
Dialing Instructions (PoE)
1 I/R	PoE watchdog
2 VLAN	VLAN
3 Q/I	Port Isolation
4 F/P	VIP Power Supply & QoS
Cable Type & Transmission Distance
Twisted-Pair	0-100m (CAT5e, CAT6)
Single-Mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Not support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC48-58V(PoE); DC12-58V(non-PoE)
Total Power Consumption	<36w(PoE); <6w(non-PoE)
PoE Support
PoE Port	1
PoE Protocol	802.3af, 802.3at
Pin Assignment	1, 2, 3, 6
Layer 2 Switching
Switching Capacity	14G
Packet Forwarding Rate	10.416Mpps
MAC Address Table	8K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	Support 10Kbytes
Environment
Operating Temperature	-40℃~+85℃
Storage Temperature	-40℃~+85℃
Relative Humidity	5%~95% (non-condensing)
Thermal Methods	Fan-less, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	48x104x143mm (W×H×D)
Installation Method	Din-rail
Weight	0.6KG
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level X (6KV/6KV) (8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us)
RS	IEC 61000-4-3 Level 3 (10V/m)
EFI	IEC 61000-4-4 Level 3 (1V/2V)
CS	IEC 61000-4-6 Level 3 (10V/m)
PFMF	IEC 61000-4-8 Level 4 (30A/m)
DIP	IEC 61000-4-11 Level 3 (10V)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Free Fall	0.5m
Certificate
Certificates	CE/FCC/RoHS

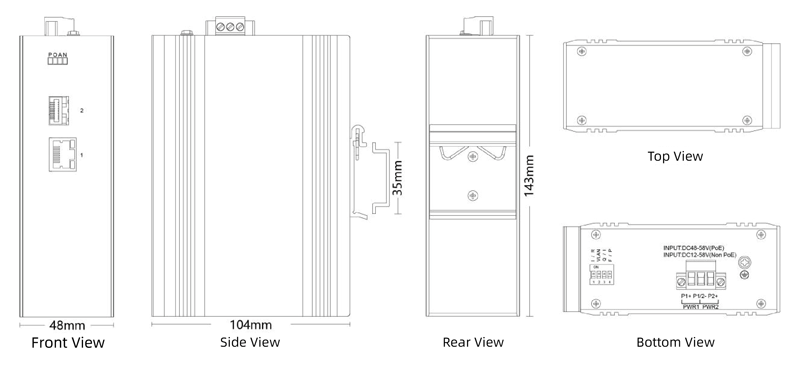

Dimension

Dimension of Industrial Din-rail PoE Media Converter 1x1000Base-X, 1x10/100/1000Base-T

Date	Version	Description			Download
2025-03-12		Industrial Din-rail PoE Media Converter 1x1000Base-X, 1x10/100/1000Base-T
