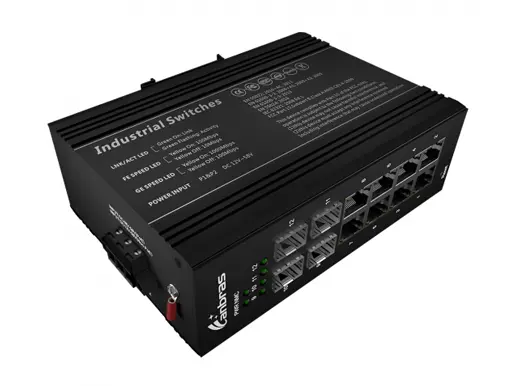

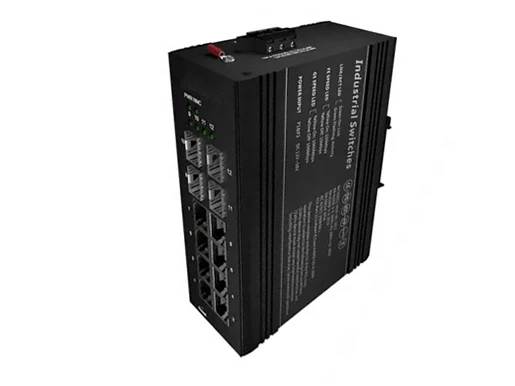

Name: Industrial Ethernet Switch 4x1000Base-X, 8x10/100/1000Base-T (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Ethernet Switch 4x1000Base-X, 8x10/100/1000Base-T (PoE Optional)

IDSM-04S08G-Z6

With high protection level and advanced technologies, it delivers excellent industrial-grade quality with high/low temperature resistance and lightning protection, enhancing network reliability and operational stability.

Overview

Specifications

Connectivity Solutions

Models

Resources

This device is 4* 1000Base-X & 8*10/100/1000Base-X Industrial Ethernet Switch. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

PART NO	IDSM-04S08G-Z6
Provider Mode Ports

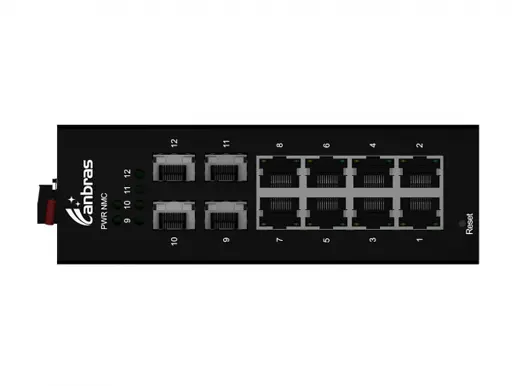

Fixed Port	41000 Base-X，810/100/1000Base-T

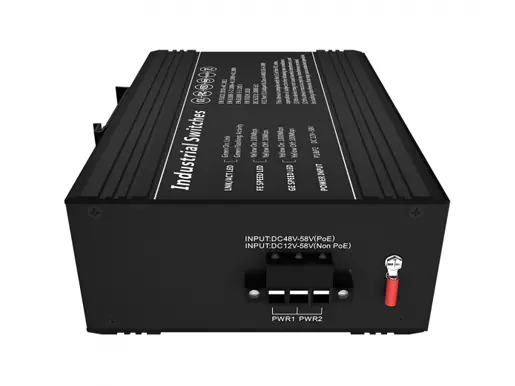

Power Interface	Phoenix terminal, redundant dual power supply

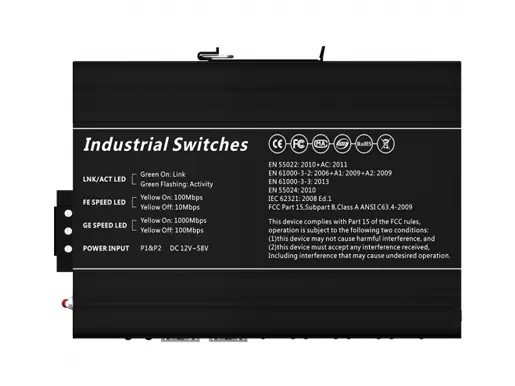

LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	DC12-58V
Total Power Consumption	<10W
Layer 2 Switching
Switching Capacity	40G
Packet Forwarding Rate	26.7Mpps
MAC Address Table	16K
VLAN	4k
Buffer	8M
Forwarding Delay	<10us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	10K Bytes
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+85℃
Relative Humidity	5%~95% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	143X104X48mm (W×H×D)
Installation Method	DIN-rail
Weight	0.58KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3 （10V）
EMI	CLASS A
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free Fall	0.5m
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSM-04S08G-Z6	41000Mbps SFP Port, 810/100/1000Mbps RJ45 Port, PoE support 802.3af&at
