Name: 5 Port 10/100/1000M Gigabit Ethernet Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

LA-SW-PG0005

5-Port Gigabit Ethernet switch with 10/100/1000Mbps ports, ideal for home and enterprise networking, delivering reliable high-speed data transmission, seamless connectivity, and efficient network performance for computers, routers, IP cameras, and other network devices.

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

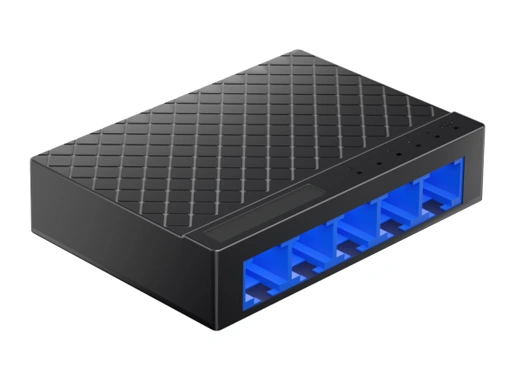

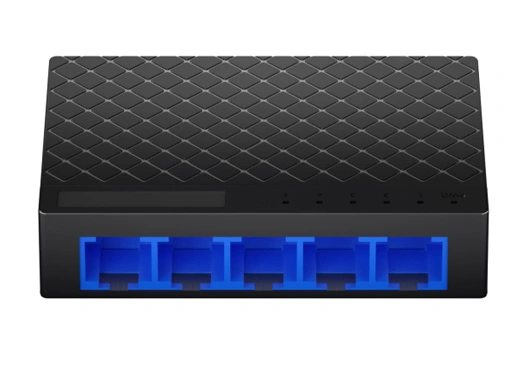

The LA-SW-PG0005 is a 5 port 10/100/1000 switch housed in a compact, desktop plastic case, offering reliable Gigabit Ethernet connectivity. It adopts a storage and forwarding mechanism, features a fanless design for silent operation, and includes both power and network interface indicators. With its plug-and-play functionality and small, elegant appearance, this switch is perfect for both home environments and enterprise use, providing a seamless networking solution for various applications.

Switching capacity: 10G
MAC address: 2K
Buffer: 384K
Jumbo frame: 15K bytes
Power Input: DC5V
Working temperature: -10℃ ~ 55℃
Shell: Plastic, fanless design
MTBF: 100000 hours

Provider Mode Ports
Fixed Port	5*10/100/1000 Base-T, RJ45
Power interface	DC terminal
LED Indicators
PWR	Power indicator
Link/Act	Link status indicator
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e,CAT6)
Electrical Specifications
Input voltage	DC 5V
Total Power consumption	Full load ≤3W
Layer 2 Switching
Switching capacity	10G
Packet forwarding rate	7.44Mpps
MAC address table	2K
Buffer	384K
Forwarding delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 15K bytes
Environment
Operating temperature	-10℃~55℃
Storage temperature	-40℃~85℃
Relative humidity	10%~95% (non-condensing)
Thermal methods	Fanless design, natural heat dissipation
MTBF	100,000 hours

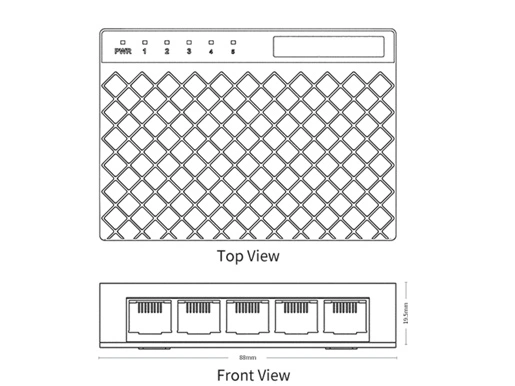

Mechanical Dimensions
Product size	8862.519.5mm
Installation Method	Desktop
Desktop	0.06KG around
Accessories
Accessories	Device, Qualified Certificate, User Manual, Power Adapter
