Name: Industrial Ethernet Switch, Waterproof IP67 8Port 10/100/1000Base-T
Brand: Lanao Communication Technology Limited.
Availability: InStock

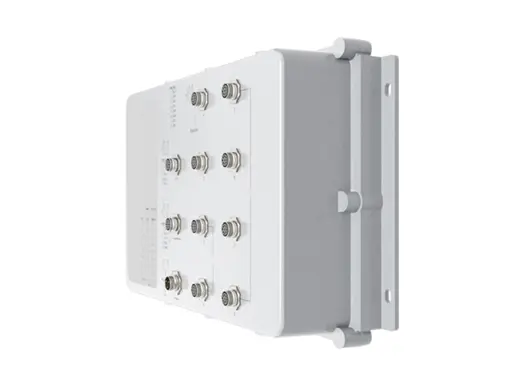

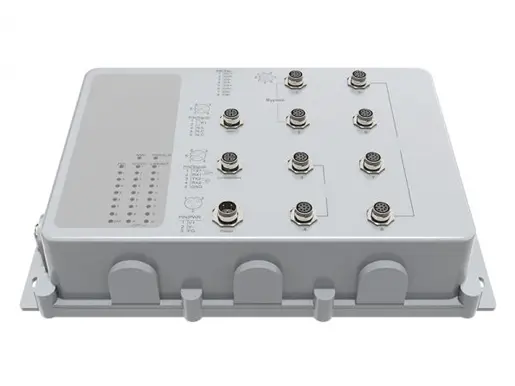

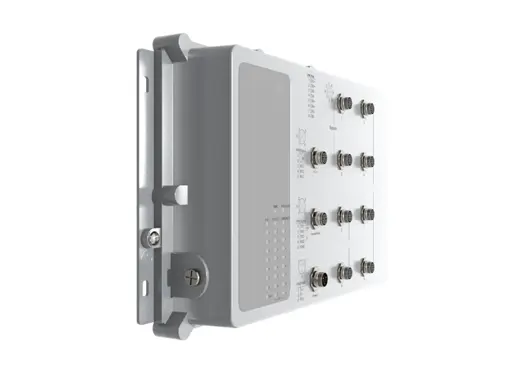

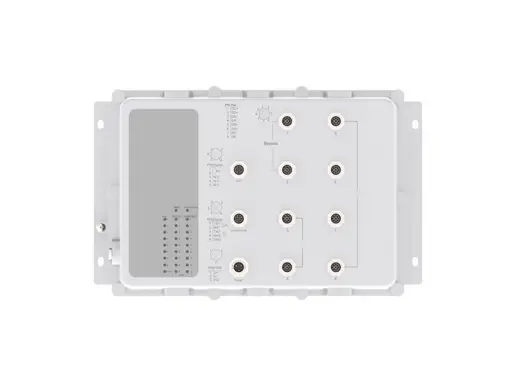

Industrial Ethernet Switch, Waterproof IP67 8Port 10/100/1000Base-T

LA-ISW-G0008-M12

LA-ISW-G0008-M12 IP67 waterproof industrial Ethernet switch with M12 connectors and anti-vibration design, delivering rugged, reliable, high-performance networking for marine, railway, ITS, IIoT, and automation applications.

Overview

Specifications

Connectivity Solutions

Models

Resources

The LA-ISW-G0008-M12 is an IP67 switch waterproof industrial solution with anti-vibration M12 connectors, specifically designed for Marine, Railway, Bus, IIOT, Automation, and ITS applications. As an 8*10/100/1000Base-T waterproof Ethernet switch, it features a fan-less heat dissipation design, wide working temperature range, high protection levels, and advanced technologies for lightning protection. These features ensure exceptional industrial quality, with resistance to high and low temperatures and enhanced reliability and safety for industrial networks. Ideal for rail transit, smart cities, intelligent transportation, outdoor monitoring, and other harsh environments, this switch meets the most demanding deployment requirements with durability and efficiency.

Provider Mode Ports
Fixed port	8*10/100/1000Base-T, M12 connector
Power interface	M16 connector
Alarm port	M12 connector
LED Indicators	PWR, ALM, Interface status indicator
Cable type & Transmission distance
Twisted-pair	0-100m（CAT5e, CAT6）
Monomode optical fiber	/
Multimode optical fiber	/
Network Topology
Ring topology	Unsupported
Star topology	Support
Bus topology	Support
Tree Topology	Support
Electrical Specifications
Input voltage	DC12~58V
Total power consumption	<6W
Layer 2 Switching
Switching capacity	26G
Switching capacity	26G
Packet forwarding rate	19.34Mpps
Packet forwarding rate	19.34Mpps
MAC address table	16K
Buffer	2M
Forwarding delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 10K Bytes
Bypass	Copper port 1~2 support
Bypass	Copper port 1~2 support
Watchdog	Support
Watchdog	Support
Environment
Operating temperature	-40℃~+75℃
Operating temperature	The device is tested for 4 hours at temperatures in 85℃
Storage temperature	-40℃~+85℃
Relative humidity	5%~95% non-condensing
Thermal methods	Fan-less, natural cooling
Thermal methods	Fan-less, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product size	287X182X65.7mm
Installation method	DIN rail
Weight	1.2KG around
EMC & INGRESS PROTECTION
IP Level	IP67
Surge protection of power	IEC 61000-4-5 Level X (6KV/6KV）（8/20us)
Surge protection of Ethernet port	IEC 61000-4-5 Level 4 (4KV/4KV）（10/700us)
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3 （10V）
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free fall	0.5m
Authentication
Authentication	CE, FCC, RoHS
Authentication	CE, FCC, RoHS
Accessories
Accessories	Device, Terminals, Specification, Certificate, power adapter(optional)
Accessories

Input Voltage: DC12-58V(non-PoE)
Operating Temperature: -40℃ ~ +75℃
Shell: IP67 protection, fan-less design
Test Report: RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours

Ordering Information
LA-ISW-G0008-M12	Industrial Waterproof Ethernet Switch, 8*10/100/1000Base-T with M12

Date	Version	Description			Download
2025-03-12		Datasheet_LA-ISW-G0008-M12_8GE Industrial Waterproof IP67 Ethernet Switch
