Name: 8 Port 10/100/1000M Gigabit Ethernet Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

8 Port 10/100/1000M Gigabit Ethernet Switch

LA-SW-PG0008

8-Port 10/100/1000M Gigabit Ethernet switch delivering high-speed data transmission, stable connectivity, and reliable network performance for home, office, and enterprise environments, ideal for computers, IP cameras, routers, and other Ethernet-enabled devices.

Overview

Specifications

Connectivity Solutions

Models

Resources

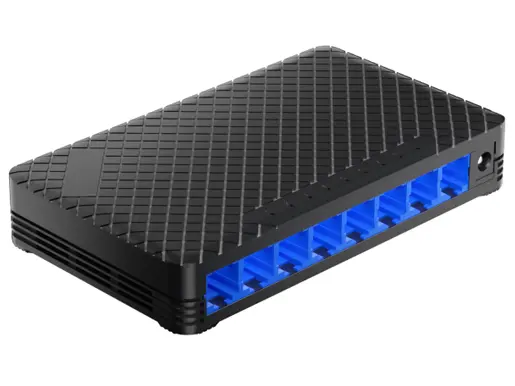

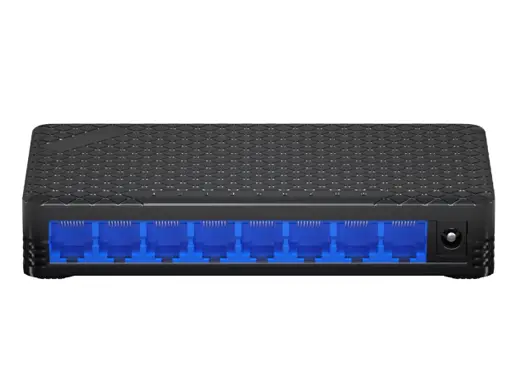

LA-SW-PG0008 is a desktop plastic case 8Port 10/100/1000M Gigabit Ethernet Switch, adopts storage and forwarding, fanless design, support power indicator and network interface indicator. Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.

Provider Mode Ports
Fixed Port	8*10/100/1000Base-T, RJ45
Power interface	DC terminal
LED Indicators
PWR	Power indicator
Link/Act	Link status indicator
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e,CAT6)
Electrical Specifications
Input voltage	DC 5V
Total Power consumption	Full load ≤3W
Layer 2 Switching
Switching capacity	16G
Packet forwarding rate	11.9Mpps
MAC address table	4K
Buffer	2M
Forwarding delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 9K bytes
Environment
Operating temperature	-10℃~55℃
Storage temperature	-40℃~85℃
Relative humidity	10%~95% (non-condensing)
Thermal methods	Fanless design, natural heat dissipation
MTBF	100,000 hours
Mechanical Dimensions
Product size	1458525mm
Installation Method	Desktop
Net Weight	0.14KG around
Accessories
Accessories	Device, Qualified Certificate, User Manual, Power Adapter

Switching capacity: 16G
MAC address: 4K
Buffer: 2M
Jumbo frame: 9K bytes
Power Input: DC5V
Working temperature: -10℃ ~ 55℃
Shell: Plastic, fanless design
MTBF: 100000 hours
