Name: 8 Port 10/100M Fast Ethernet Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

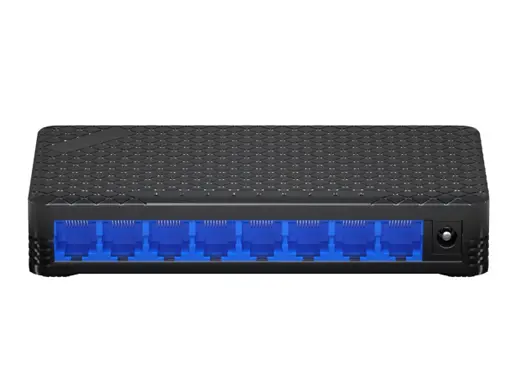

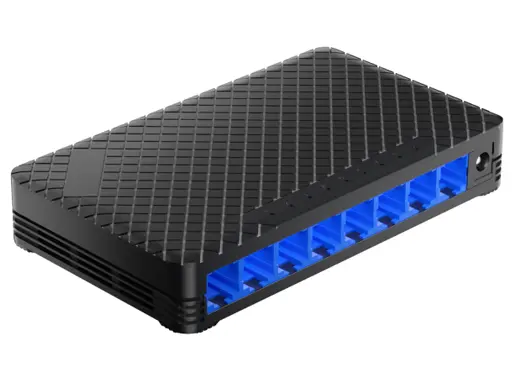

8 Port 10/100M Fast Ethernet Switch

LA-SW-PF0008

8-Port 10/100M Fast Ethernet switch providing stable network connectivity and efficient data transmission, ideal for home and office networking, supporting reliable connections for computers, IP cameras, printers, and other Ethernet-enabled devices.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-SW-PF0008 is a desktop plastic case 8Port 10/100M Fast Ethernet Switch, adopts storage and forwarding, fanless design, support power indicator and network interface indicator. Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.

Provider Mode Ports
Fixed Port	8*10/100Base-T, RJ45
Power interface	DC terminal
LED Indicators
PWR	Power indicator
Link/Act	Link status indicator
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e,CAT6)
Electrical Specifications
Input voltage	DC 5V
Total Power consumption	Full load ≤3W
Layer 2 Switching
Switching capacity	1.6G
Packet forwarding rate	1.19Mpps
MAC address table	4K
Buffer	2M
Forwarding delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 9K bytes
Environment
Operating temperature	-10℃~55℃
Storage temperature	-40℃~85℃
Relative humidity	10%~95% (non-condensing)
Thermal methods	Fanless design, natural heat dissipation
MTBF	100,000 hours

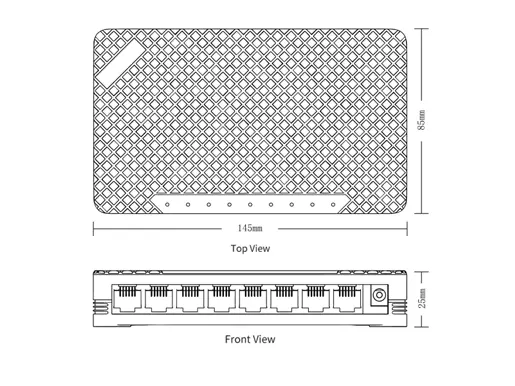

Mechanical Dimensions
Product size	1458525mm
Installation Method	Desktop
Net Weight	0.14KG around
Accessories
Accessories	Device, Qualified Certificate, User Manual, Power Adapter

Switching capacity: 1.6G
MAC address: 4K
Buffer: 2M
Jumbo frame: 9K bytes
Power input: DC5V
Working temperature: -10℃ ~ 55℃
Shell: Plastic, fanless design
MTBF: 100000 hours
