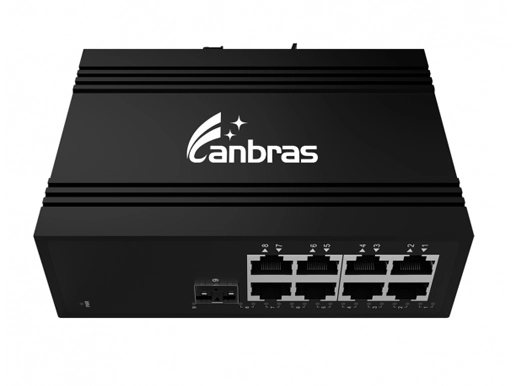

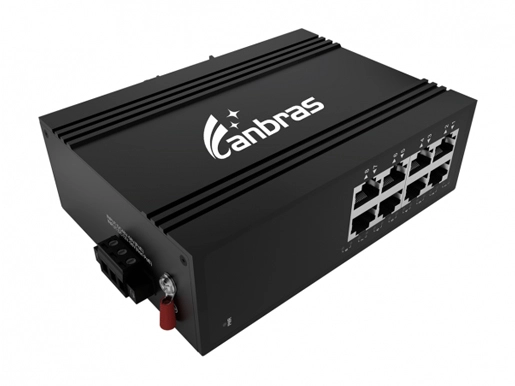

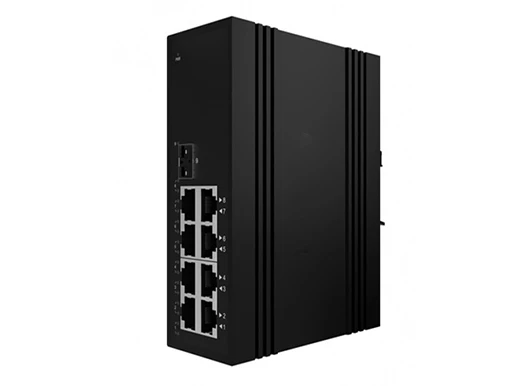

Name: 8x10/100/1000 Base-T Unmanaged Industrial Switch (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Overview

Specifications

Connectivity Solutions

Models

Resources

This device 8*10/100/1000Base-T Industrial Ethernet Switch, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature -30°C~75°C, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

PART NO	IDSM-0008G-Z4
Provider Mode Ports
Fixed Port	8*10/100/1000Base-T
Power Interface	Phoenix terminal, dual power supply
LED Indicators	PWR, Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	/
Multimode Optical Fiber	/
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	DC12-58V(Non-PoE)/DC48~58V(PoE)
Total Power Consumption	Non PoE<5W, with PoE<125W
Layer 2 Switching
Switching Capacity	20G
Packet Forwarding Rate	14.88Mpps
MAC Address Table	16K
Buffer	2M
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	10bytes
Environment
Operating Temperature	-30℃~75℃
Storage Temperature	-30℃~75℃
Relative Humidity	5%~90% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	14310446mm (W×H×D)
Installation Method	DIN-rail
Weight	0.54KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
ESD	IEC 61000-4-2 Level 4（8K/15K）
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSM-0008G-Z4	8*10/100/1000M RJ45 Port

Date	Version	Description			Download
2025-03-12		LA-IS4N-G0008
