Name: Industrial M12 Connector Single Port 10/100/1000 PoE Injector 30w
Brand: Lanao Communication Technology Limited.
Availability: InStock

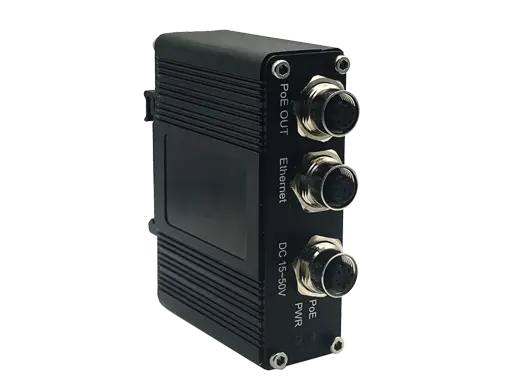

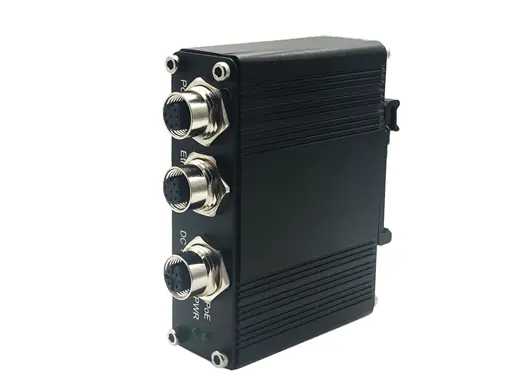

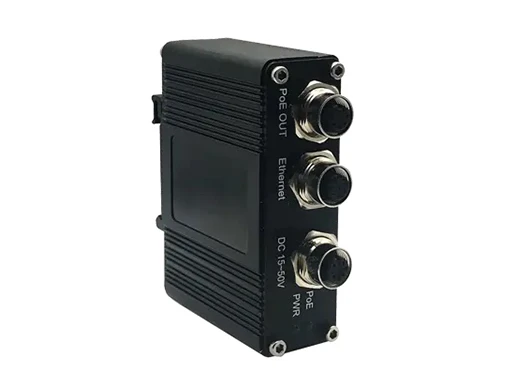

Industrial M12 Connector Single Port 10/100/1000 PoE Injector 30w

LA-POE30G-IM12

LA-POE30G-IM12 is an industrial PoE injector designed for applications such as rolling stock, vehicles, and railway systems, delivering reliable PoE power, stable data transmission, and robust performance in harsh industrial environments.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-POE30G-IM12 is designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable. It provides an integrated power solution with a wide range voltage of DC12-48V for high availability applications.

Features
● DC12-48V Power Input
● Fully compliant with IEEE802.3af/at
● Support 10/100/1000Base-TX for power and data output
● Support DIN-Rail & Wall-mount installation
● Use M12 connectors to ensure tight and robust connections
● Extensive LED indicators for PoE diagnostics

Ethernet
Standards	IEEE802.3af/at Power over Ethernet
Processing Type	Forward, Half-duplex, Full-duplex
Forward Filter Rate	1,488,000pps (1000Mbps)
Cabling	10/100/1000Base-T
Connector	2*M12 connector (8-pin female M12 A-coding)
Environmental
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	>200,000hrs
Electrical and Mechanical
Input Power	DC12-48V on 5-pin female M12 A-Coding
Power Consumption	Max. 36W
PoE (Power over Ethernet)
Standard	IEEE802.3af/at
Port	M12 connector (8-pin female M12 A-coding)
Max. Power per Port	Max. 30W

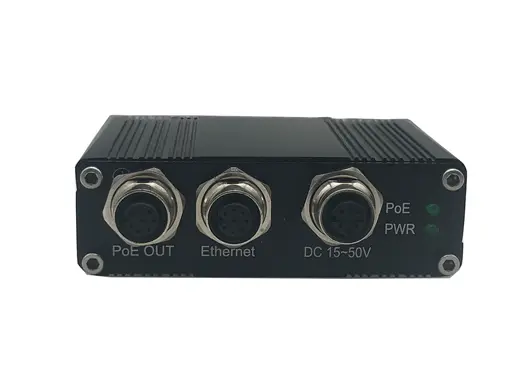

LED Indicators
Power	Power Status
PoE	PoE Status
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case

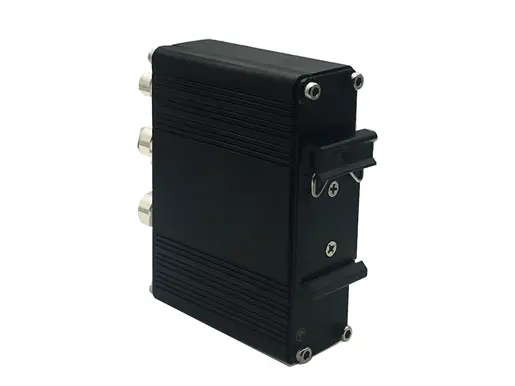

Mounting Options	DIN-Rail / Wall-mount
Certifications
Certificates	ISO9001; FCC part 15, Class A, EN50155; EN55022:2006+A1: 2007 Class A
Surge Protection	RJ45: 1KV; Power: 500V; ESD: 4KV/8KV

Connectivity Solutions of Industrial Single Port 10/100/1000 PoE Injector 30w M12 Connector

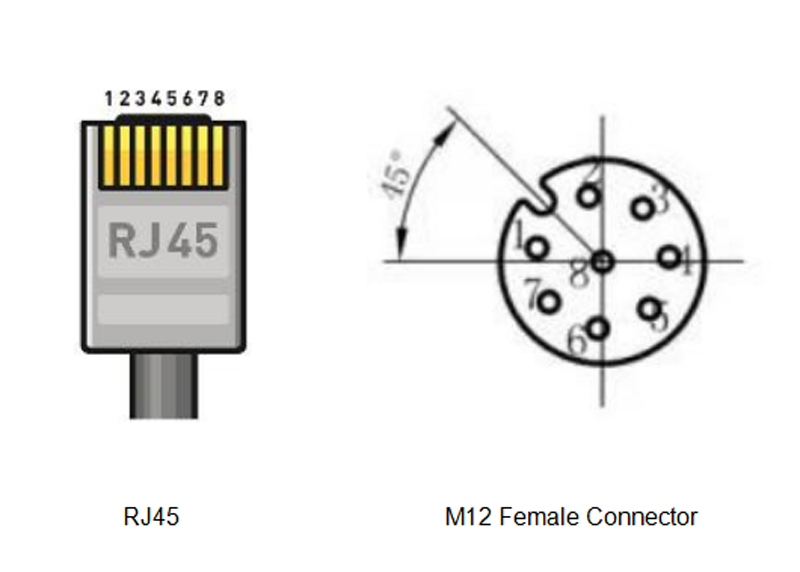

M12 Pin Assignments:

Connectivity Solutions of Industrial Single Port 10/100/1000 PoE Injector 30w M12 Connector

Pin		Assignment
RJ45	M12	PoE	Ethernet
1	6	TP0+	TP0+
2	4	TP0-	TP0-
3	5	TP1+	TP1+
4	7	TP2+(VCC+)	TP2+
5	1	TP2-(VCC+)	TP2-
6	8	TP1-	TP1-
7	2	TP3+(VCC-)	TP3+
8	3	TP3-(VCC-)	TP3-

Ordering Information
LA-POE30G-IM12	Industrial Single Port 10/100/1000M M12 PoE Injector DC12-48V Power Input (Not including Power Supply) Default DIN-Rail Bracket installed (Wall Mount Bracket is included)

Date	Version	Description			Download
2025-03-14		Datasheet_Industrial M12 Gigabit PoE Injector 30w_LA-POE30G-IM12 V.2.1 LY
