Name: Industrial Din-Rail Layer 2 Managed PoE Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

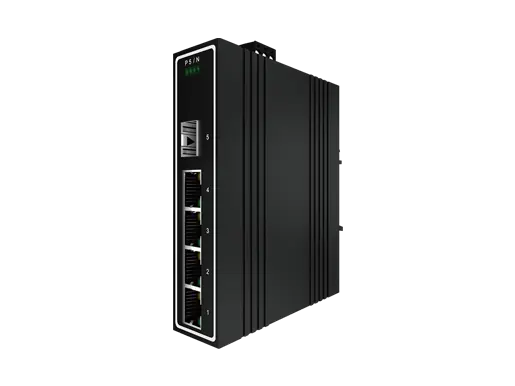

Industrial Din-Rail Layer 2 Managed PoE Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP

IDSAIM-02S04-Z

IDSAIM-02S04-Z industrial Gigabit PoE switch features fanless, energy-efficient design, delivering reliable power over Ethernet for SMB networks, supporting stable industrial Ethernet deployment, surveillance systems, and IP camera applications.

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSAIM-02S04-Z is a robust industrial managed PoE switch equipped with 4-port 10/100/1000-T PoE and 2-port 1000Base-X fiber optical interfaces. It supports IEEE802.3af and IEEE802.3at standard PoE protocols, providing up to 30W (PoE+) per port. Designed for high performance, it offers impressive switching capacity and supports ERPS redundant networks, with a self-recovery mechanism of less than 20ms under full load. This ensures a reliable Ethernet network and allows for a resilient ring topology as a backup solution. The DIN rail-managed switch also offers flexible management through Web, SNMP, and Telnet interfaces, with features including QoS, VLAN, IGMP, port mirroring, 802.1X, LLDP, Fiber Transceiver DDM, and PoE management.

Features

4x10/100/1000Base-T RJ45 PoE ports, 2x1000Base-X SFP ports
DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Support Layer 2 management function: VLAN/Port Mirroring/IGMP/QoS/LLDP/802.1X/Fiber transceiver DDM/PoE management/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time≤20ms
Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40℃~+75℃

Provider Mode Ports
Fixed Port	11000Base-X, 410/100/1000Base-T
Power Interface	Phoenix terminal, Dual power input
LED Indicators	PWR, Link/ACT LED
DIP (non-PoE)
1	QoS
2	Storm Suppression
3	Port Isolation
4	Flow Control
DIP (PoE)
1	Remote PD Reset
2	250m Extension
3	Port Isolation
4	Flow Control
Cable Type & Transmission Distance
Twisted-pair	0-100m (CAT5e, CAT6)
Mono-mode Optical Fiber	20/40/60/80/100KM
Multi-mode Optical Fiber	550m
Network Topology
Ring Topology	Not support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	DC12-58V; PoE DC48-58V
Total Power consumption	<5W(non-PoE), <125W(PoE)
PoE Support
PoE Port	1-4
PoE Standard	802.3af, 802.3at
Pin Assignment	1, 2+, 3, 6-
Layer 2 Switching
Switching Capacity	12Gbps
Packet Forwarding Rate	8.92Mpps
MAC Address Table	2K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 9K bytes
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+75℃
Relative Humidity	10%~90% (non-condensing)
Thermal Methods	Fan-less design, natural heat dissipation
MTBF	100,000 hours
Mechanical Dimensions
Product Size	118x91x31mm
Installation Method	Din-Rail
Net Weight	0.4KG
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
ESD	IEC 61000-4-2 Level 4 (8K/15K)
Certification
Certificates	CE, FCC, RoHS

Dimensions

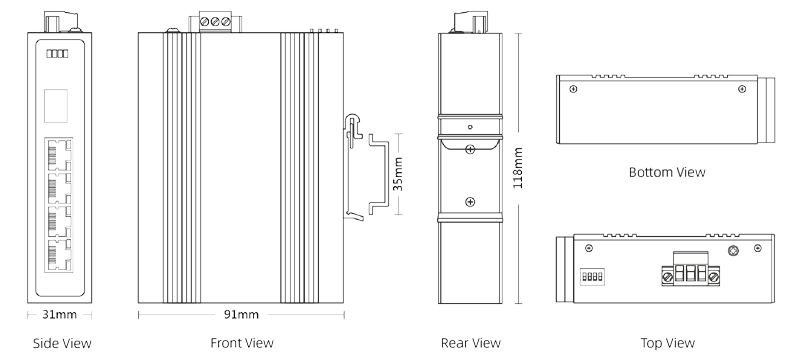

Dimensions of Industrial Switch 1xGigabit SFP, 4x10/100/1000Base-T PoE

Date	Version	Description			Download
2025-03-10		Datasheet_IDSAIM-02S04-Z
