Name: Industrial Unmanaged Media Converter 1x1000Base-X, 1x10/100/1000Base-T
Brand: Lanao Communication Technology Limited.
Availability: InStock

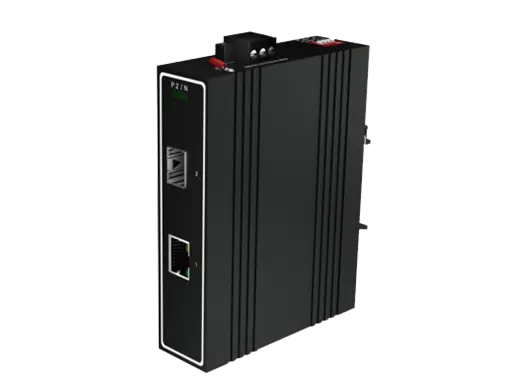

Industrial Unmanaged Media Converter 1x1000Base-X, 1x10/100/1000Base-T

IDSAIM-01S01GP-Z4

IDSAIM-01S01GP-Z4 unmanaged industrial PoE media converter with 1x Gigabit SFP and 1x Gigabit RJ45, fanless, wide temperature, lightning protection, delivering reliable, secure industrial networking for harsh environments and surveillance applications.

Overview

Specifications

Connectivity Solutions

Models

Resources

IDSAIM-01S01GP-Z4 is a 1 Gigabit optical & 1 10/100/1000Base-T unmanaged industrial PoE media converter through fan-less heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial-grade quality such as high/low temperature resistance and lightning protection, and enhances the reliability and security of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Features

● Input Voltage: DC48-58V(PoE); DC12-58V(non-PoE)

● Operating Temperature: -40℃ ~ +75℃

● Shell: IP40 protection, fan-less design

● Test Report: CE, RoHS, FCC

● Anti-static: 8KV-15KV

● MTBF: 100000 Hours

Provider Mode Ports
Fixed Port	1x1000Base-X, 1x10/100/1000Base-T
Power Interface	Phoenix terminal, dual power supply redundant
Led Indicators	PWR, Main board fiber port indicator; NMC, Expansion board fiber port indicator
Dialing Instructions
1 LFP	LFP
2 LGY	Reserved
3 VLAN	Reserved
4 BSR	Reset
Cable Type & Transmission Distance
Twisted-Pair	0-100m (CAT5e, CAT6）
Single-mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Not support
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	DC48-58V(PoE); DC12-58V(non-PoE)
Total Power Consumption	<35w(PoE); <5w(non-PoE)
PoE Support
PoE Port	1
PoE Protocol	802.3af, 802.3at
Pin Assignment	1, 2, 3, 6
Layer 2 Switching
Switching Capacity	14G
Packet Forwarding Rate	10.416Mpps
MAC Address Table	8K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 10K bytes
Environment
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+75℃
Relative Humidity	10%~90%（non-condensing）
Thermal Methods	Fan-less, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	31x91x118mm (W×H×D)
Installation Method	Din-rail
Weight	0.4KG
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Surge Protection of Ethernet port	IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us)
ESD	IEC 61000-4-2 Level 4 (8K/15K）
Certificate
Certificates	CE/FCC/RoHS

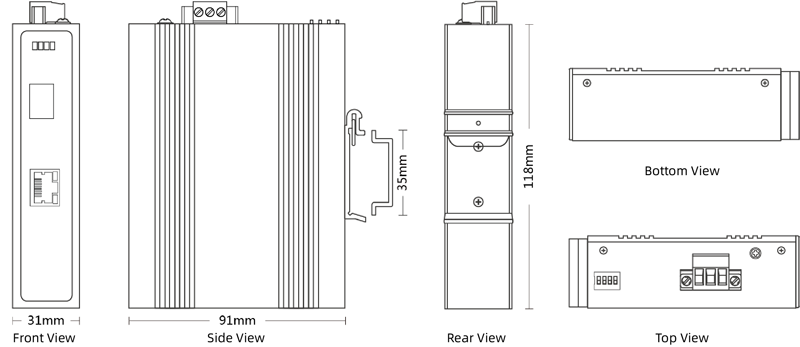

Dimension

Dimension of Industrial Unmanaged Media Converter 1x1000Base-X, 1x10/100/1000Base-T

Date	Version	Description			Download
2025-03-12		Industrial Unmanaged Media Converter 1x1000Base-X, 1x10/100/1000Base-T
