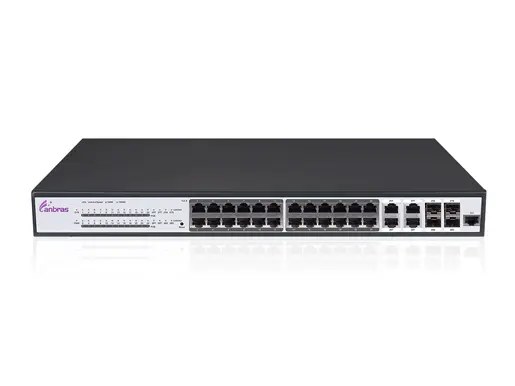

Managed Ethernet Switch with 24×GE PoE ports, 4 GE TX/SFP Combo Ports

Name: Managed Ethernet Switch with 24×GE PoE ports, 4 GE TX/SFP Combo Ports
Brand: Lanao Communication Technology Limited.
Availability: InStock

CSL2R-04C24GP-B

CSL2R-04C24GP-B is a next-generation intelligent Layer 2 PoE access switch for carrier IP MAN and enterprise networks, offering high-performance Gigabit switching, reliable PoE power, advanced L2 management, secure network access, and SMB connectivity.

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

CSL2R-04C24GP-B is a new-generation intelligent PoE access switch designed for carrier's IP MAN and enterprise networks. Based on the new-generation high-performance hardware and platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.

PART NO	CSL2R-04C24GP-B
	24×GE PoE ports, 4xGE TX/SFP combo ports
Console	1 RJ45 port, 1 RST button
Backplane	56 Gbps
Forwarding rate	42 Mpps
PoE power budget	370W
Total output BTU (1000BTU/H=293W)	1365.19
Fan number	2
Noise@25°C(dBA)	37.5
MTBF(H)	>50,000
Forwarding mode	Store-forward
Flash (MB)	16
DRAM (MB)	128
MAC	8K
Buffer size (MB)	4.1
Jumbo frame	9K
Total SVI	10
Power supply	AC:100V-240V, 50/60Hz, 400W
Power consumption
No-load	<17W
Full-load	393.5W
Chassis
Dimensions (W x D x H) (mm)	44021044
Weight (KG)(empty)	3
Package
Dimensions (W x D x H) (mm)	55529588
Weight (KG)	4.1

Ordering Information
CSL2R-04C24GP-B	Ethernet PoE switch with 28GE ports (1 console port, 24 GE PoE ports, 4 GE TX/SFP combo ports, 1 standard AC220V power supply, 400W, the cooling fan, 1U, standard 19-inch rack-mounted installation)

Date	Version	Description			Download
2025-03-10		Datasheet_CSL2R-04C24GP-B
