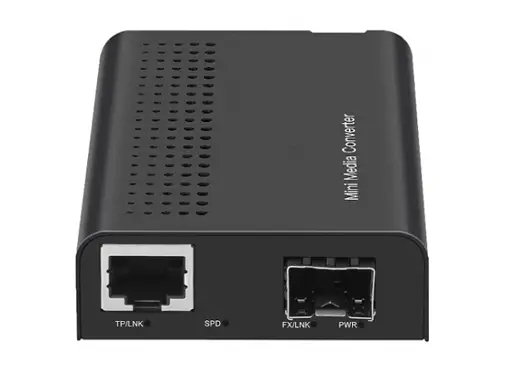

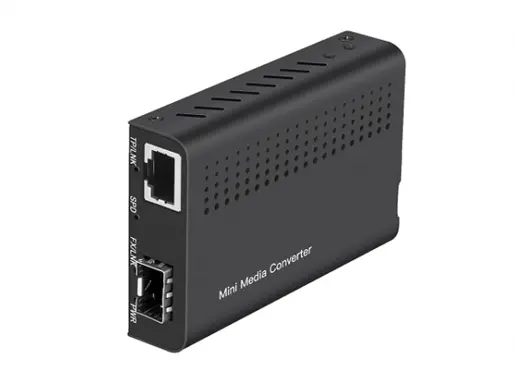

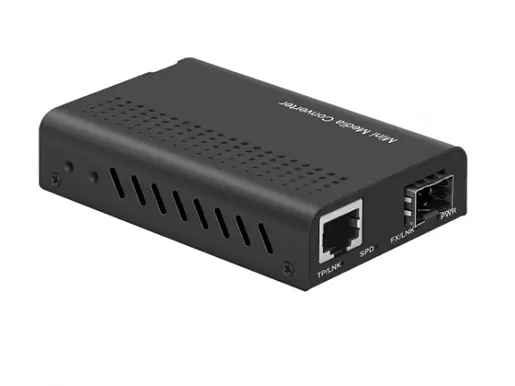

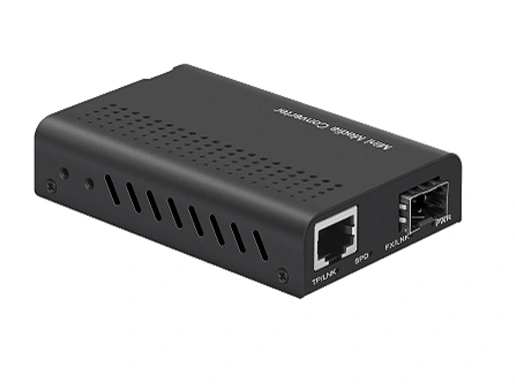

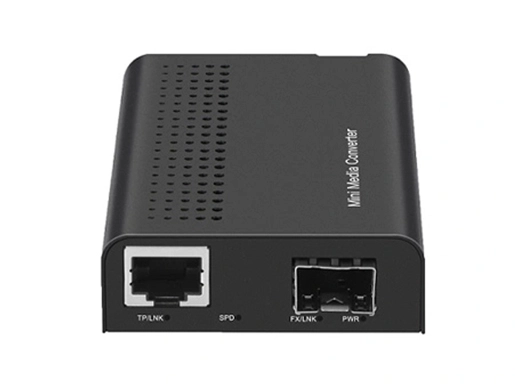

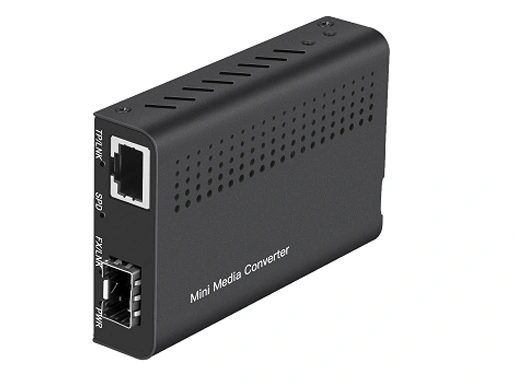

Miniature 10Gbps Media Converter

Name: Miniature 10Gbps Media Converter
Brand: Lanao Communication Technology Limited.
Availability: InStock

LA-MC2N-10G0101

High-performance optical networking device using Optical-Electrical-Electrical (OEO) conversion, enabling signal amplification, clock recovery, and optical regeneration for improved transmission quality, stability, and long-distance fiber communication.

GET A QUOTE

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-MC2N-10G0101 is high-performance 10G optical media converter, using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium ampliﬁcation, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a singlefiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

PART NO	LA-MC2N-10G0101
Transmission Distance	RJ45, Twisted-pa 100Meter standard CAT5/CAT5e cable
Transmission Distance	SFP, Distance depend on plug-in Fiber Transceiver Fiber: MM 500m/2km, SM 20/40/60/80/120km
Transmission Speed	10Gb/s
Protocols	IEEE802.3an (10Gbase-T) IEEE802.3ae (10Gbase-SR/LR/ER/ZR)
Access Type	10G LAN
Interface Type	RJ45 to / from SFP+
Pass Through Mode	10KBytes
DIP Switches	Optional
Maximum Packet Forwarding Rate	14,880,950/S
	Operating Temperature: 0℃~50℃ Storage Temperature: -10℃~70℃
Environmental Requirement	Relative Humidity: 5%~90% (Non-condensation) MTBF: 50,000h
	Enclosure: Metal
Power Supply	DC: 5V~12V, 1/0.24A
Specifications and Dimensions	Power Consumption: Full-load<5W
	Power consumption≤2W (without module)
Mechanical Structure	Dimensions: 95mm(D)×60mm(W)×20mm(H) Weight: 120g
Warranty	1 Year
Emissions	FCC Class A, CE Class A

Ordering Information
LA-MC2N-10G0101	DESCRIPTION: Miniature 10G Media Converter

Date	Version	Description			Download
2025-03-14		LA-MC2N-10G0101
