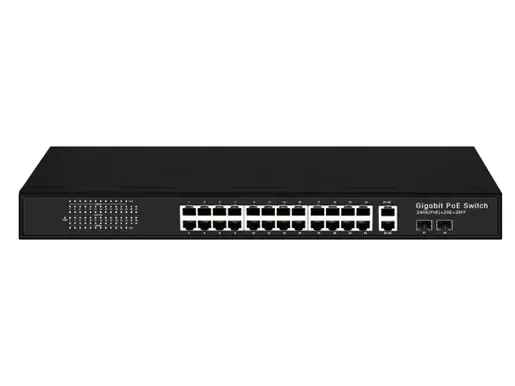

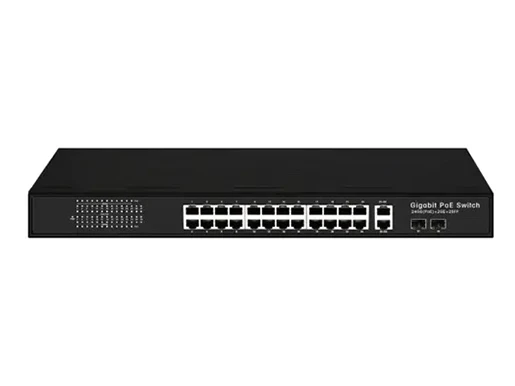

Name: Unmanaged 24GE PoE + 2GE RJ45 +2GE SFP Switch
Brand: Lanao Communication Technology Limited.
Availability: InStock

Unmanaged 24GE PoE + 2GE RJ45 +2GE SFP Switch

LA-SW-G020224PB-S300w

28-Port Gigabit PoE switch with high-speed network IC and stable PoE chipset, compliant with IEEE 802.3af/at standards, delivering reliable power over Ethernet, seamless data transmission, and efficient, secure network performance for IP cameras, wireless access points, and enterprise applications.

Overview

Specifications

Connectivity Solutions

Models

Resources

28-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip, The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

24Gigabit PoE Ports + 2 Gigabit RJ45 Ports + 2

Gigabit SFP Ports Uplink;

Comply with IEEE 802.3, IEEE 802.3u,

IEEE802.3ab, IEEE802.3z standards;

Port 1-2 support BT90W;

Ethernet port 10/100/1000M rate auto adaptive;

Support Port Auto-flip (Auto MDI/MDIX).

Model No.	LA-SW-G020224PB-S300w
Product Name	Unmanaged 28 Ports Full Gigabit PoE Switch
	2410/100/1000Base-TX PoE port（Data/Power） 210/100/1000Base-TX uplink RJ45 port (Data)
Fixed Port	2*1000M SFP
	1-2 ports support IEEE802.3af/at/poe++/bt, max. 90W PoE out 3-24 ports support IEEE802.3af/at, max. 30W/port, PoE out
PoE Ports
PoE Pin	af/at: 12+ 36-; af/at/poe++/bt: 12+ 45+ 36- 78-
PoE Budget	Max. 300W
Bandwidth	56Gbps
Packet Forwarding	41.67Mpps
MAC	8K
Buffer	4M
	10BASE-T: Cat3, 4, 5 UTP (≤250 meters)
	100BASE-TX: Cat5 or later UTP (150 meters) 1000BASE-TX: Cat6 or later UTP (150 meters)
Transmission Distance	SFP: 1000M single and multimode optical module with maximum distance ≤ 120km
	POWER: Power LED
	19-20: SFP connection indicator
LED Indicator	Uplink: 10/100M=Green Link, 1000M=Orange Link Downlink: 10/100M=Green Link, 1000M=Orange Link
Power	Built-in power AC: 100-240VAC, 50-60Hz, 3.9A, Max. 320W
Operating Temperature/Humidity	-10～+55°C; 5%～90% RH Non-condensation
Storage Temperature/Humidity	-40～+75°C; 5%～95% RH Non-condensation
Product/Packing Size (LWH)	440mm220mm45mm /515mm300mm95mm
N.W/G. W (kg)	2.9kgs/3.6kgs
Package	527400490mm/22.03KGs/6PCs
Lightning Protection Level	6KV 8/20us; IP30
Installation	Rack-mount
Certificate	CE-EMC EN55032; CE-LVD EN62368; FCC Part 15 Class B; RoHS
Warranty	1 year

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
