Name: Industrial Ethernet Switch 2x1000Base-X, 8x10/100/1000Base-T (PoE Optional)
Brand: Lanao Communication Technology Limited.
Availability: InStock

Industrial Ethernet Switch 2x1000Base-X, 8x10/100/1000Base-T (PoE Optional)

IDSAIM-02S08G-Z6

This device is a 2×1000Base-X and 8×10/100/1000Base-X industrial Ethernet switch, featuring a fanless heat dissipation design for stable, reliable, and efficient industrial network performance.

Overview

Specifications

Connectivity Solutions

Models

Resources

This device is 2*1000Base-X & 8*10/100/1000Base-X Industrial Ethernet Switch. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.

It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

PART NO	IDSAIM-02S08G-Z6
Provider Mode Ports
Fixed Port	21000 Base-X, 810/100/1000Base-T

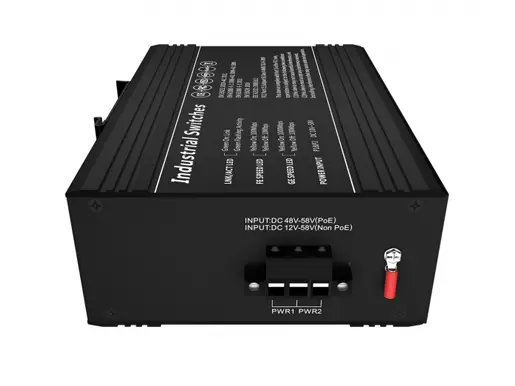

Power Interface	Phoenix terminal, redundant dual power supply

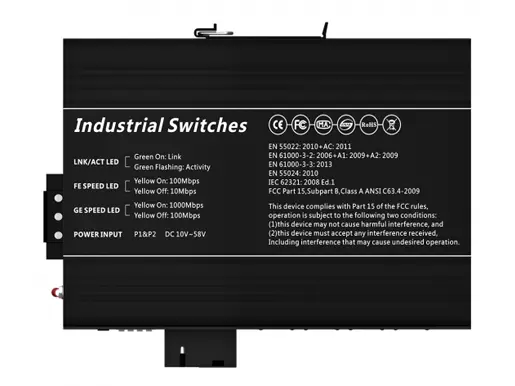

LED Indicators	PWR, OPT, NMC, ALM

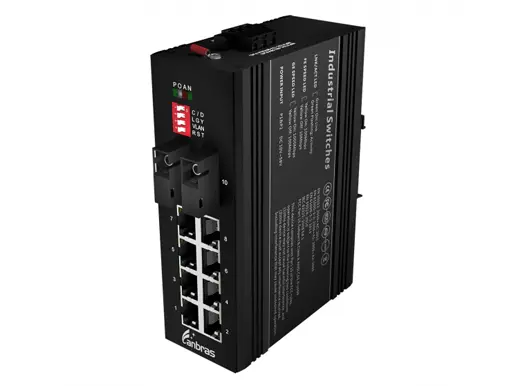

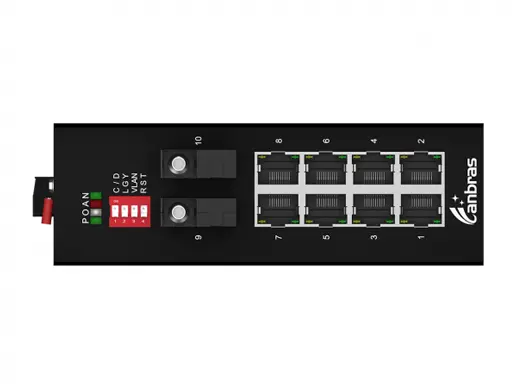

DIP Switch
1 C/D	Remote PD Reset
2 LGY	Stand/Non-standard PoE Mode
3 VLAN	Port Isolation
4 RST	Reset
Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Ring Topology	Unsupported
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	DC12-58V
Total Power Consumption	<6W
Voltage Alarm	Support
Layer 2 Switching
Switching Capacity	26G
Packet Forwarding Rate	19.34Mpps
MAC Address Table	16K
VLAN	Unsupported
Buffer	2M
Forwarding Delay	<5us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	10K bytes
Watch Dog	Support
Port Isolation	Support
Environment
Operating Temperature	-40℃~+75℃
Operating Temperature	The device is tested for 4 hours at temperatures in 85℃
Storage Temperature	-40℃~85℃
Relative Humidity	5%~95% （non-condensing）
Thermal Methods	Fanless, natural cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size	143X104X48mm (W×H×D)

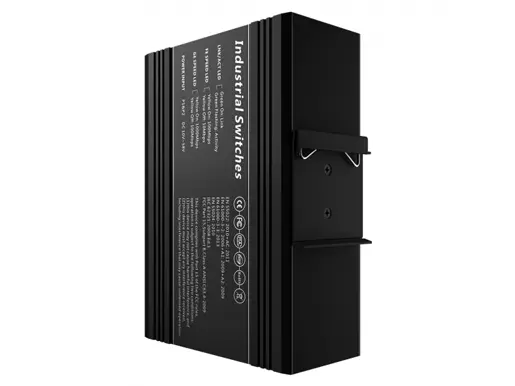

Installation Method	DIN-rail
Weight	0.5KG around
EMC & Ingress Protection
IP Level	IP40
Surge Protection of Power	IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us)
Surge Protection of Ethernet Port	IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us)
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3 （10V）
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free Fall	0.5m
Authentication
Authentication	CCC/CE/FCC/RoHS

Ordering Information
IDSAIM-02S08G-Z6	21000Mbps SFP Port, 810/100/1000Mbps RJ45 Port

Date	Version	Description	Download
2025-03-12		LA-IS6N-G0208
2025-03-12		21000Base-X, 810/100/1000Base-T Unmanaged Industrial Switch (PoE Optional)
