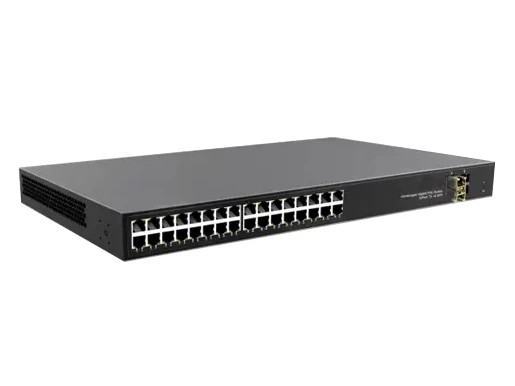

Name: Unmanaged Gigabit 32Port PoE Switch, 32 x 10/100/1000Mbps RJ45 + 4 x Gigabit SFP
Brand: Lanao Communication Technology Limited.
Availability: InStock

Unmanaged Gigabit 32Port PoE Switch, 32 x 10/100/1000Mbps RJ45 + 4 x Gigabit SFP

LA-SW-G0432P

Unmanaged 32-Port Gigabit PoE switch with 32x 10/100/1000Mbps RJ45 ports and 4x Gigabit SFP uplink ports, supporting IEEE 802.3af/at PoE, delivering reliable power, high-speed data transmission, and stable networking for IP cameras, access points, and enterprise applications.

Overview

Specifications

Connectivity Solutions

Models

Resources

LA-SW-G0432P series is an unmanaged switch (supporting PoE function). It has 32 10/100/1000Mbps adaptive RJ45 ports and 4 SFP Gigabit optical ports (Optional with 2Combo TX/SFP). Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Ports 1-32 can support PoE power supply, compliant with the IEEE802.3af/at standard, and can be used as a power-over-Ethernet device. It can automatically detect and identify the power-receiving device that meets the standard and power up via a network cable. Using store-and-forward mode, combined with QoS technology, to ensure that the bandwidth is effectively allocated to each port. It provides stable and reliable power and data transmission for high-power APs, network cameras, PTZ network dome cameras, PoE lighting and other security monitoring equipment.

PART NO	LA-SW-G0432P
Provider Mode Ports
Fixed Port	3210/100/1000 Base－T + Uplink 41000 Base-X
Fixed Port	(Optional 2Combo TX/SFP)
Management Port	Support console
Power Interface	220V/AC Interface
LED Indicators	PWR，SYS，Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair	Non PoE: 0-100m (CAT5e, CAT6)
	PoE (1000Mbps): 0-100m (CAT5e, CAT6)
	PoE (10Mbps): 0-250m (CAT5e, CAT6)
Mono-mode Optical Fiber	20/40/60/80/100KM
Multi-mode Optical Fiber	550m
Network Topology
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Electrical Specifications
Input Voltage	AC 100-240V 50/60Hz
Total Power Consumption	Non PoE full load ＜40W
Total Power Consumption	PoE full load ＜440W
PoE Support (Optional)
PoE Port	1-32
PoE Protocol	802.3af，802.3at
Pin Assignment	1,2+；3,6-
PoE Management	Support
Layer 2 Switching
Switching Capacity	72G
Packet Forwarding Rate	53.568 Mpps
MAC Address Table	16K
Buffer	12M
Forwarding Delay	<10us
MDX/MIDX	Support
Flow Control	Support
Jumbo Frame	Support 10Kbytes
Port Mirroring	Support
Storm Control	Support
Environment
Operating temperature	POE: -25℃~+60℃
Operating temperature	Non POE: -25℃~+70℃
Storage temperature	-40℃~+70℃
Relative humidity	5%~95% non-condensing
Thermal methods	Non PoE：fanless design, natural heat dissipation
Thermal methods	PoE：natural cooling by fan
MTBF	100,000 hours
Environment
Operating Temperature	POE: -25℃~+60℃
Operating Temperature	Non POE: -25℃~+70℃
Storage Temperature	-40℃~+70℃
Relative Humidity	5%~95% non-condensing
Thermal Methods	Non PoE: Fanless design, natural heat dissipation
Thermal Methods	PoE: forced cooling by fan
MTBF	100,000h
Mechanical Dimensions
Product Size	44029044mm
Installation Method	Rack mount
Weight	Non PoE: 3.3kg
Weight	PoE: 4.0kg
EMC & Ingress Protection
Surge Protection of Power	Common mode 6KV, differential mode 6KV
Surge Protection of Ethernet Port	Common mode 4KV
ESD	Contact 8K, air 15K
Free Fall	0.5m
Accessories
Accessories	Equipment, power cord, certificate, user manual, dust plug

Ordering Information
PART NO	DESCRIPTION
LA-SW-G0432	Unmanaged Ethernet Switch, 32 x 10/100/1000 Base-T RJ45 Uplink 4 x 1000 Base-X SFP (Optional with 2Combo TX/SFP) AC100-240V 50/60Hz
LA-SW-G0432P	Unmanaged PoE Ethernet Switch, 32 x 10/100/1000 Base-T RJ45 with PoE Uplink 4 x 1000 Base-X SFP (Optional with 2Combo TX/SFP) AC100-240V 50/60Hz

Date	Version	Description			Download
2025-03-13		LA-SW-G0432P
