Name: IP55 Outdoor Box, with Unmanaged Industrial Switch 1x1000 Base-X, 4x10/100/1000 Base-T PoE
Brand: Lanao Communication Technology Limited.
Availability: InStock

IP55 Outdoor Box, with Unmanaged Industrial Switch 1x1000 Base-X, 4x10/100/1000 Base-T PoE

OSBAIM-01S04GP-Z

OSBAIM-01S04GP-Z outdoor PoE switch box features 1×1000Base-X and 4×Gigabit PoE ports, unmanaged industrial design, IP55 protection, compact size, temperature resistance, lightning protection, ideal for outdoor surveillance and industrial networks.

Overview

Specifications

Connectivity Solutions

Models

Resources

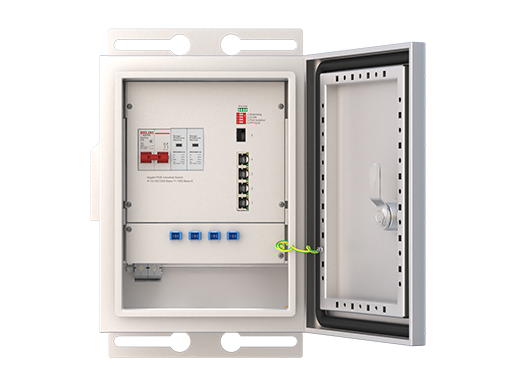

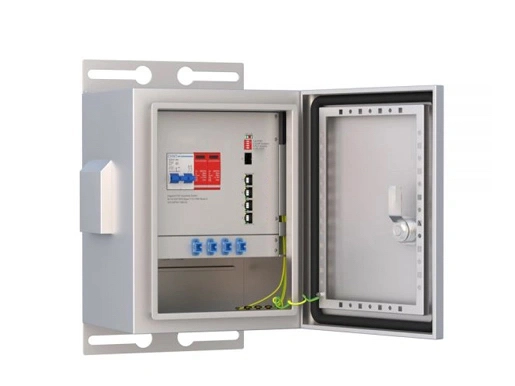

OSBAIM-01S04GP-Z Outdoor PoE Switch Box embedded with 1x1000Base-X, 4x10/100/1000 Base-T Unmanaged Industrial PoE Switch, it is miniature size with IP55 high protection level. The box provides excellent industrial quality with high/low temperature resistance and lightning protection, which enhances the reliability and safety of networks.

lt can meet the deployment requirements of rail transit, safe city, intelligent transportation, video surveillance and other applications.

Features

Integrated Unmanaged Industrial PoE Switch, 1x1000Base-X, 4x10/100/1000Base-T
Shell: IP55 Waterproof Case
Cooling: Auto Fans Cooling
Working Temp: -40°C~+75°C
Box Internal Power: 150w (for PoE Switch)
Optical Fiber Tray
Surge Protector
Air Breaker

Cabinet
Material	High-quality galvanized sheet, thickness 1.2mm Box mounting ears thickness 1.5mm
Weight	Net weight: 8KG, Gross weight: 9KG
Lock	Triangle lock
Door	The door has built-in waterproof rubber strips and built-in reinforcing ribs
Bottom Part	The diameter of the cable entry hole at the bottom of the box is 50mm, and there is air inlet hole at bottom of the box (Insert-proof net welded inside)
Fan	AC 220V with temperature control, 3000±10% RFM, air volume 90CFM, 929225mm, line length 300mm
Optical Fiber	4-port SC fiber flange, with 8-core fiber box
Air Breaker	It has short-circuited protection, overload protection and isolation function and has thermal-magnetic tripping characteristics C-shaped curve(5ln-10ln)
Installation	Pole / Wall installation
Switch
Fixed Port	1x1000 Base-X, 4x10/100/1000 Base-T
LED Indicators	PWR, OPT, NMC, ALM
Power Interface	AC Input
DIP Switch
1	LFP/ Remote PD Reset
2	LEGACY (Standard & Non-standard PoE)
3	Port Isolation
4	Storm Control Configuration
Cable Type & Transmission Distance
Twisted-Pair	0-100m(CAT5e,CAT6）
Single-Mode Optical Fiber	20/40/60/80/100KM
Multimode Optical Fiber	550m
Network Topology
Star Topology	Support
Bus Topology	Support
Tree Topology	Support
Hybrid Topology	Support
Electrical Specifications
Input Voltage	AC100~240V, 50/60Hz
Total Power Consumption	< 125w (with PoE)
Voltage Alarm	Support
PoE Support
PoE Ports	1-4 Ports
Pin Assignment	1, 2, 3, 6
PoE Standard	802.3af, 802.3at (15w/30w)
Layer 2 Switching
Switching Capacity	14G
Packet Forwarding Rate	10.416Mpps
MAC Address Table	8K
Buffer	1M
Forwarding Delay	<5us
MDX/MIDX	Support
Jumbo Frame	Support 10KBytes
Watchdog	Support
Port Isolation	Support
Environment
Operating Temperature	-40°C~+75°C
Storage Temperature	-40°C~+85°C
Relative Humidity	5%~95% non-condensing
Thermal Methods	Auto Fans Cooling
MTBF	100,000 hours
Mechanical Dimensions
Product Size (D x W x H)	245x240x340mm
Installation Method	Wall / Pole Mounting
EMC & Ingress Protection
IP Level	IP55
Surge Protection of Power	IEC 61000-4-5 Level X (8KV/6KV）
Surge Protection of ETH Port	IEC 61000-4-5 Level X (8KV/6KV）
RS	IEC 61000-4-3 Level 3 (10V/m）
EFI	IEC 61000-4-4 Level 3 (1V/2V）
CS	IEC 61000-4-6 Level 3 (10V/m）
PFMF	IEC 61000-4-8 Level 4 (30A/m）
DIP	IEC 61000-4-11 Level 3 (10V）
ESD	IEC 61000-4-2 Level 4 (8K/15K）
Power Supply
Power Supply	DC52V, 2.88A/150W
Certification
Certificates	CE, FCC, RoHS
